6-PEN – Show Pro Pen Trailer
The Bar-M 6-PEN Show Pro Pen Trailer is designed for exhibitors who need a compact, versatile livestock trailer without sacrificing the comfort and convenience found in larger show trailers. Built specifically for pigs, sheep, goats, and other show livestock, the 6-PEN combines premium construction with a flexible pen layout that helps exhibitors stay organized and animals travel comfortably.
Constructed with an all-aluminum frame and durable Shelby flooring system, the 6-PEN is built to handle years of travel from the fairgrounds to major livestock exhibitions. The six-pen layout features a convertible pen system that can be configured to accommodate different livestock sizes and hauling needs. Each pen is equipped with a drop-down feed window, roof vent, and folding lower air space to promote ventilation and livestock comfort.
The spacious front tack area provides ample room for feed, supplies, and equipment while a convenient walk-through door allows easy access between the livestock area and tack room. Standard air conditioning, insulated walls and ceiling, LED lighting, and 110-volt outlets help create a comfortable environment for both livestock and exhibitors throughout long show weekends.
A rear loading ramp, escape door, torsion axles with brakes, aluminum wheels, and premium aluminum construction make the 6-PEN easy to load, easy to tow, and built to last. Whether you’re headed to a county fair, jackpot show, or state exhibition, the 6-PEN delivers the comfort, functionality, and durability serious exhibitors demand.
Key Features
- Six-pen livestock hauling system
- Convertible pen configuration
- Rear loading ramp
- Side escape door with feed window
- All-aluminum frame and construction
- Shelby flooring system
- Torsion axles with electric brakes

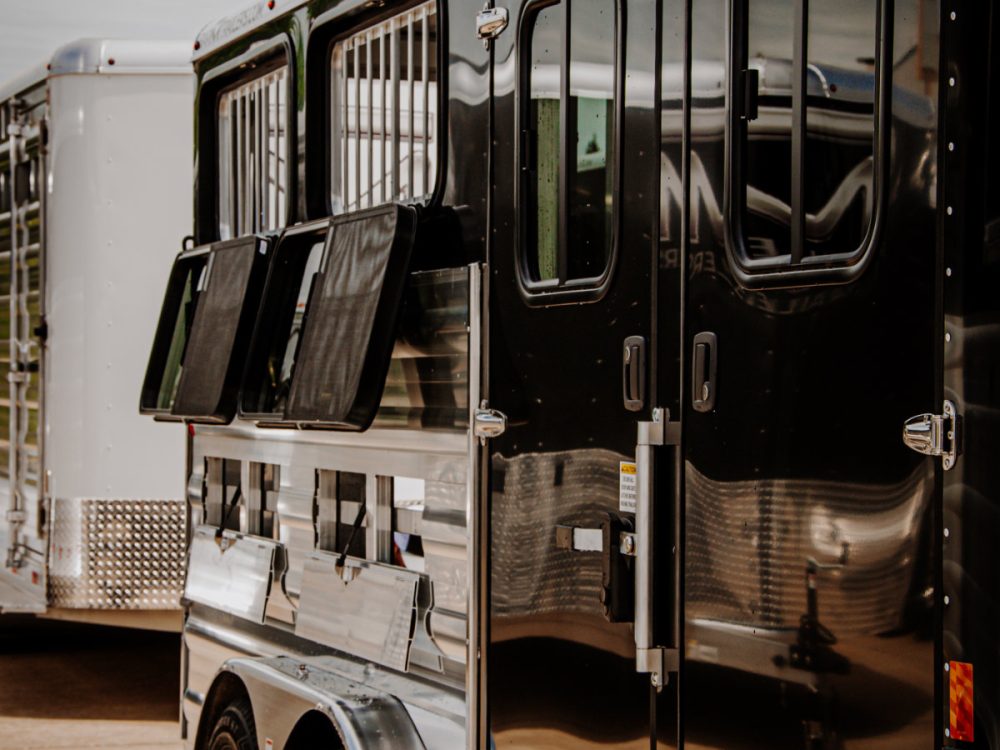

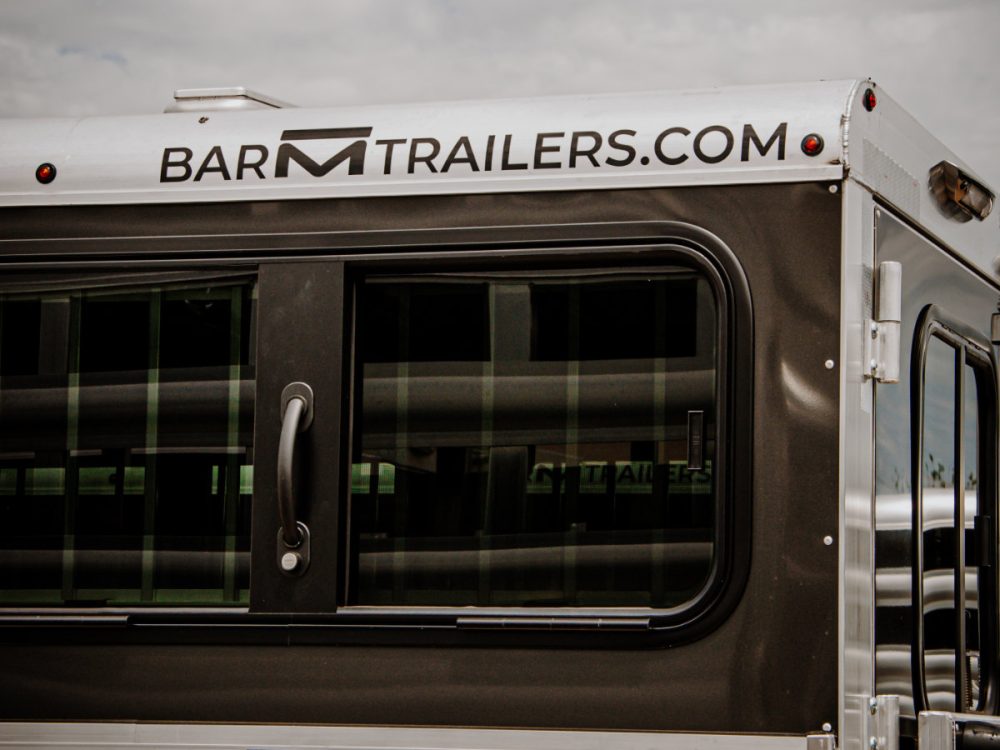

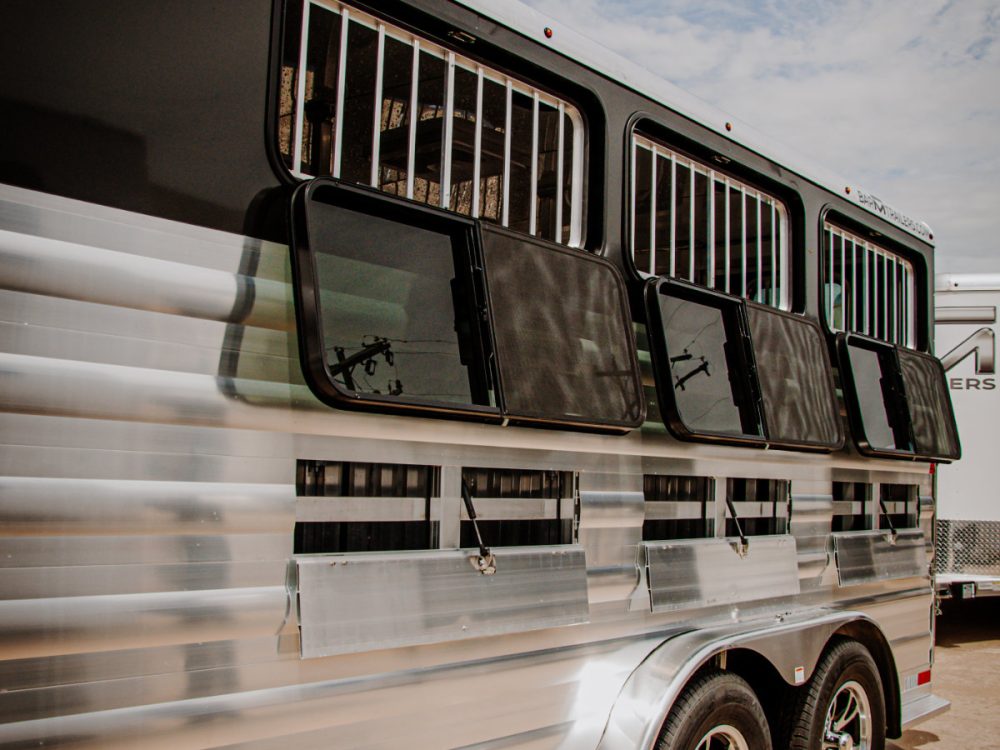

- Drop-down feed windows at every pen
- Individual roof vents for improved airflow
- Insulated roof and wall construction
- High-density poly wall liners
- 15,000 BTU air conditioner
- Walk-through door between livestock and tack areas
- LED interior and exterior lighting
- Multiple 110-volt outlets
- Spacious front tack and storage area
- Designed for pigs, sheep, goats, and show livestock
The 6-PEN Show Pro Trailer provides the perfect balance of capacity, comfort, and convenience for exhibitors who want a premium livestock trailer in a more compact and easy-to-tow package.
Floorplan

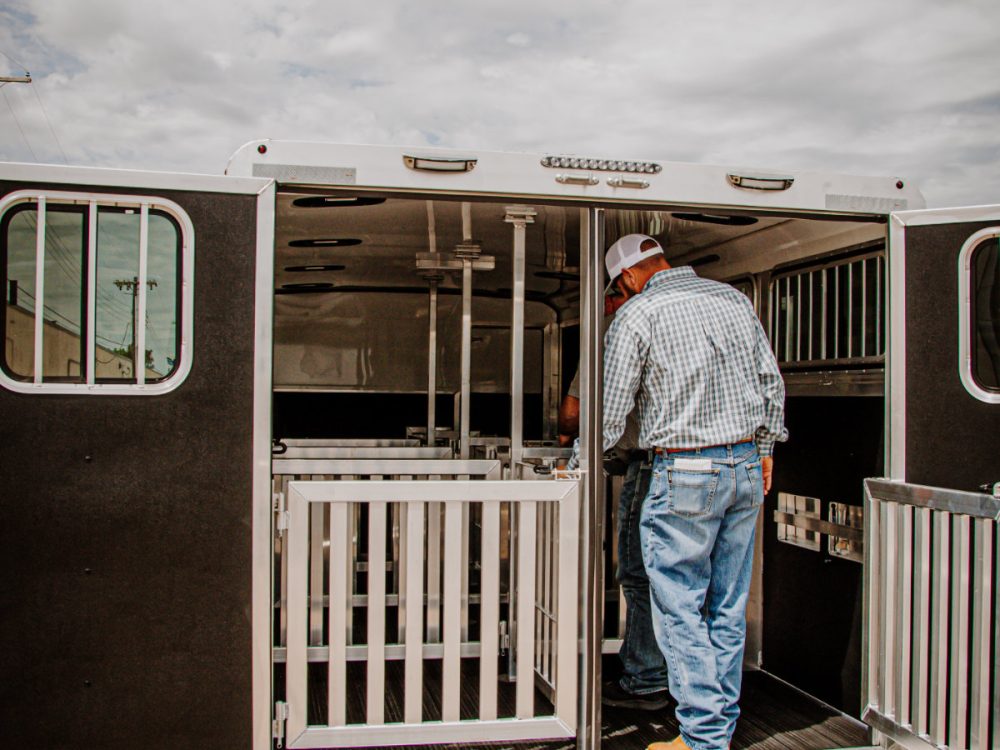

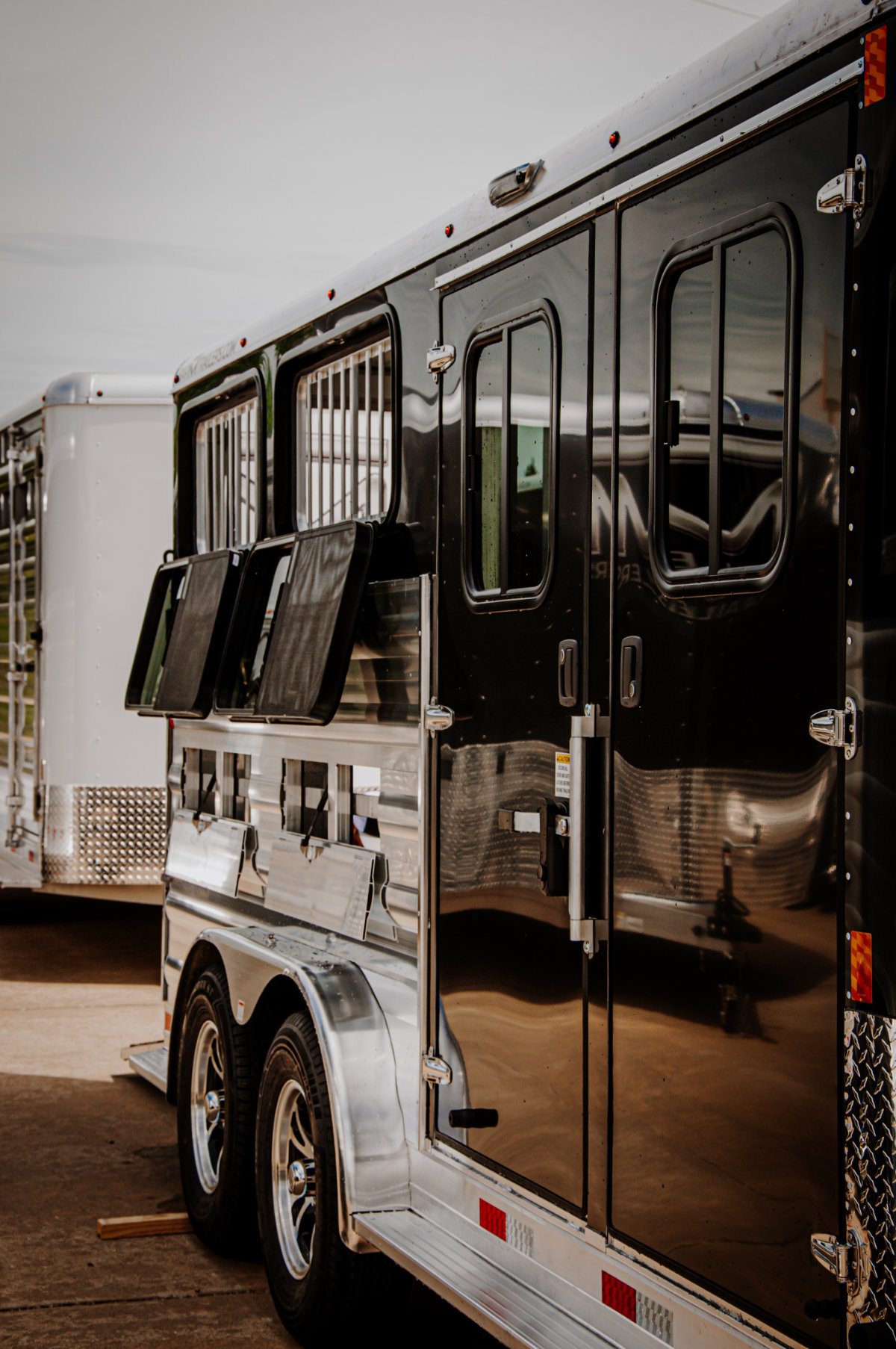

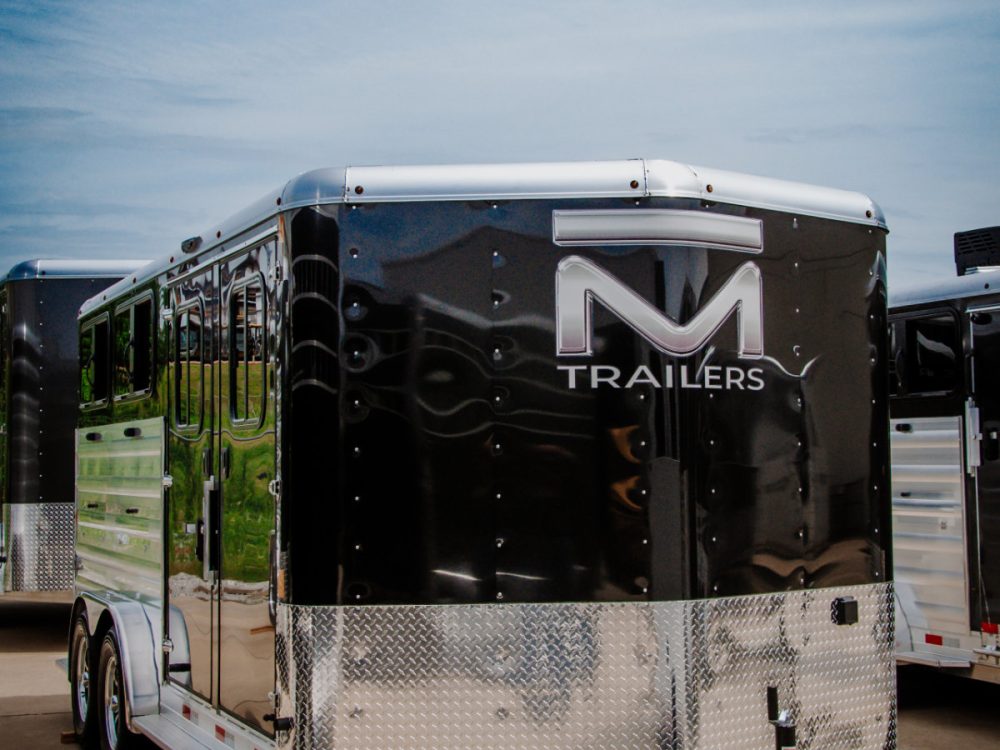

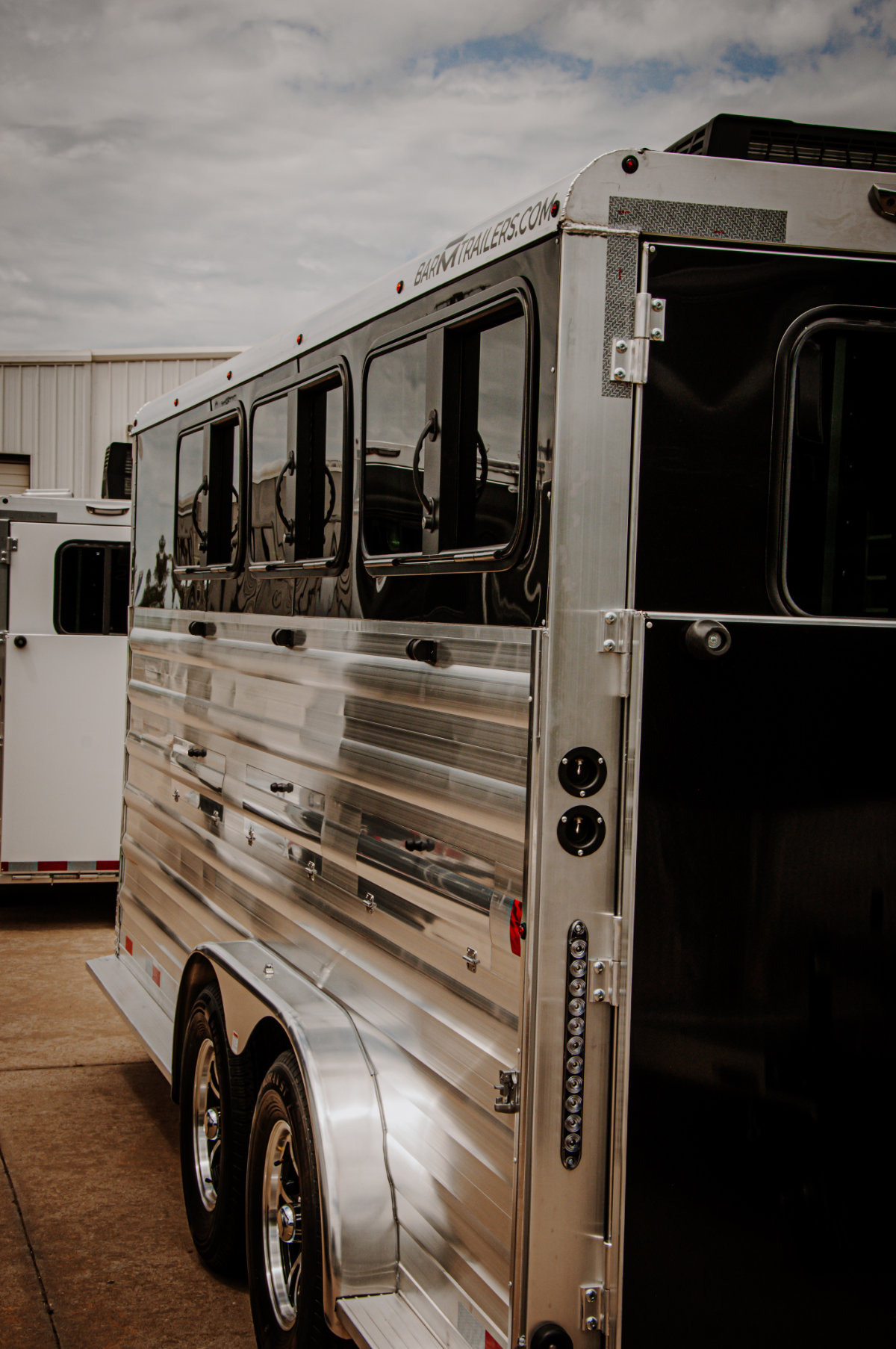

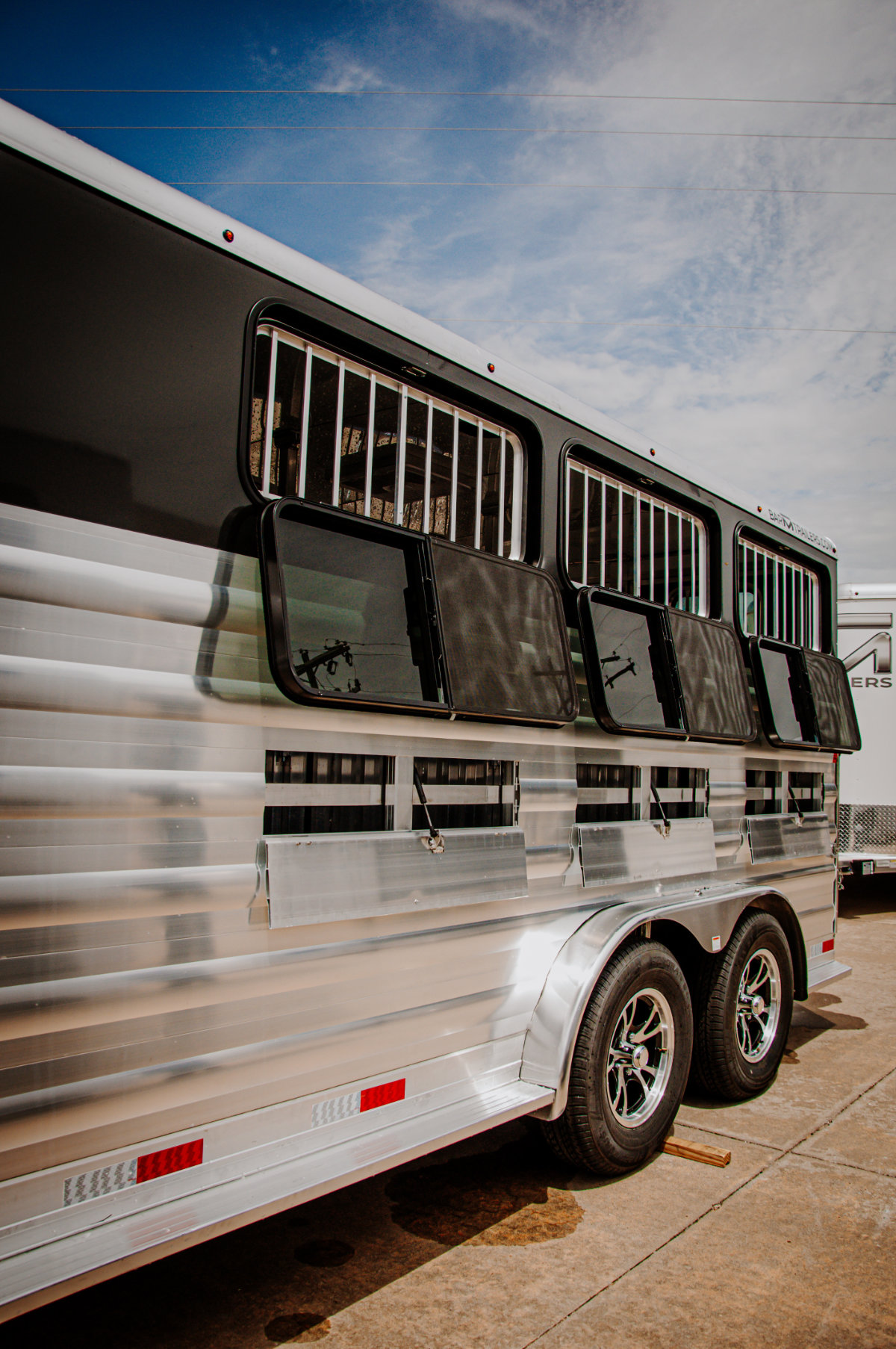

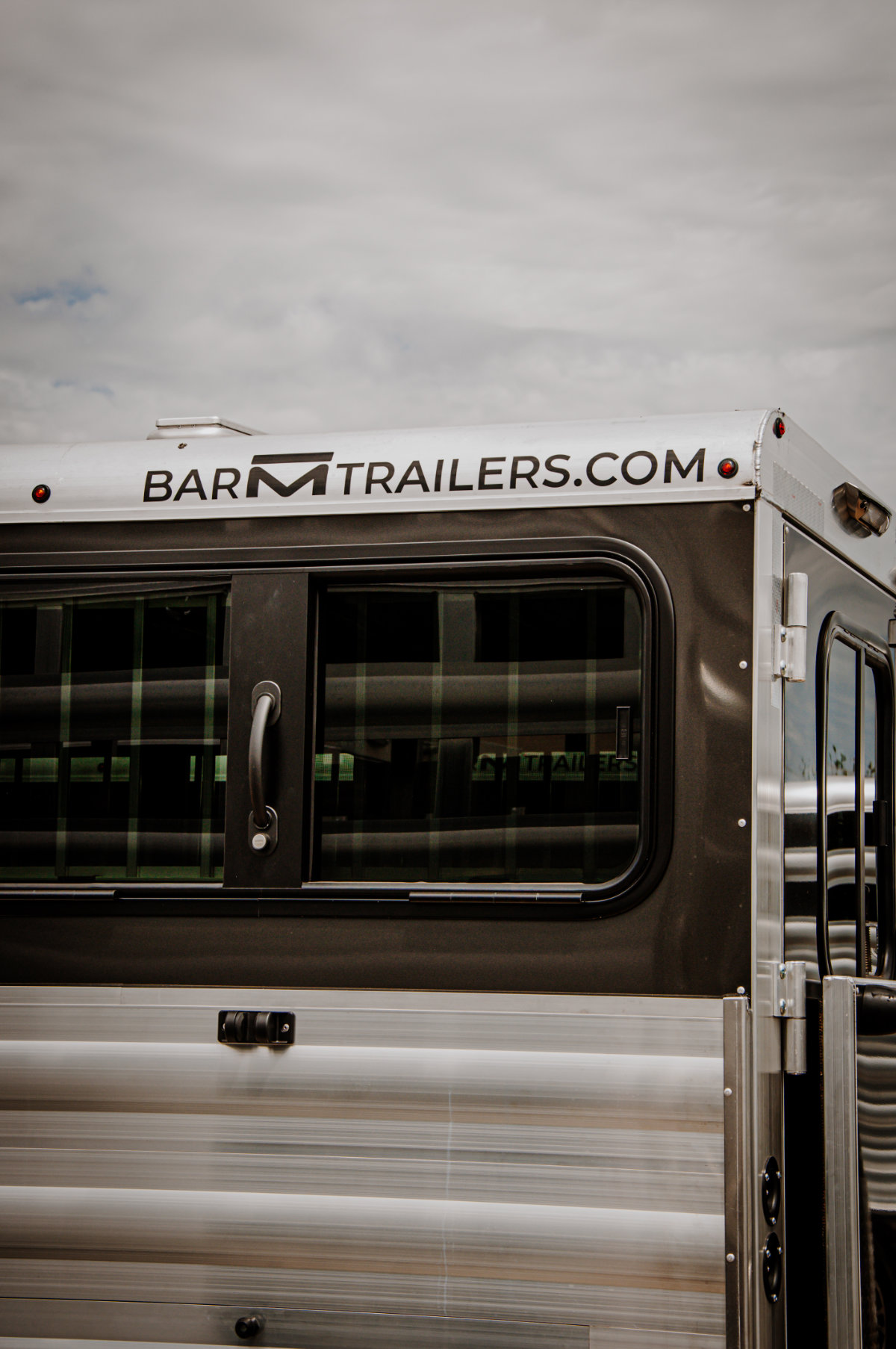

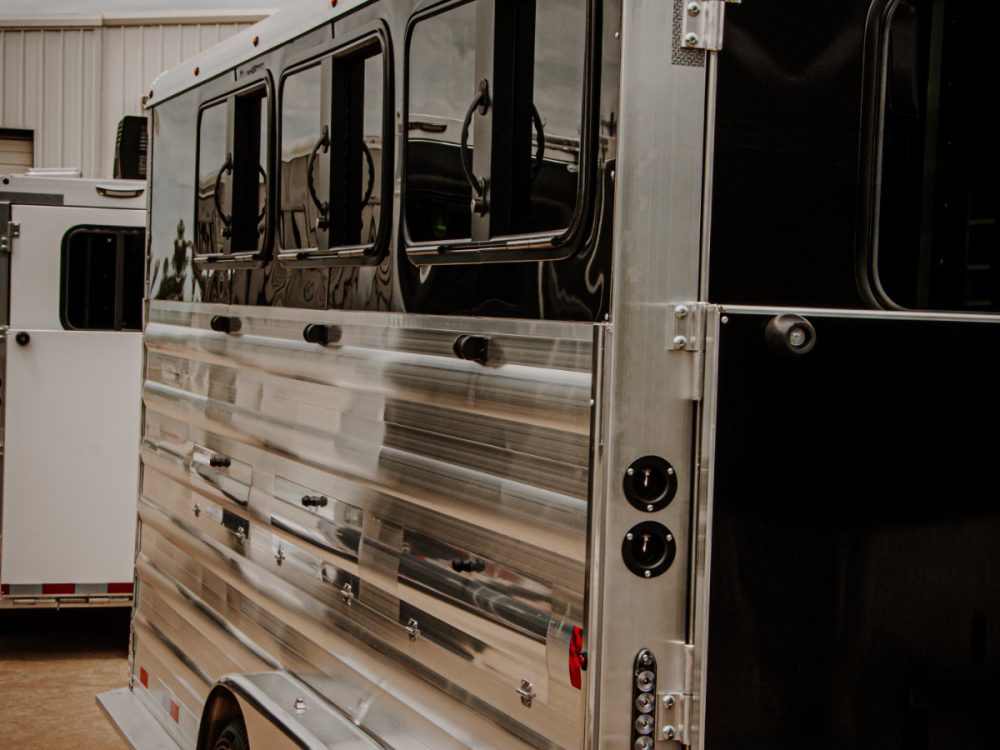

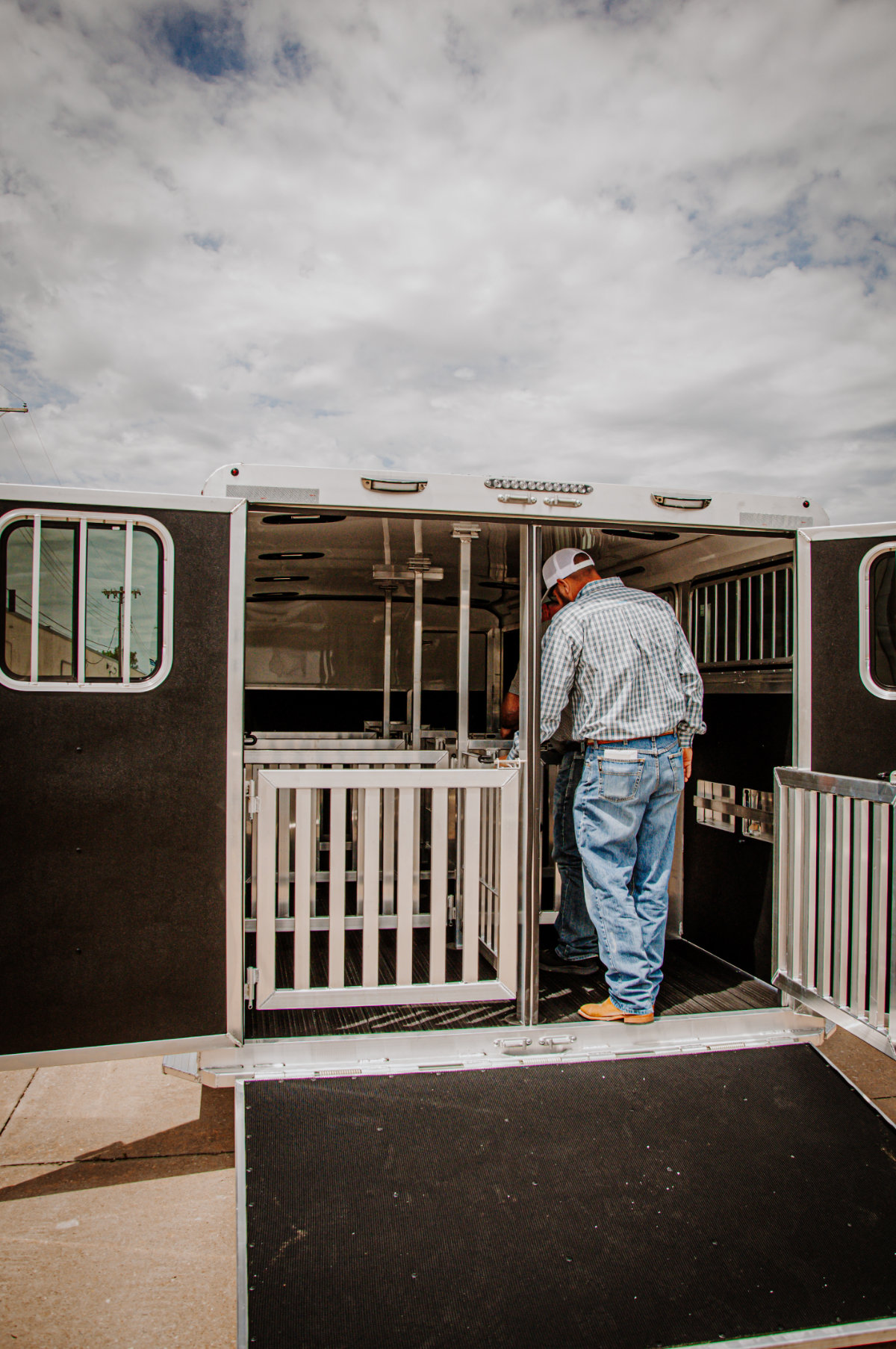

Photo Gallery

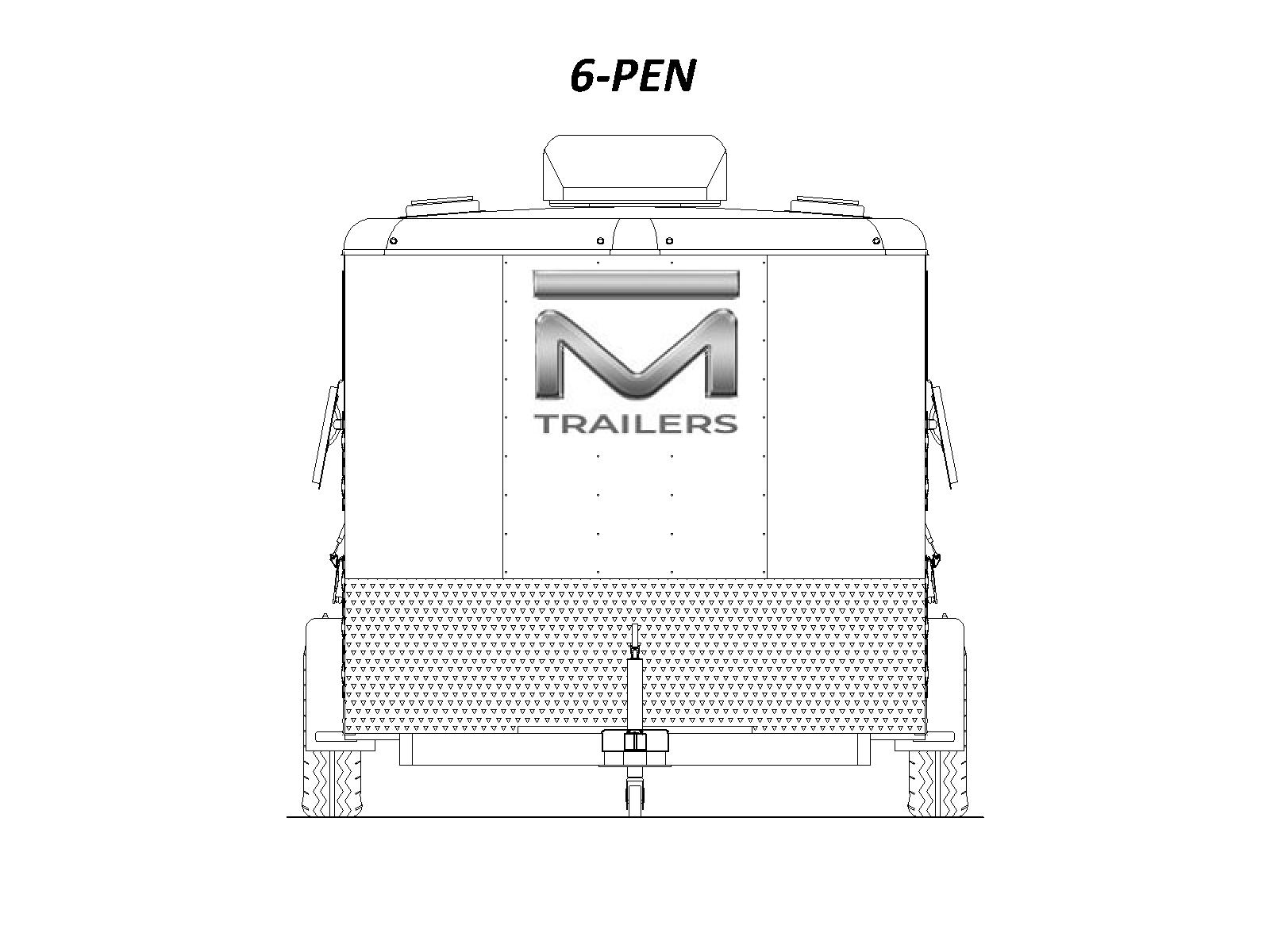

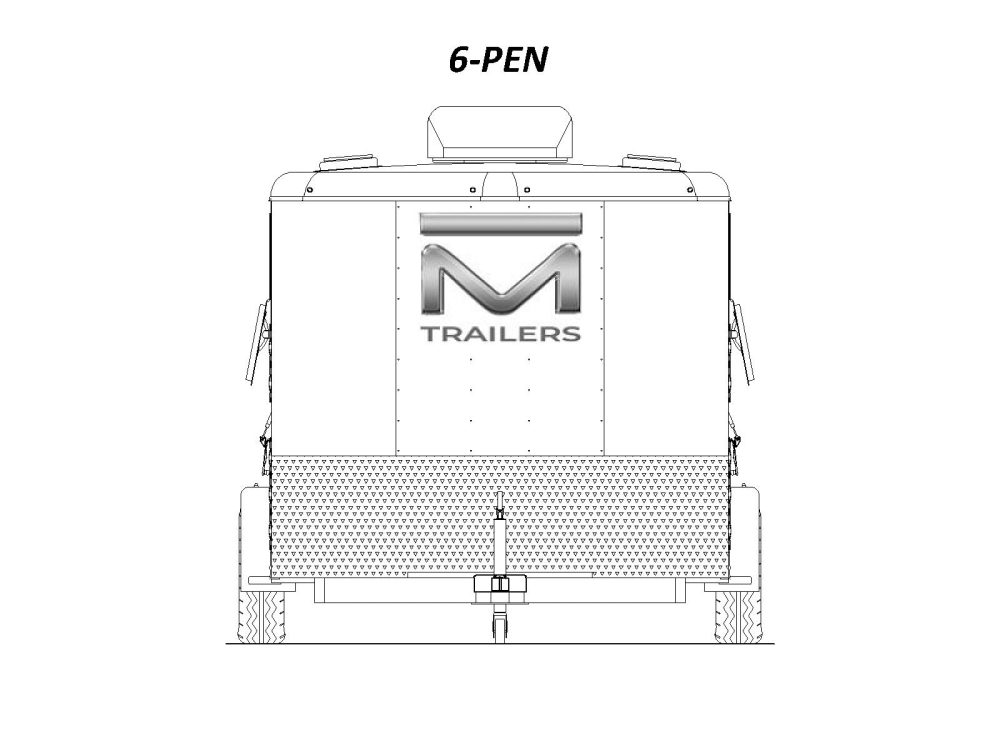

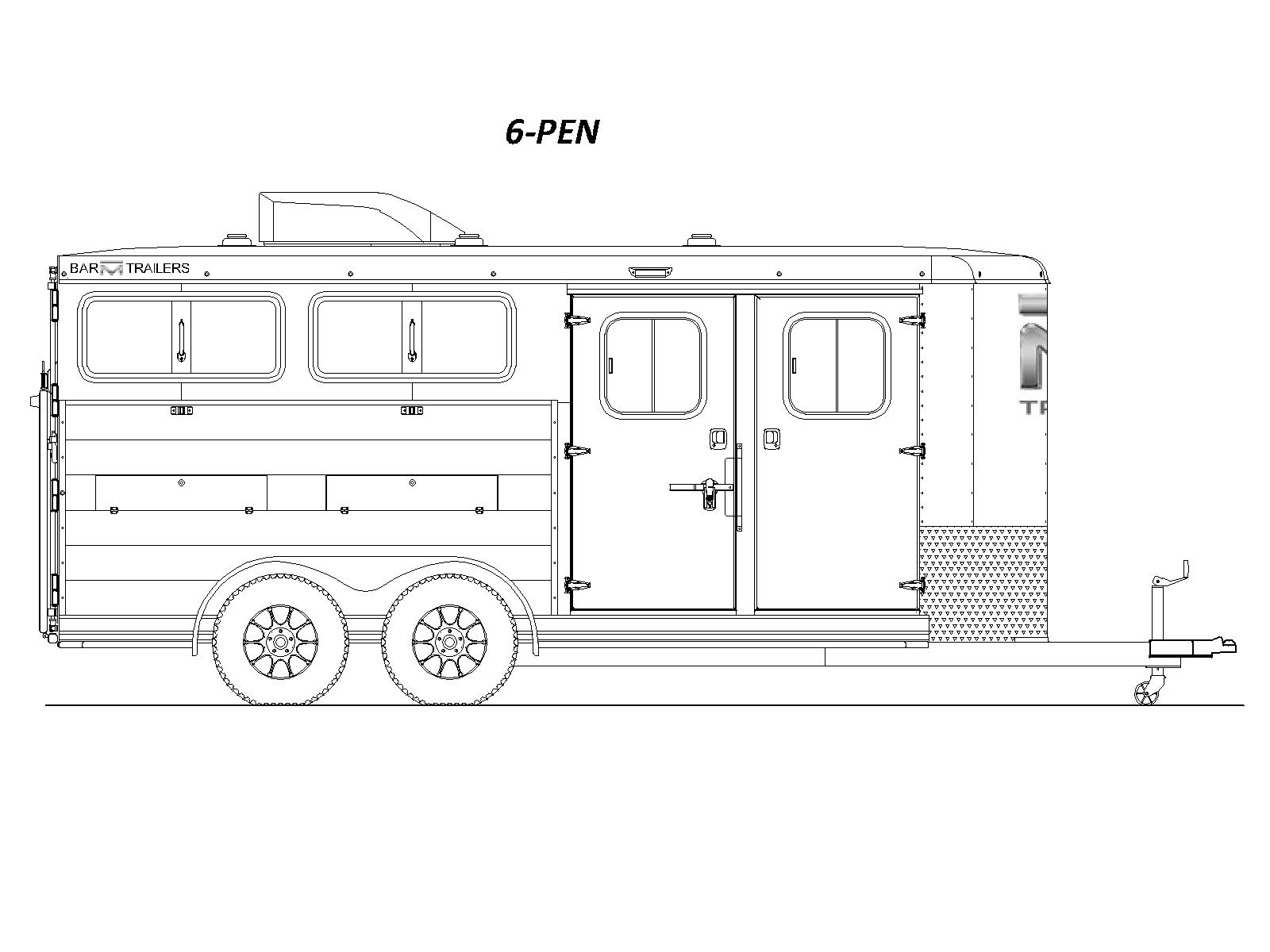

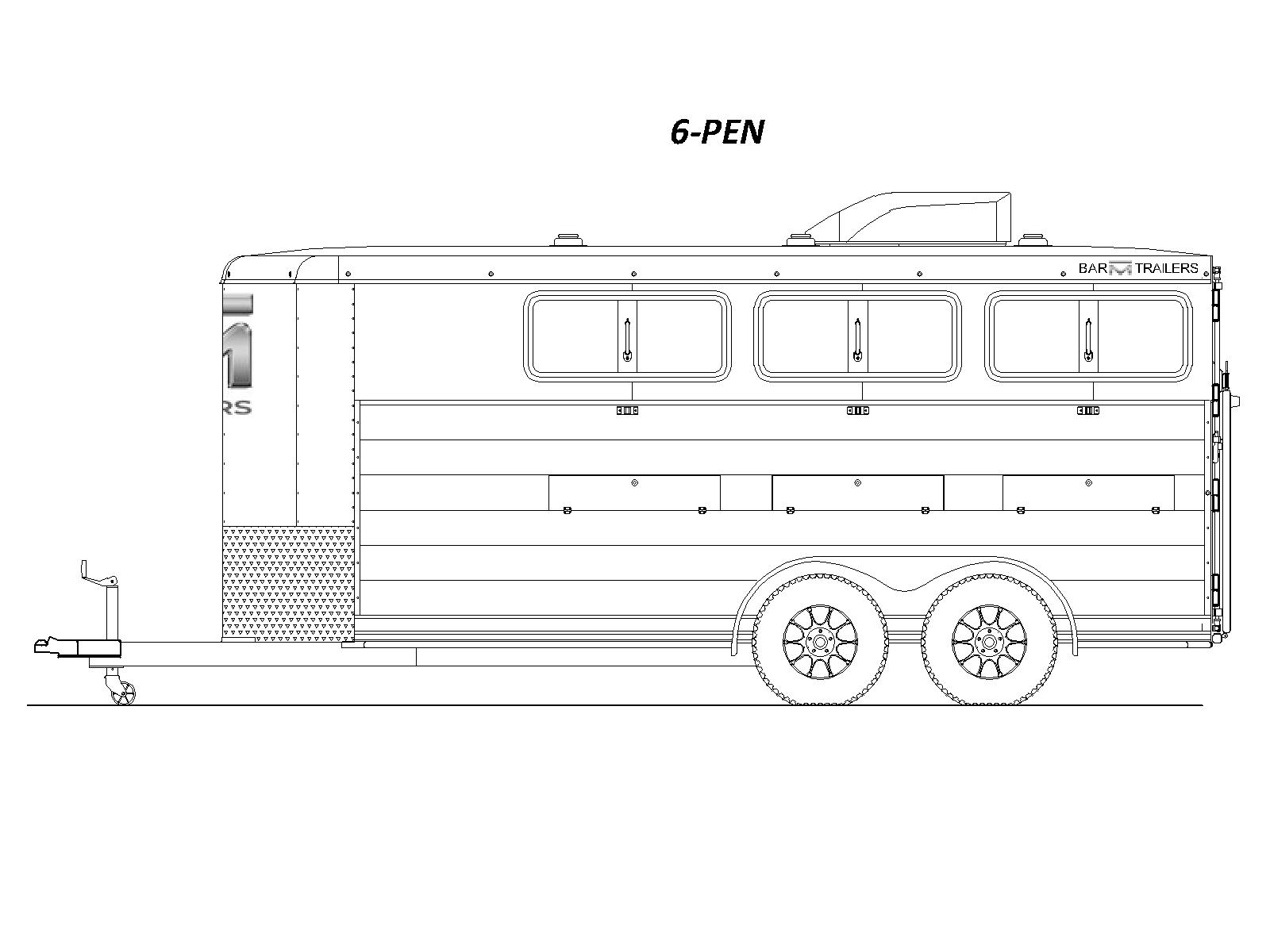

Spec Drawings
Standards
Frame and structure standards |
|---|
| Aluminum frame |
| "I" beam floor crossmembers typically on 12” centers |
| (1) Steel wheel with 15” load range E tire located in tack room |
| (4) aluminum wheels with 15” load range E tires |

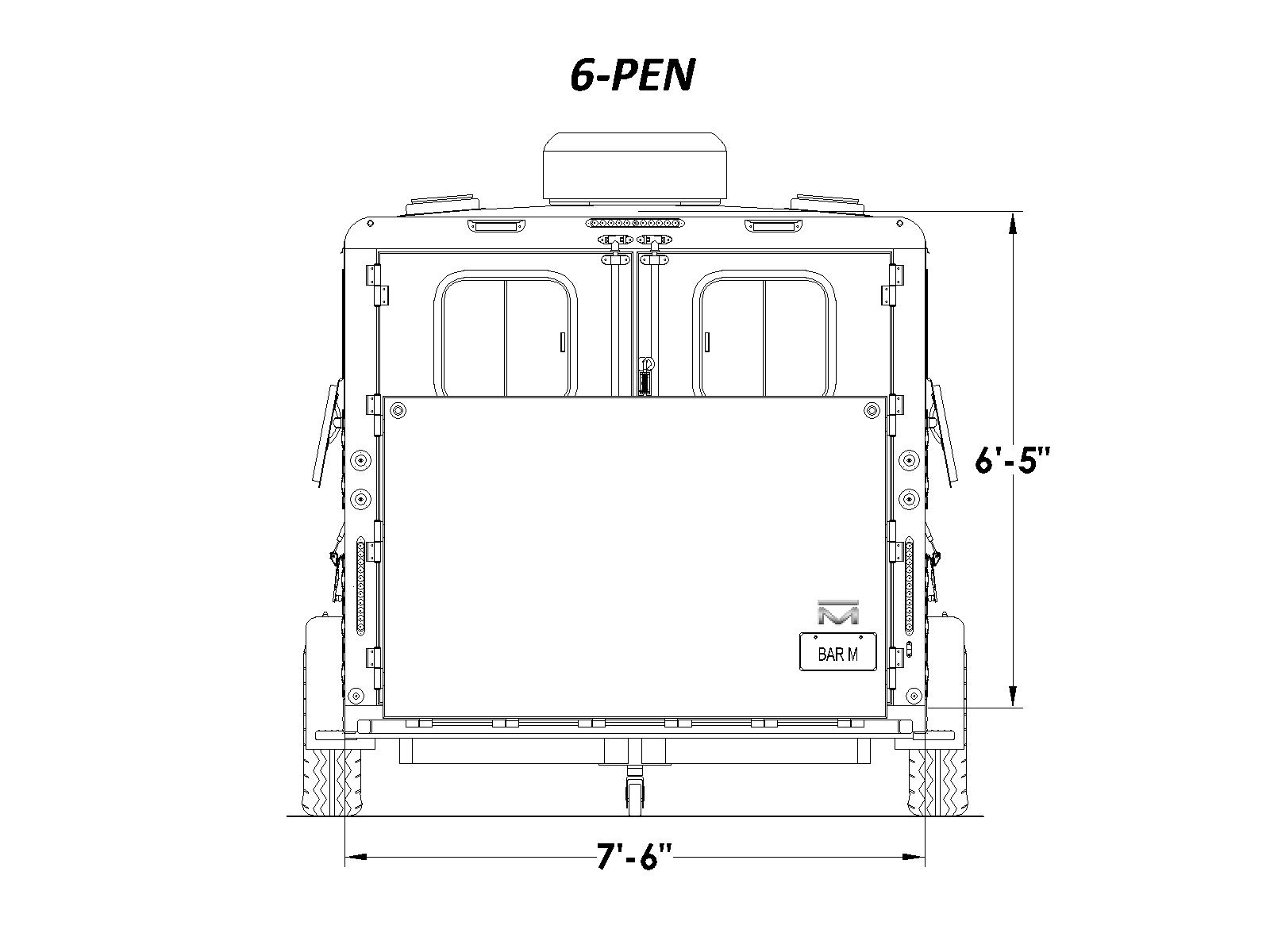

| All trailers 7’6” wide 6’-5" tall. 6 pen 17’ long. 8 pen 21’ long |
| Aluminum one-piece seamless roof sheet. |
| Aluminum roof bows typically on 16” centers. |
| Coupler 2 5/16” clam style latch |
| Exterior aluminum sheeting white .040 thick above slats and nose |
| Full length extruded aluminum side slats both sides |
| Shelby Floor system. (made in America 20 year warranty) |
| Side wall posts are 1 ½” deep, 2 ½ to 4” wide typically on 16” centers |
| Tongue is triple 2X5 aluminum tube |
| Top wind jack with wheel |
| Torsion axles 3,500lb with brakes on both. (6 Pen) |
| Torsion axles 5200lb with brakes on both. (8 Pen) |
Tack room standards |
|---|
| 110 volt GFI double plug |
| 30-amp breaker box |
| Break away battery and charger |
| Custom built 32” tack door with sliding window |
| Divider wall has rods for hanging feeds |
| Spare tire mounted to front wall |
Exterior standards |
|---|
| (2) Outside load lights over rear doors |
| All lights are LED |
| All outside doors will have keyed hasp on cam locks and pressure latch handles |
| Fold down lower-air space one for each pen (no vent front curb side pen) |
| Load lights to have recessed outside switches located in rear frame |
| Outside load light located on curb side top rail over ramp or door in front pen |
| Rear doors to be 50/50 with sliding window, cam locks and ramp behind |
Pen area standards |
|---|
| (2) 110 volt double plugs located in cove on street side |
| 15,000 BTU air condition unit |
| 6 or 8 pen units available |
| 6 pen equipped with 32” suicide style escape door with drop feed window with bars, camper |
| 8 pen equipped with a full height side ramp on front pen curb side |
| All double walled areas to be insulated |
| Both rear doors have full height poly liner on inside |
| Center panels equipped with feeder rail |

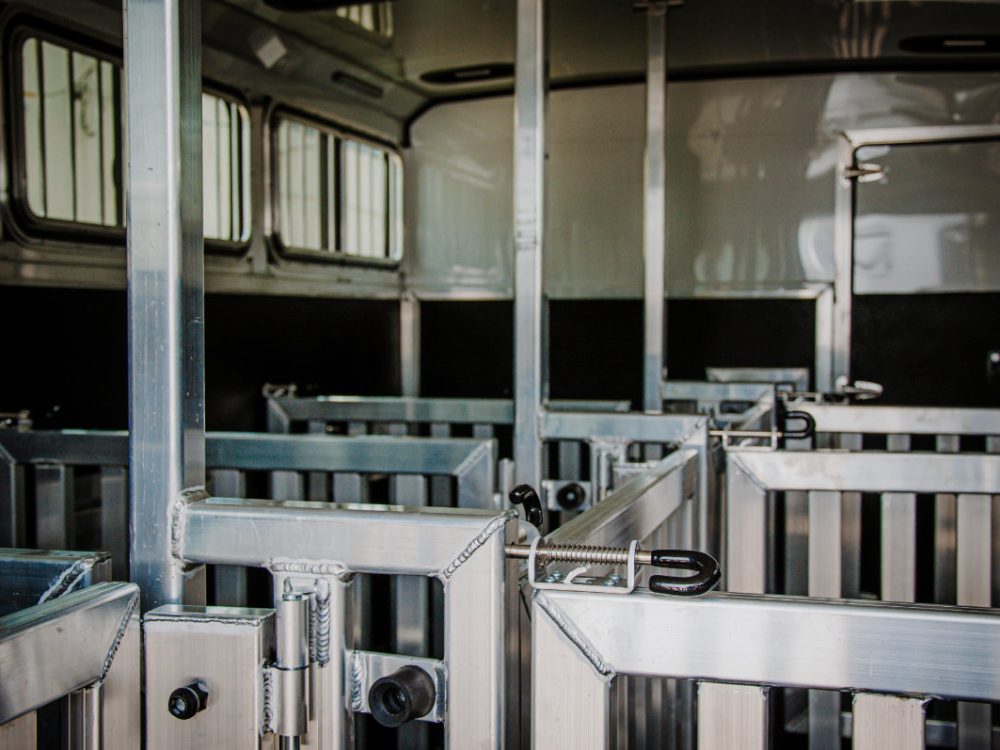

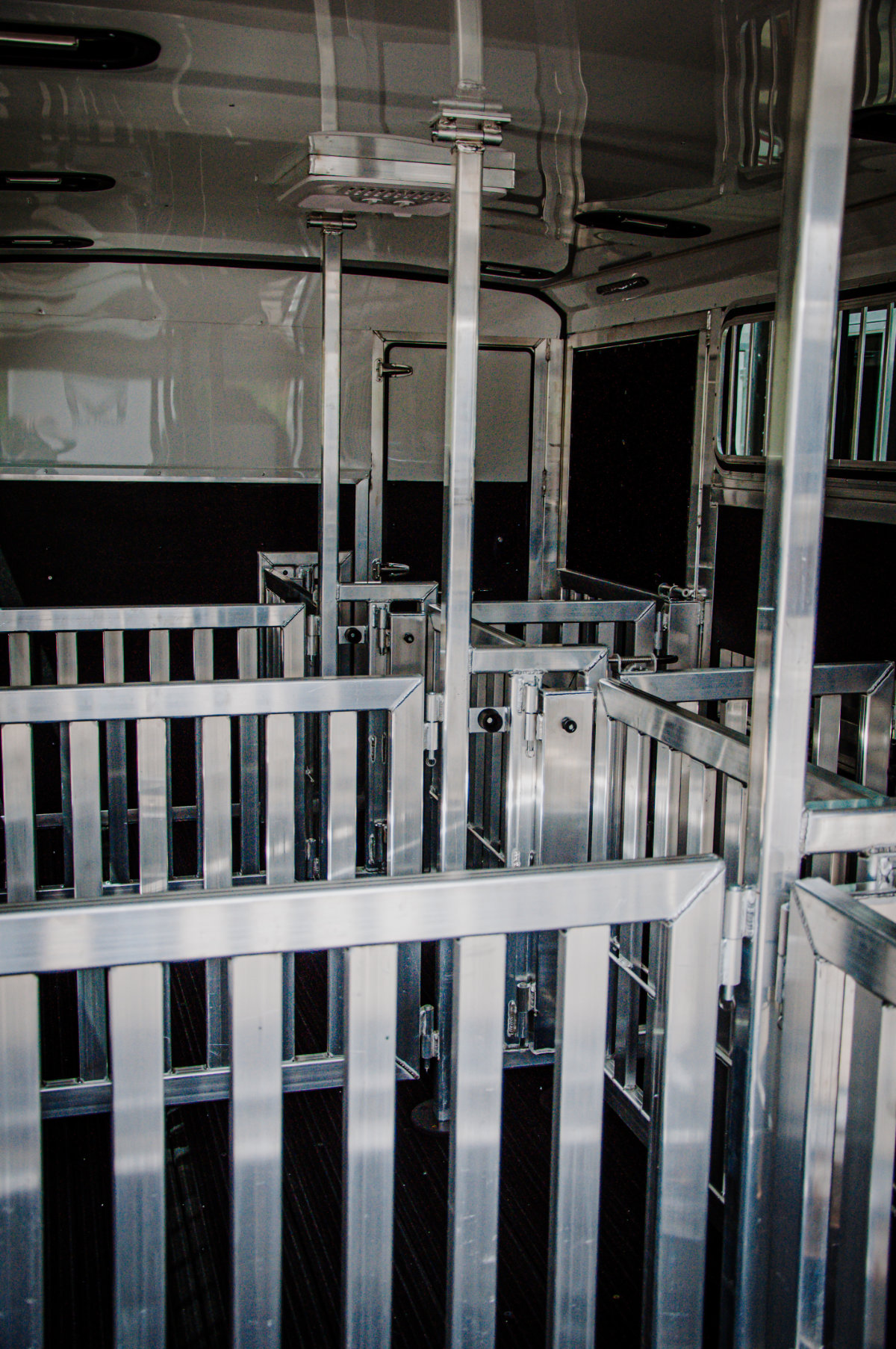

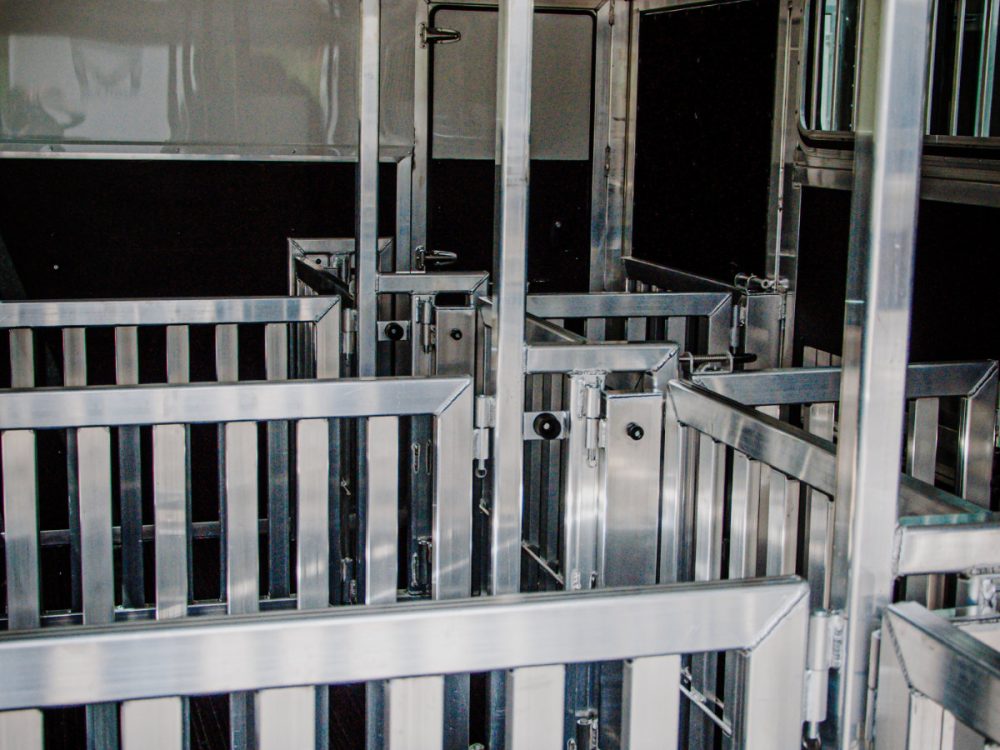

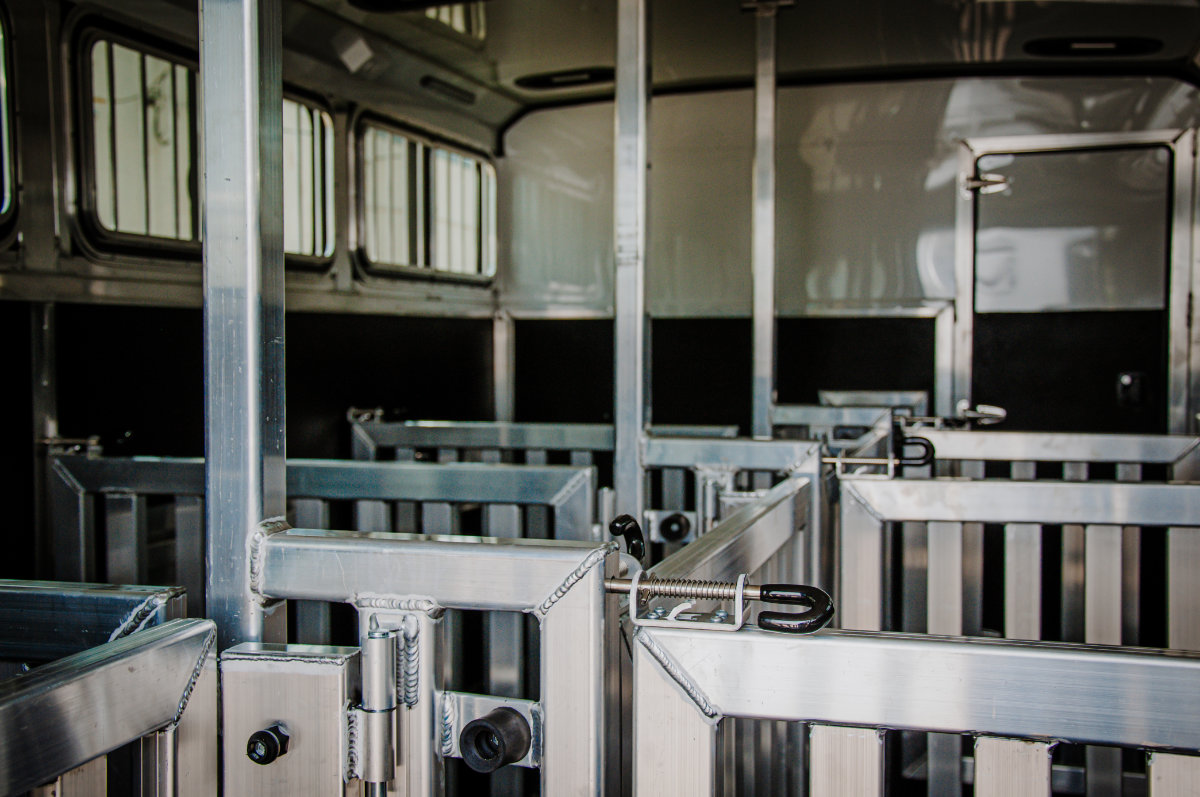

| Convertible pen system 50/50 or 60/40 with 1 ½ x 2 ½ heavy duty aluminum frame |
| Cove covers to enclose top rail both sides full length |
| Custom built walk through door between stock area and tack room |
| Drop Down Feed window with bars located at each pen |
| High density poly liner 48” high on side wall |
| Interior light to have recessed outside switches |
| Interior lights full length LED strip light both sides. (std Blue Color) |
| Roof to be lined with white aluminum and insulated |
| Slim-line LED clear interior light on curb side cove |
| Suicide escape door (6 Pen models only) |
| Two-way roof vents, one per pen |
| Wall from stock area to tack area to have white aluminum sheet above poly liner |
Popular Options
Popular options |
|---|
| Add a 12 Volt deep cycle battery with charging diode and battery box that is mounted in the dressing room. |
| Add a 12 Volt electric fan (price per fan, max total of 6) |
| Add a heat strip to the air conditioner |
| Add an electric jack with 12 Volt battery and Battery box |
| Black skin upgrade from white skin |
| Change the escape door to a side ramp (6-Pen model) |
| Change the side ramp to an escape door (8-Pen model) |
| Charcoal skin upgrade from white skin |
| Delete the A/C (Leave in the framing and wiring for A/C prep) |
| Make all exit gates taller |
Warranty
BAR‑M Limited Warranty
At BAR‑M, we take pride in building trailers that are made to last. That’s why we back every trailer with a 7-Year Structural Warranty and additional coverage on BAR‑M manufactured components. Our warranty reflects our commitment to quality, craftsmanship, and customer satisfaction.
Warranty Highlights
- 7-Year Structural Warranty
- 1-Year Coverage on BAR‑M Manufactured Components
- 1-Year Coverage on Maintenance Items
- Warranty Registration Required Within 60 Days of Purchase
For complete coverage details, exclusions, limitations, and warranty procedures, please download and review the full BAR‑M Limited Warranty document.
