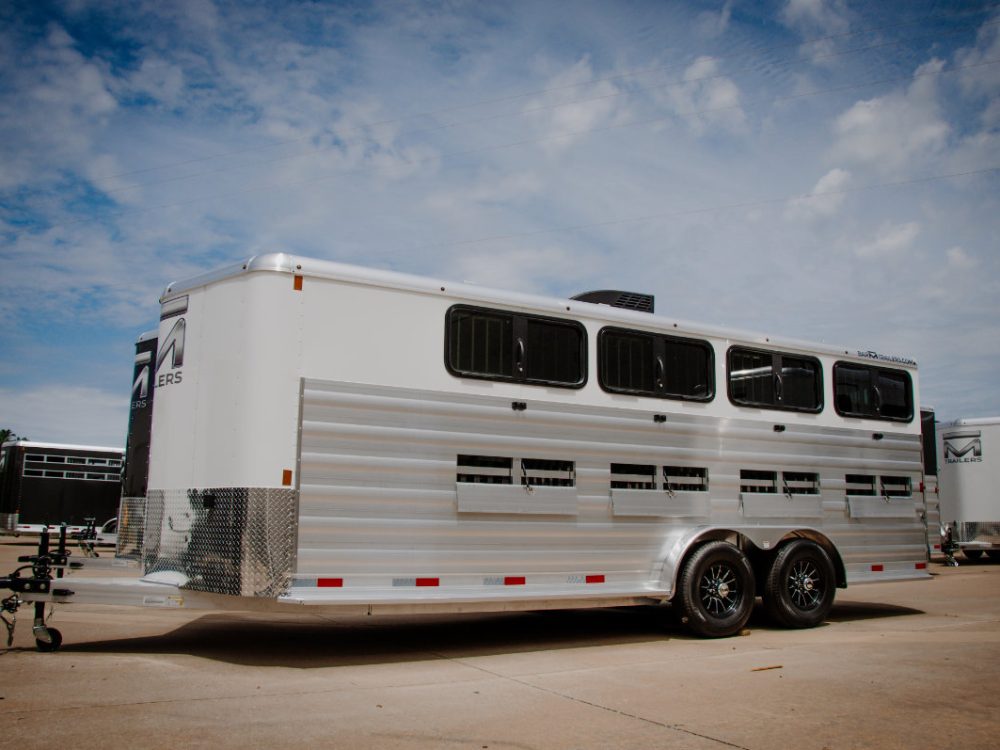

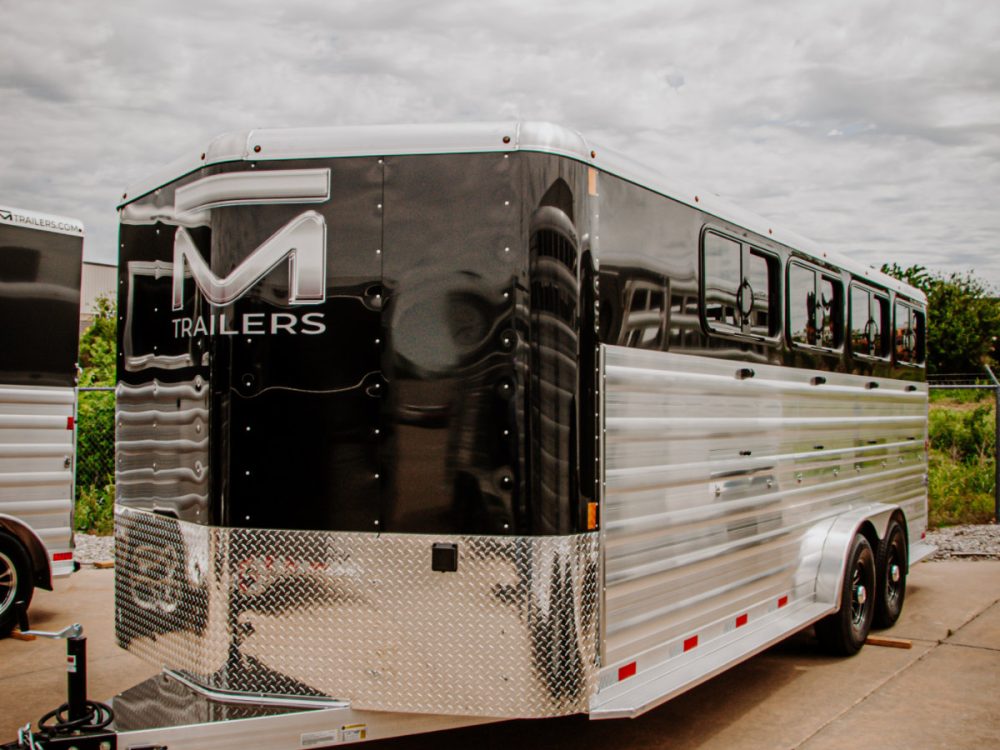

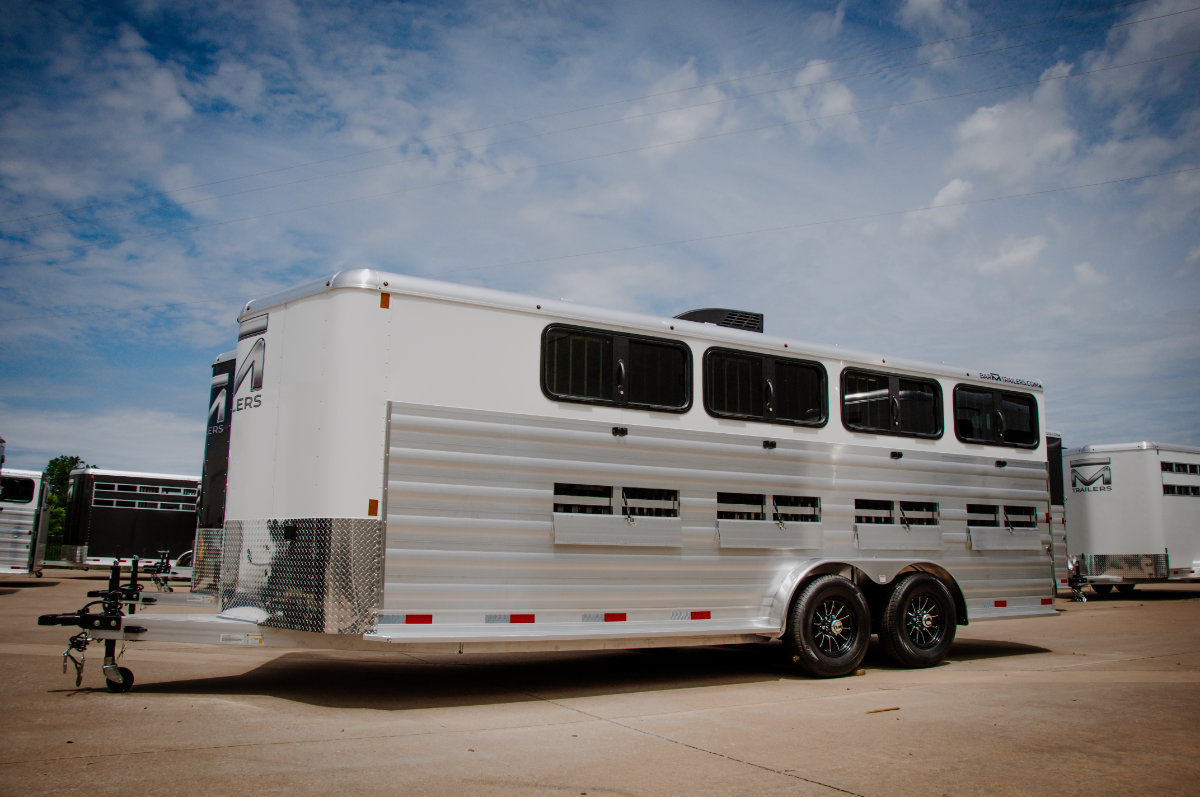

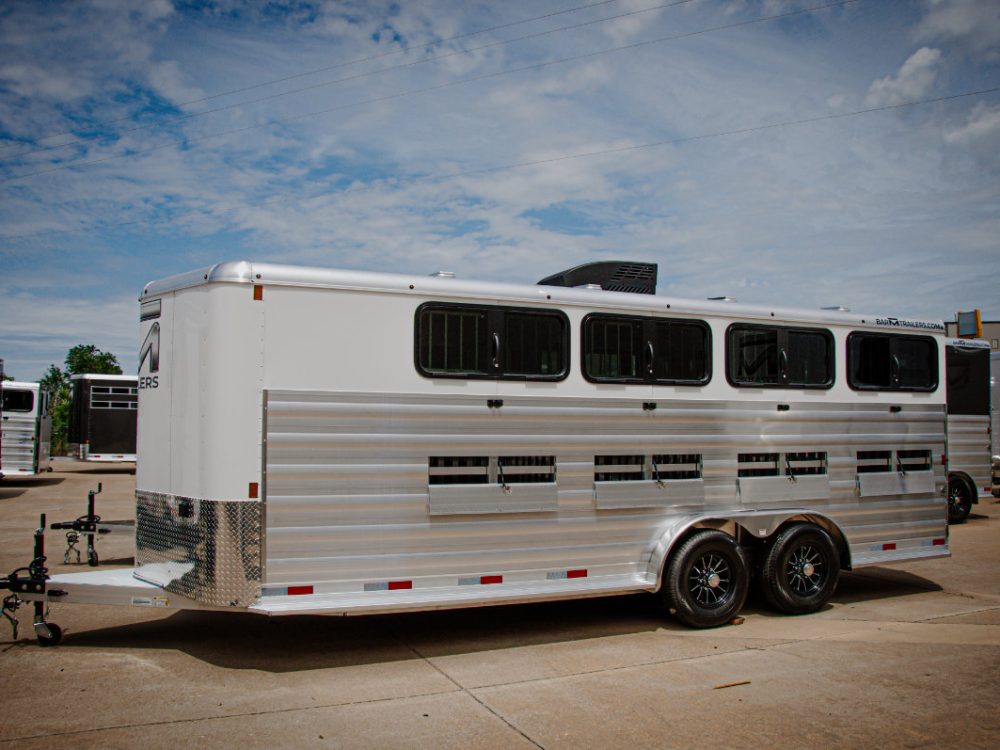

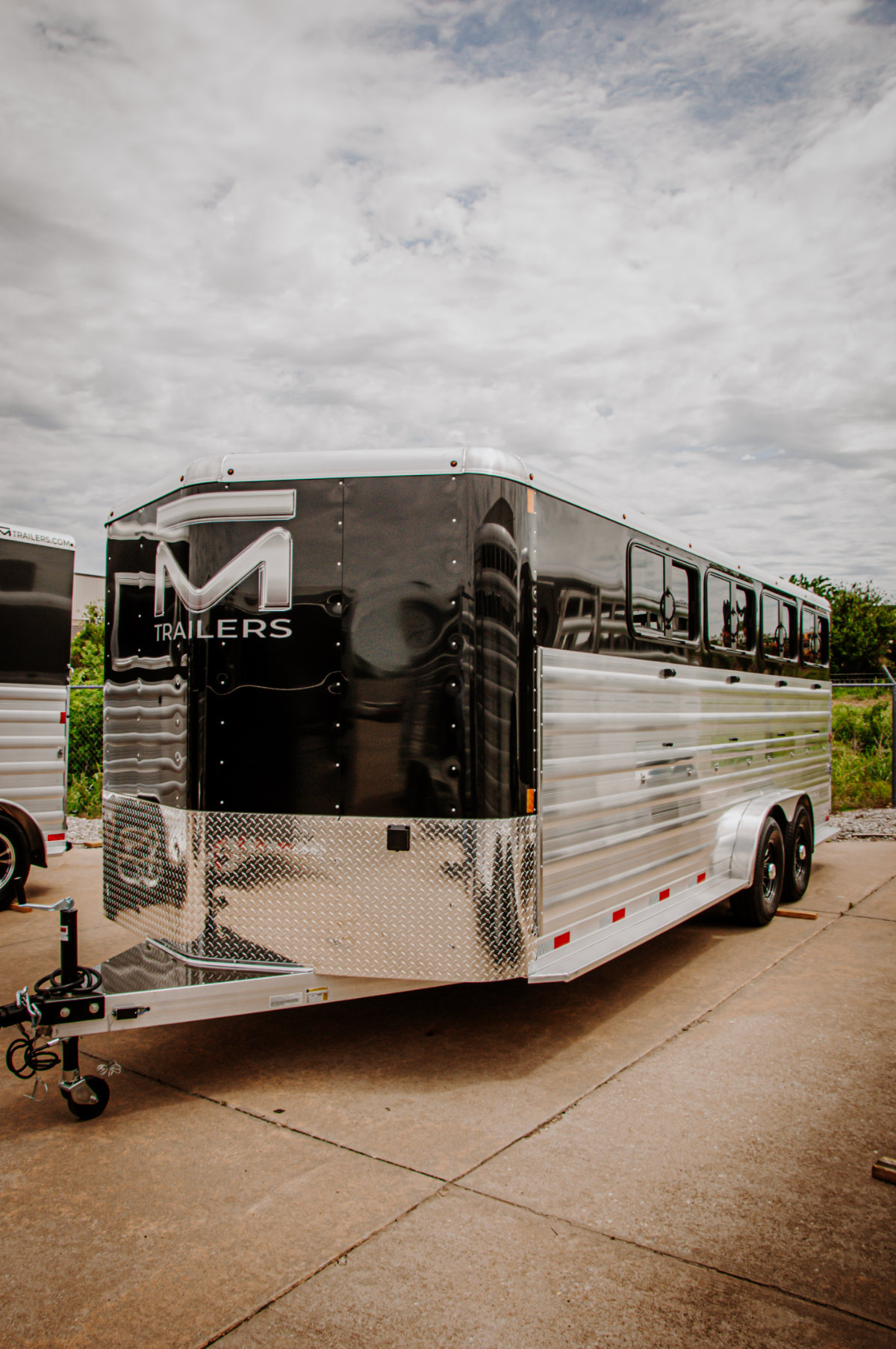

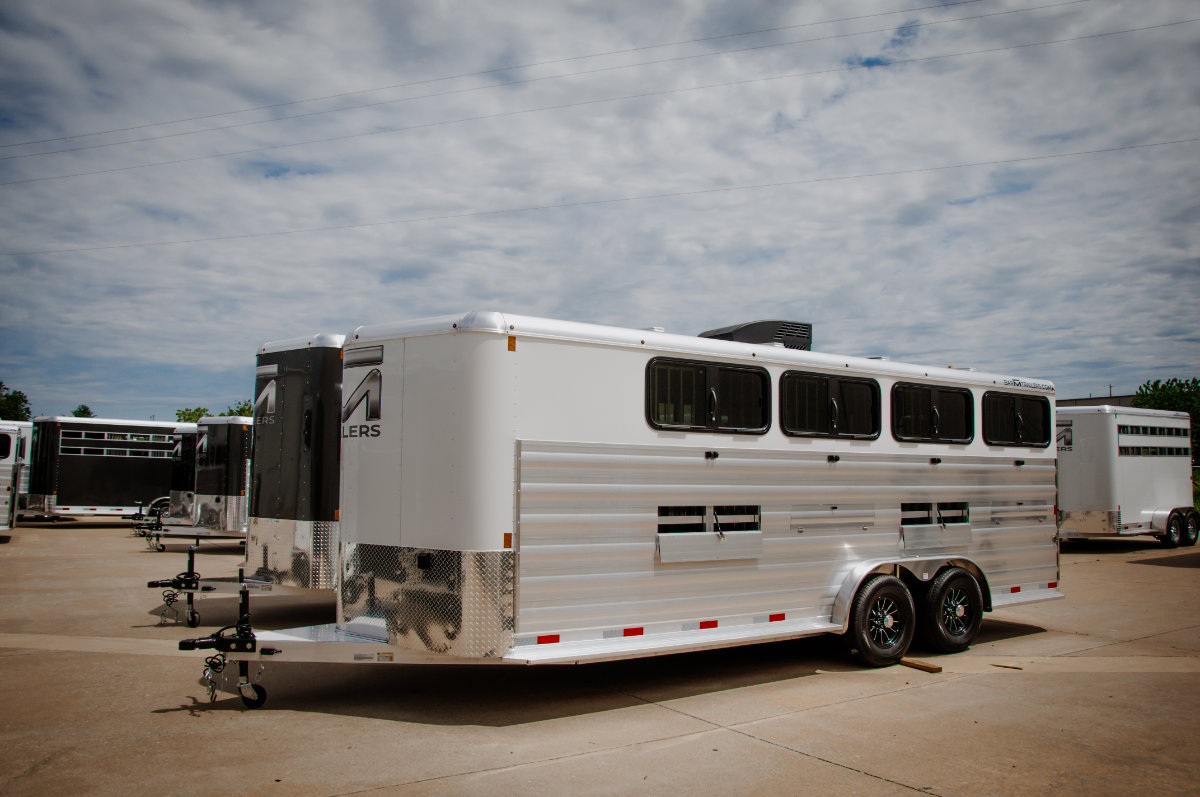

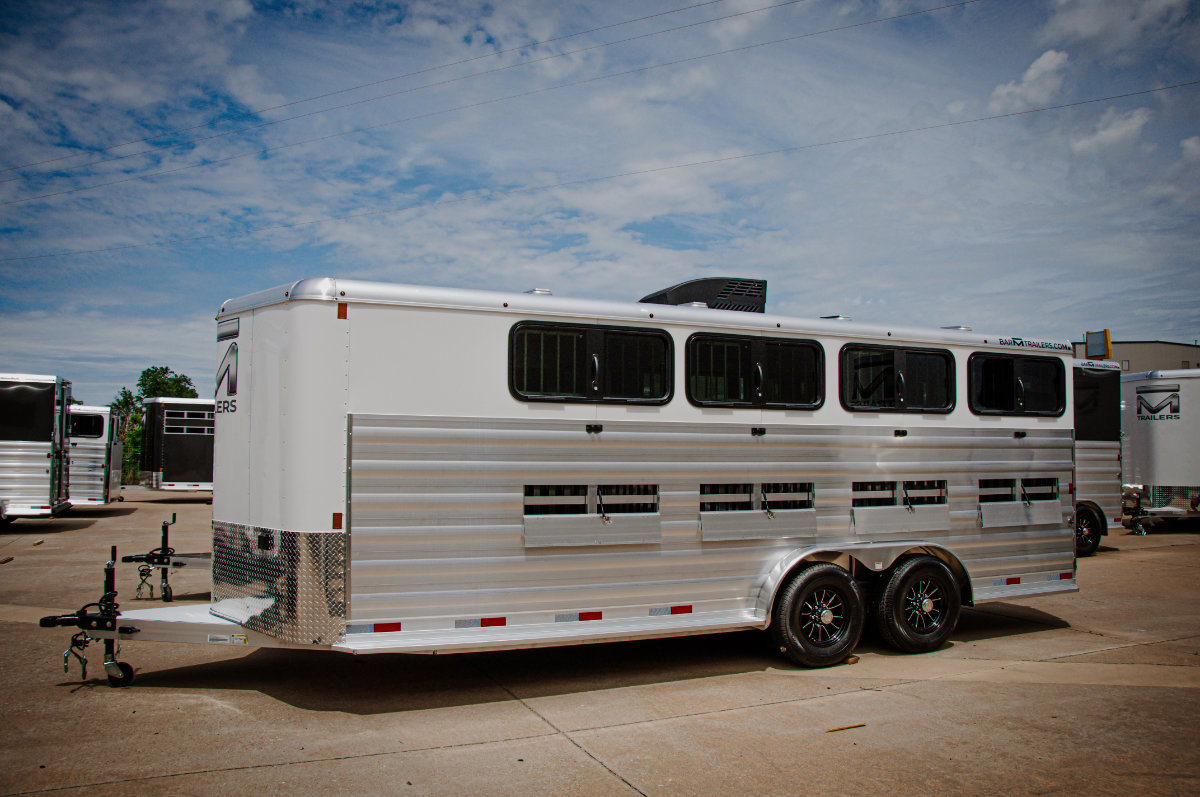

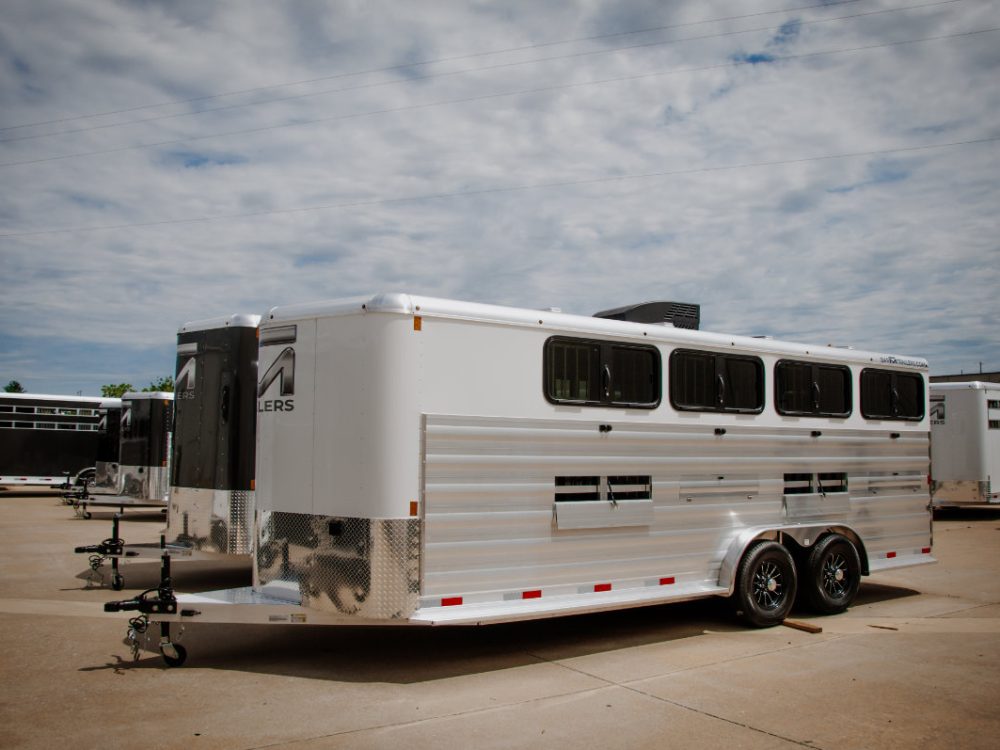

8-PEN – Show Pro Pen Trailer
The Bar-M 8-PEN Show Pro Pen Trailer is built for livestock families who demand comfort, convenience, and durability at every show. Designed specifically for hauling pigs, sheep, goats, and other show livestock, the 8-PEN combines a versatile livestock layout with premium features that help keep animals comfortable and exhibitors organized wherever the road takes them.
Constructed with an all-aluminum frame and Bar-M’s durable Shelby flooring system, the 8-PEN is engineered for years of dependable service. The trailer features eight individual pens with a convertible pen system that can be configured to fit a variety of livestock sizes and hauling needs. Drop-down feed windows, roof vents, and fold-down lower air spaces provide excellent ventilation to help keep livestock comfortable during transport.
The spacious front tack area offers plenty of room for feed, supplies, tack, and show equipment, while a walk-through door provides easy access between the livestock and storage areas. Standard features such as air conditioning, insulated walls and ceiling, LED lighting, and multiple 110-volt outlets help create a comfortable environment whether you’re traveling, preparing animals, or spending long days at the show grounds.
A full-height side ramp, rear 50/50 doors with sliding windows, torsion axles, aluminum wheels, and premium aluminum construction throughout make the 8-PEN one of the most versatile and user-friendly livestock trailers available. From county fairs to major livestock exhibitions, the Bar-M 8-PEN is built to help exhibitors travel with confidence.
Key Features
- Eight-pen livestock hauling system
- Convertible pen configuration
- Full-height side ramp for easy loading and unloading
- All-aluminum frame and construction
- Shelby flooring system
- Torsion axles with electric brakes

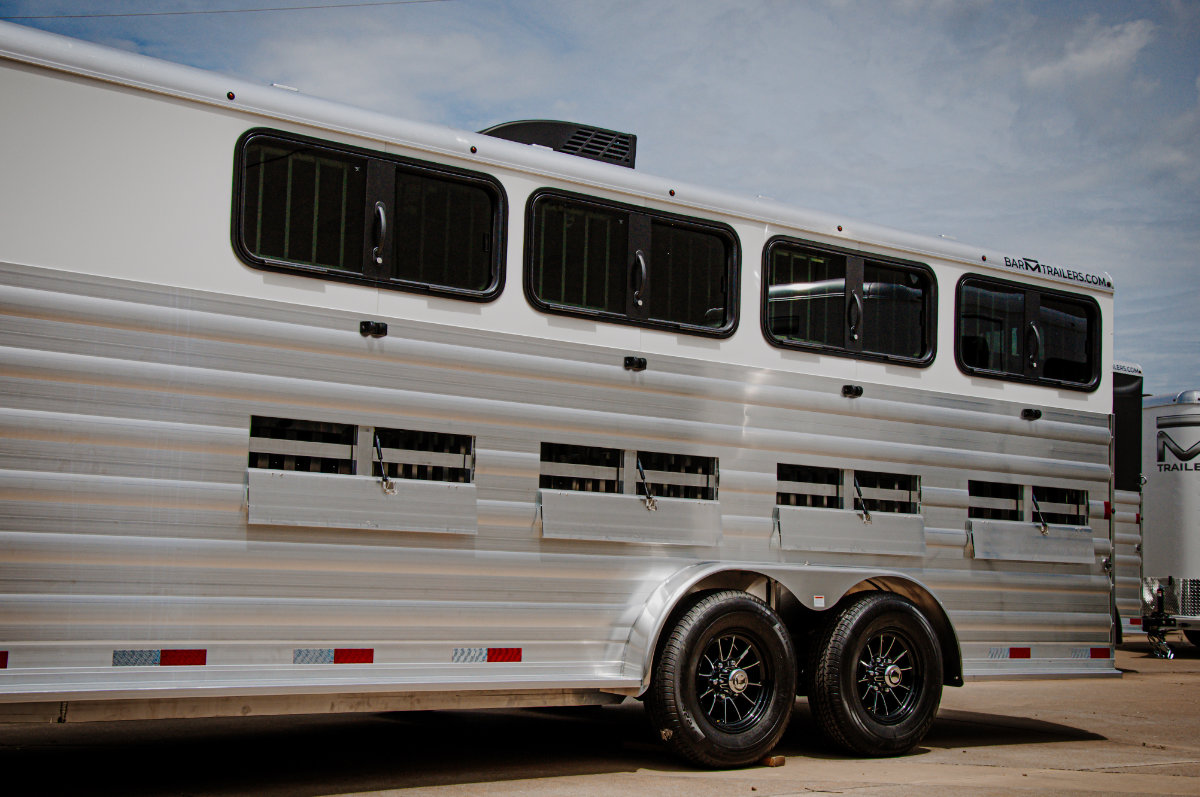

- Drop-down feed windows at every pen
- Individual roof vents for improved airflow
- Insulated roof and wall construction
- High-density poly wall liners
- 15,000 BTU air conditioner

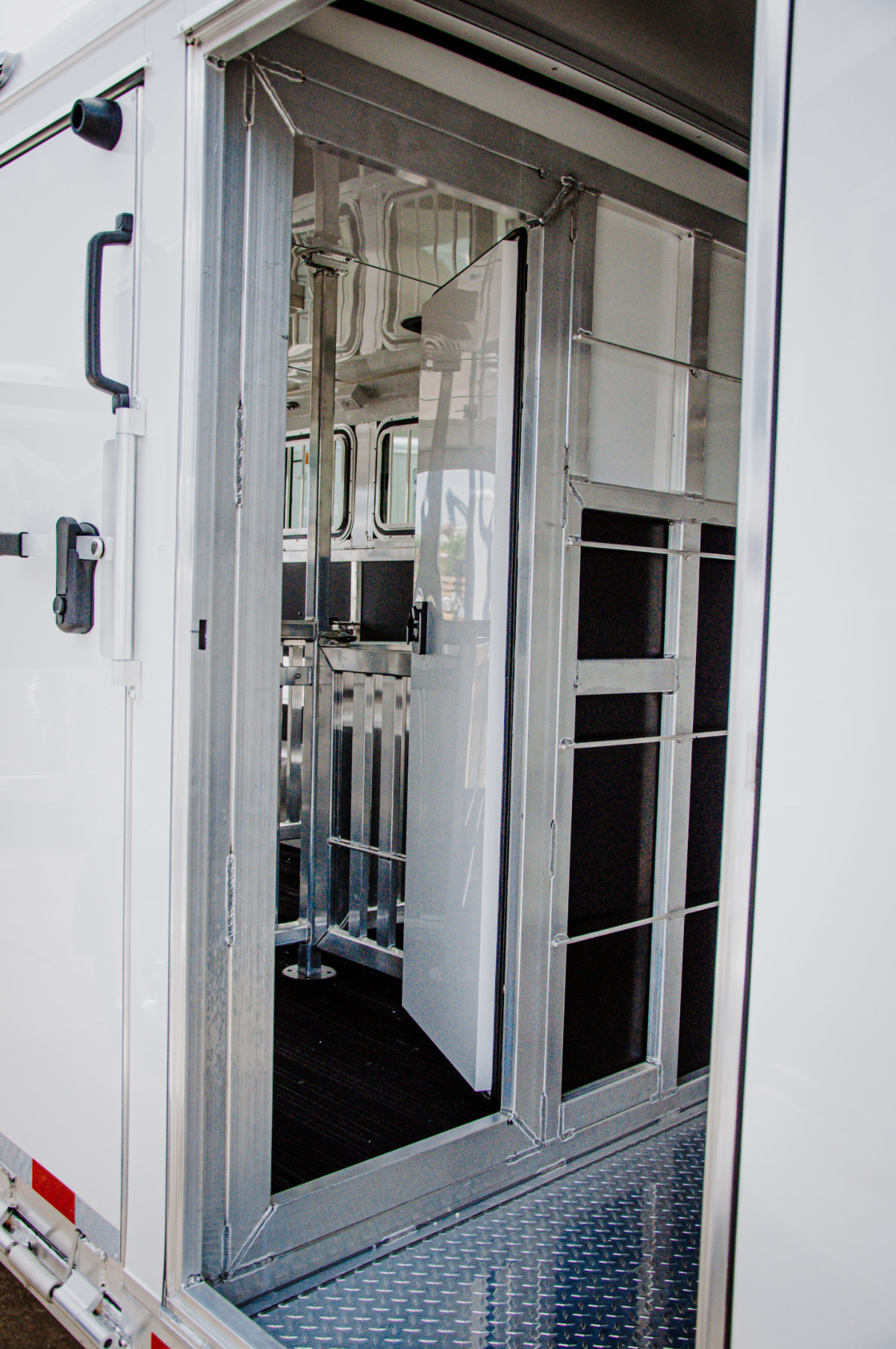

- Walk-through door between livestock and tack areas
- LED interior and exterior lighting
- Multiple 110-volt outlets
- Spacious front tack and storage area
- Designed for pigs, sheep, goats, and show livestock
The 8-PEN Show Pro Trailer delivers the comfort, flexibility, and durability serious exhibitors need, making it the perfect choice for families who spend their weekends on the road and in the show ring.
Floorplan

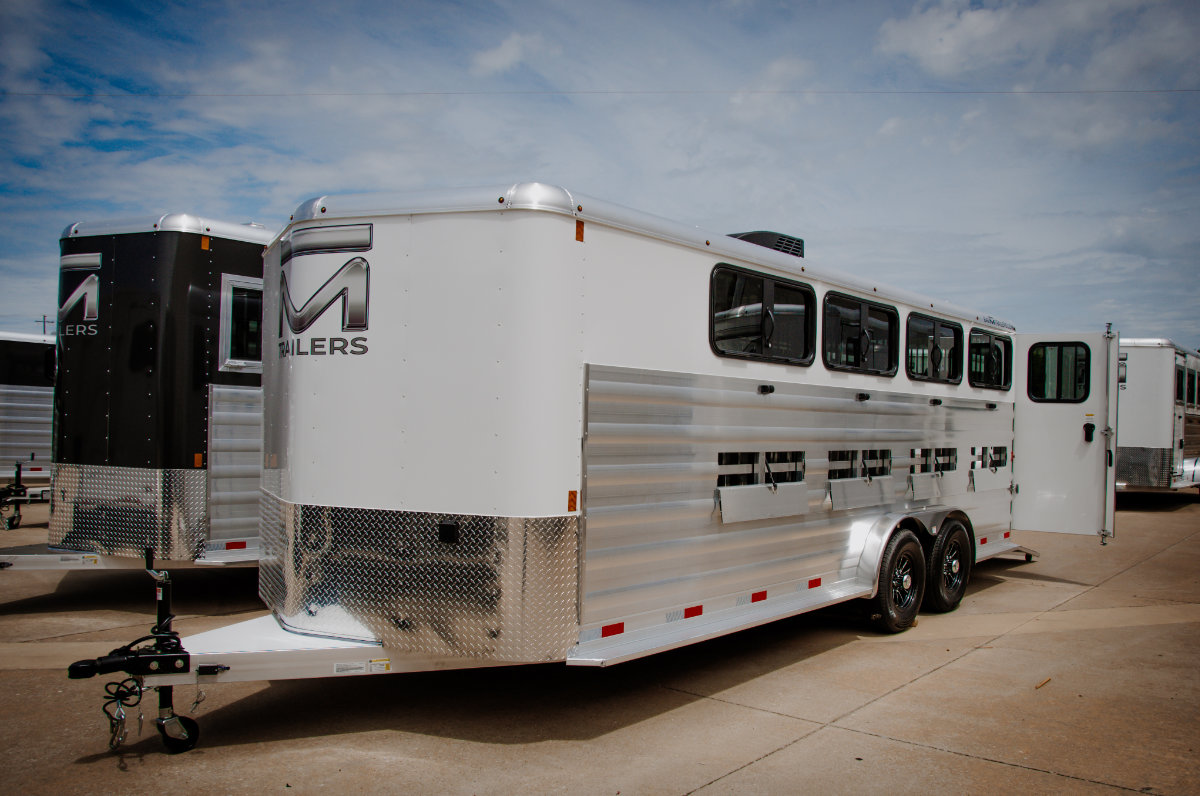

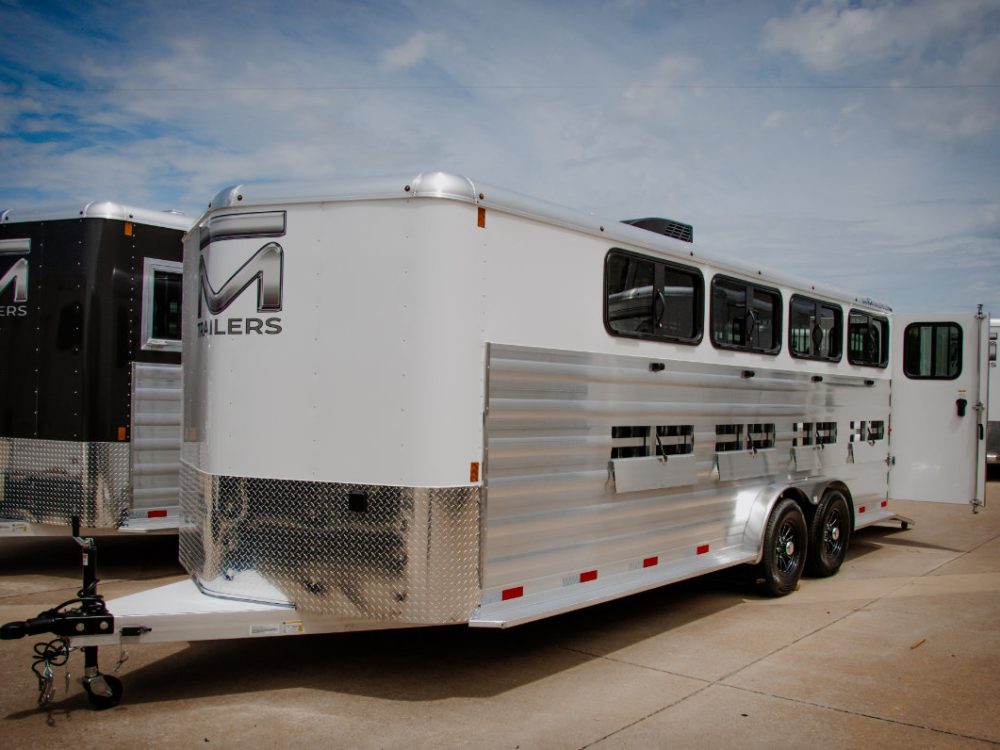

Photo Gallery

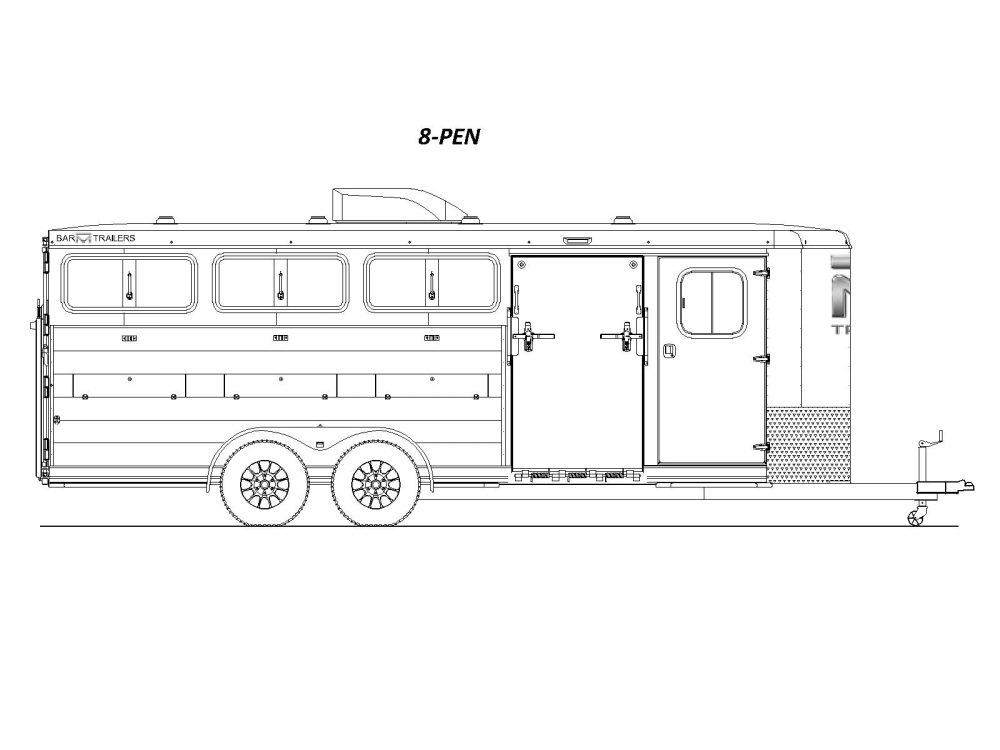

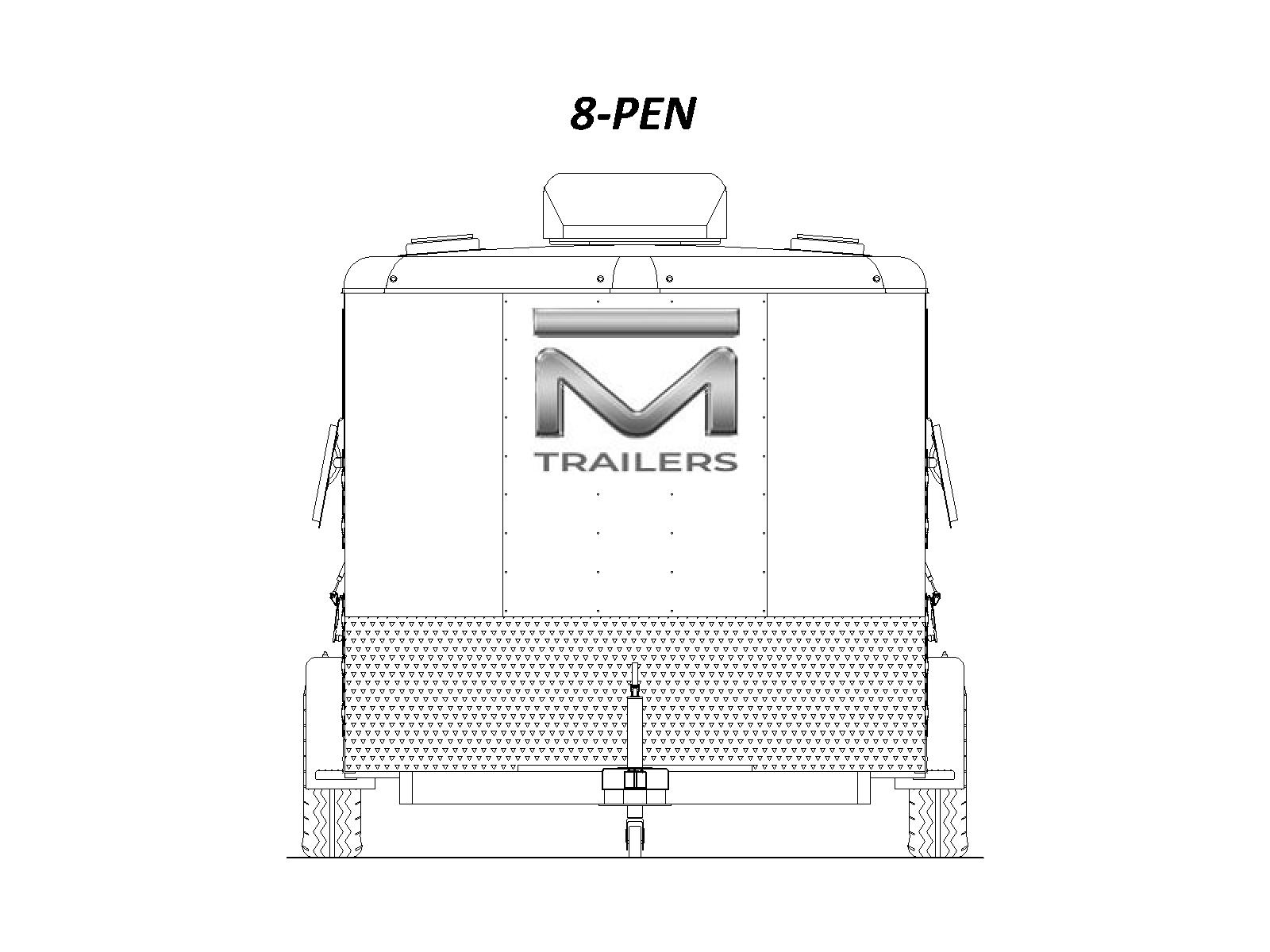

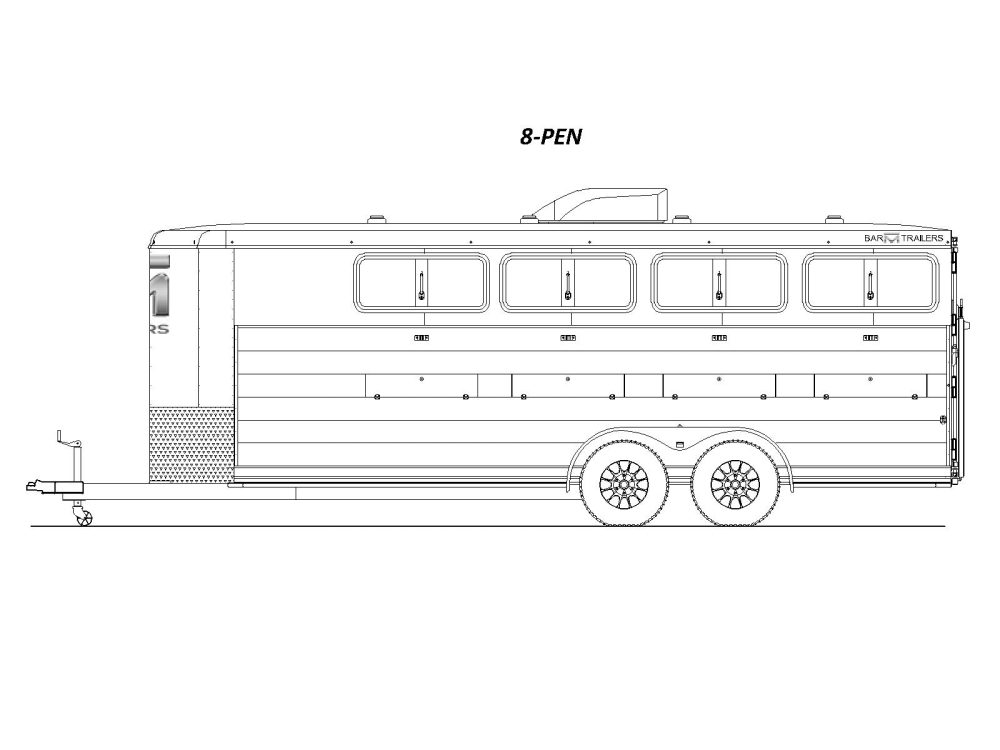

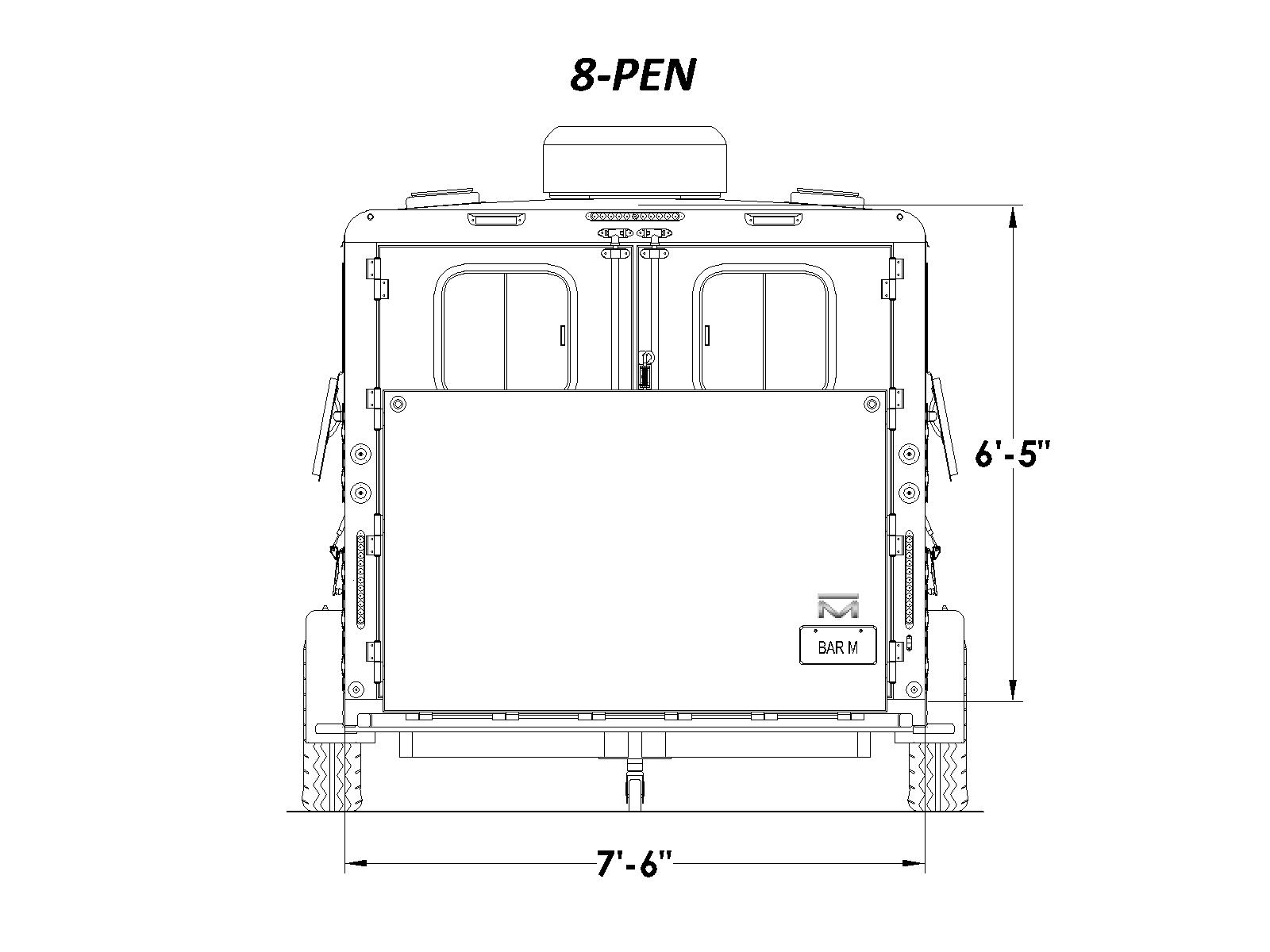

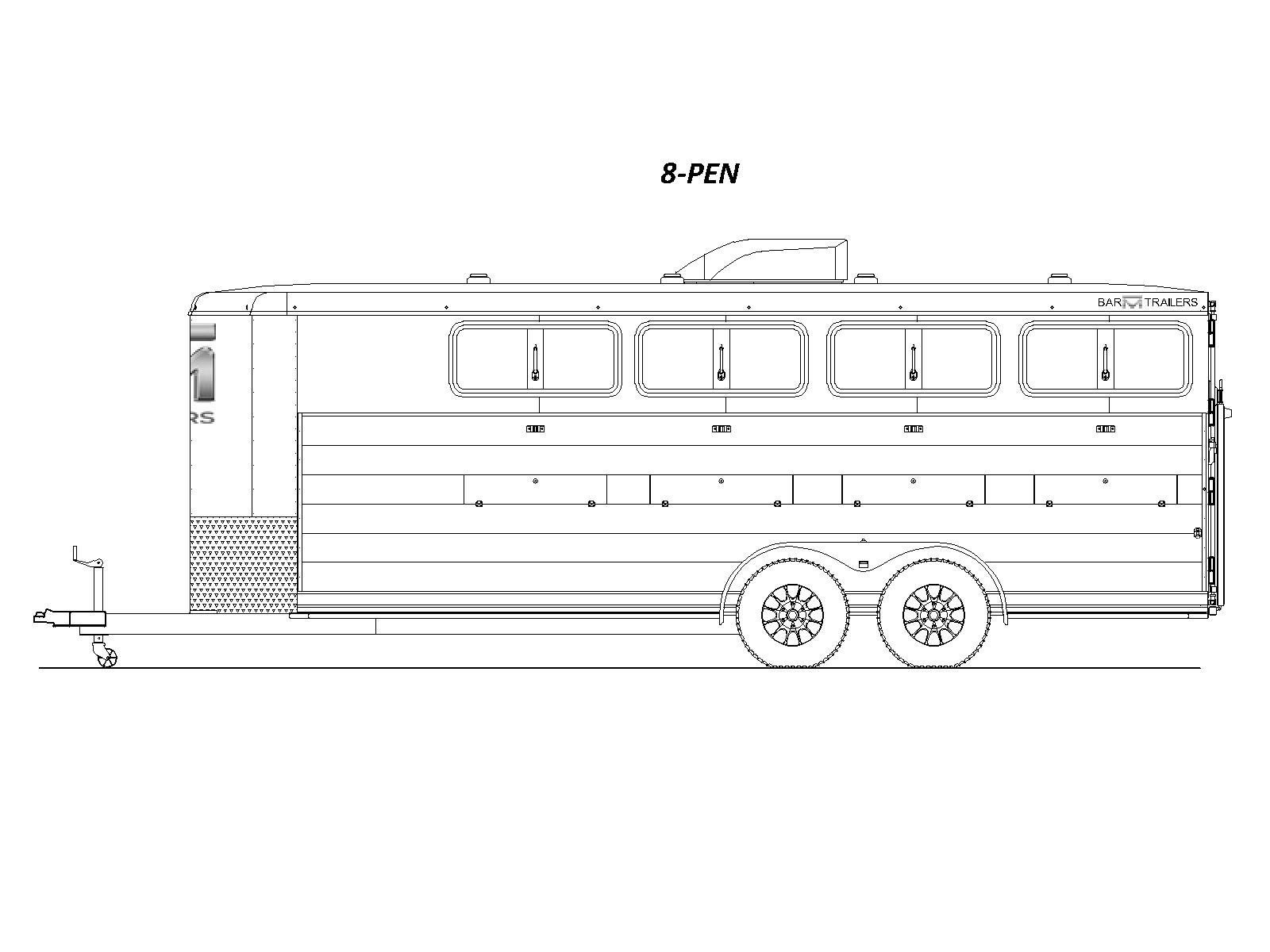

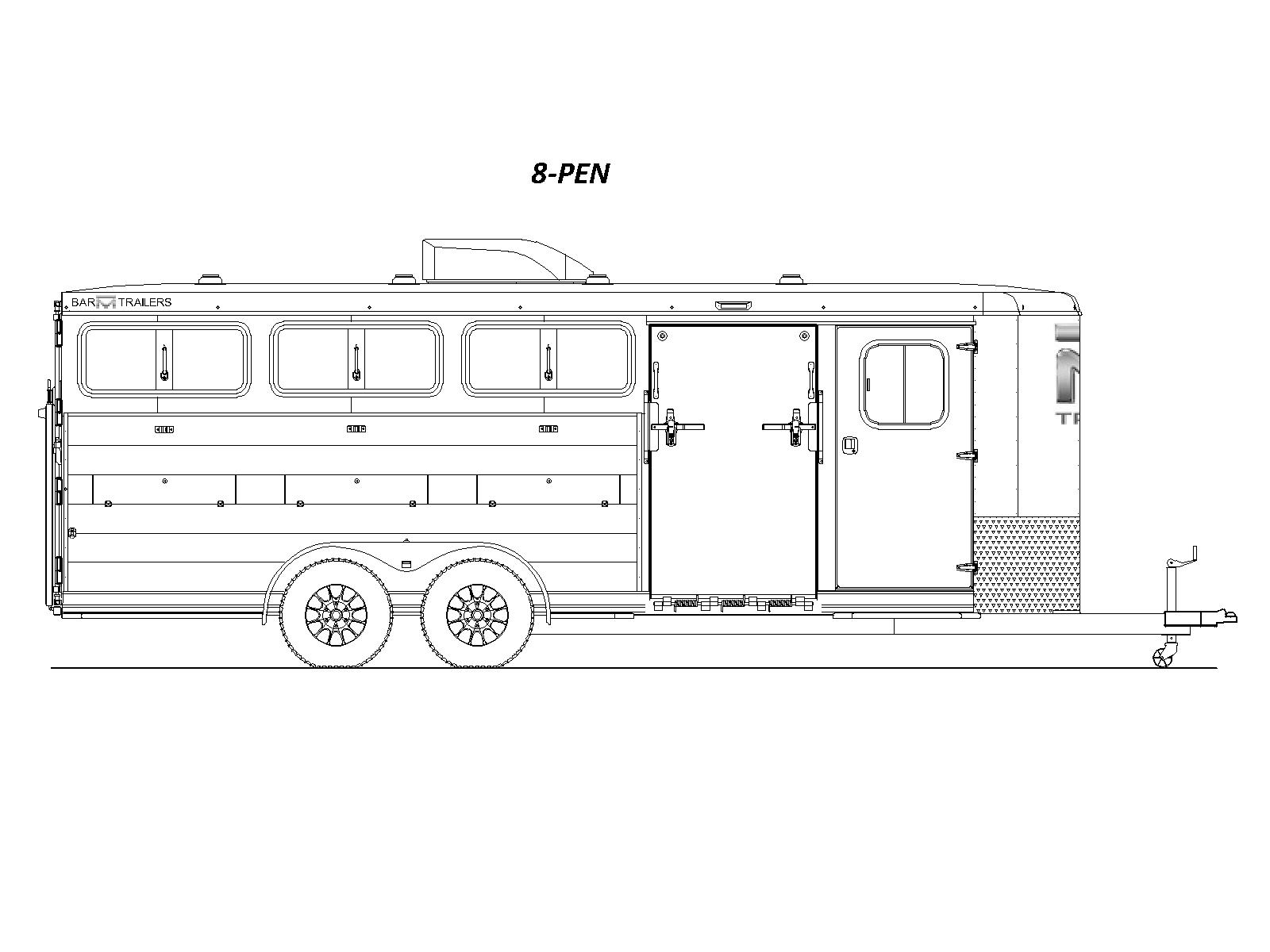

Spec Drawings
Standards
Frame and structure standards |
|---|
| Aluminum frame |
| "I" beam floor crossmembers typically on 12” centers |
| (1) Steel wheel with 15” load range E tire located in tack room |
| (4) aluminum wheels with 15” load range E tires |
| All trailers 7’6” wide 6’-5" tall. 6 pen 17’ long. 8 pen 21’ long |
| Aluminum one-piece seamless roof sheet. |
| Aluminum roof bows typically on 16” centers. |
| Coupler 2 5/16” clam style latch |
| Exterior aluminum sheeting white .040 thick above slats and nose |
| Full length extruded aluminum side slats both sides |

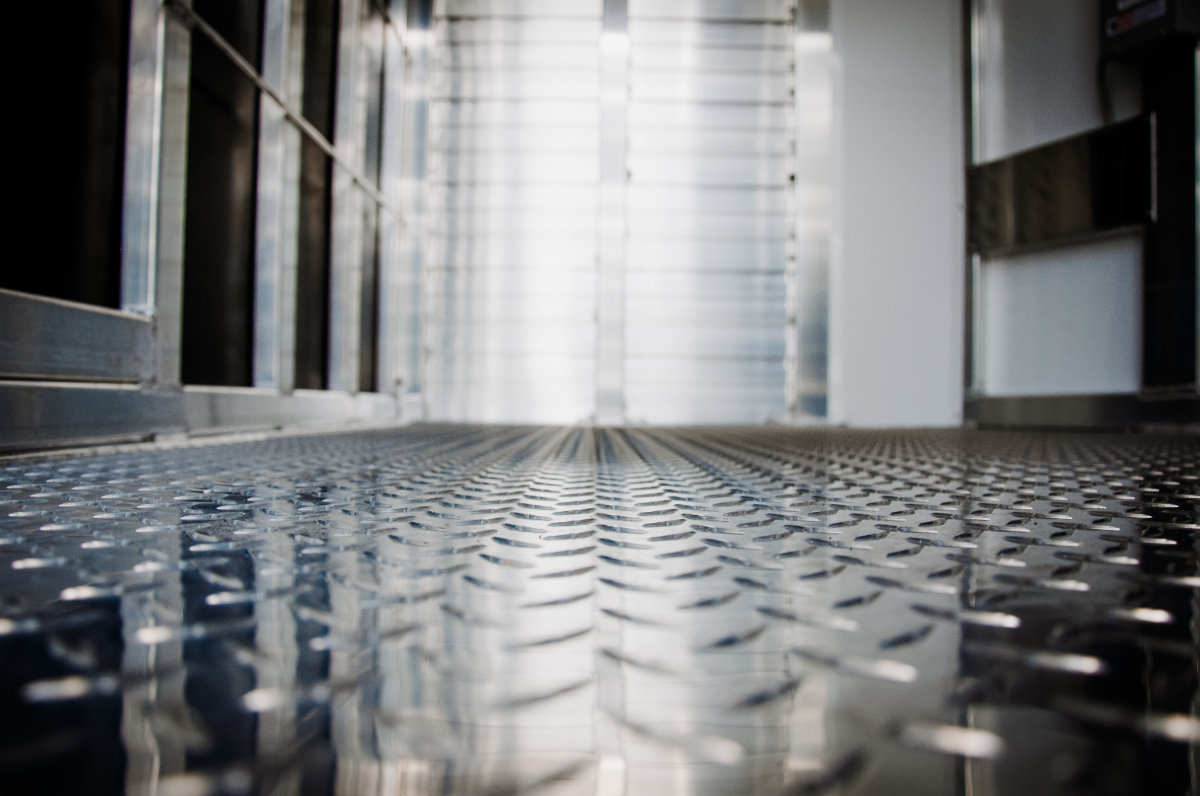

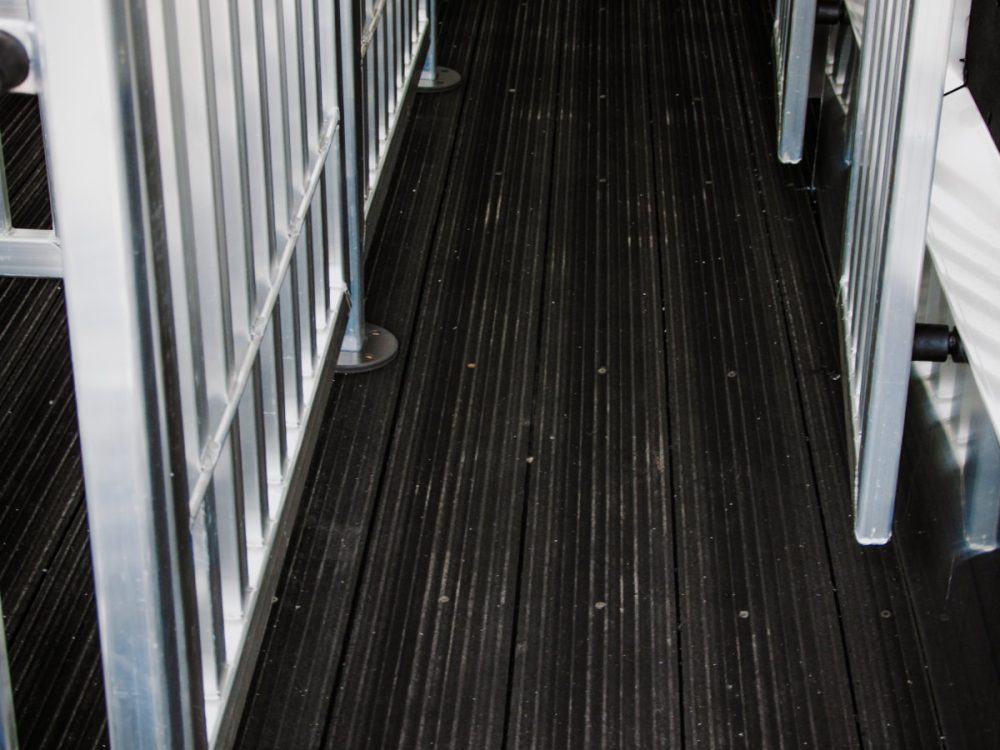

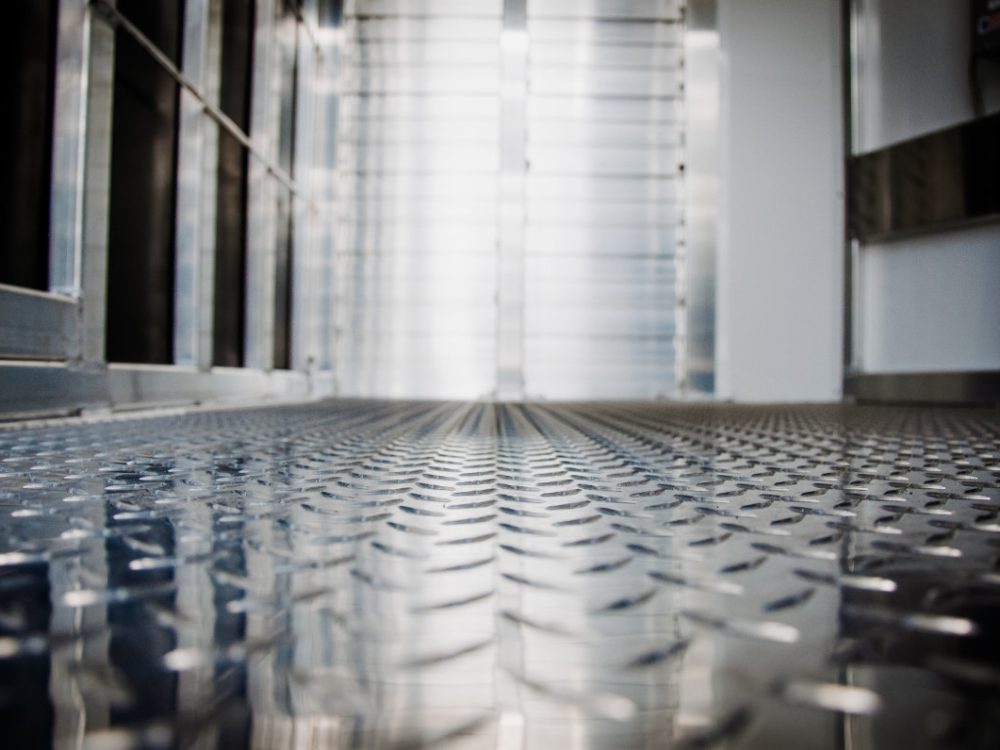

| Shelby Floor system. (made in America 20 year warranty) |
| Side wall posts are 1 ½” deep, 2 ½ to 4” wide typically on 16” centers |
| Tongue is triple 2X5 aluminum tube |
| Top wind jack with wheel |
| Torsion axles 3,500lb with brakes on both. (6 Pen) |
| Torsion axles 5200lb with brakes on both. (8 Pen) |

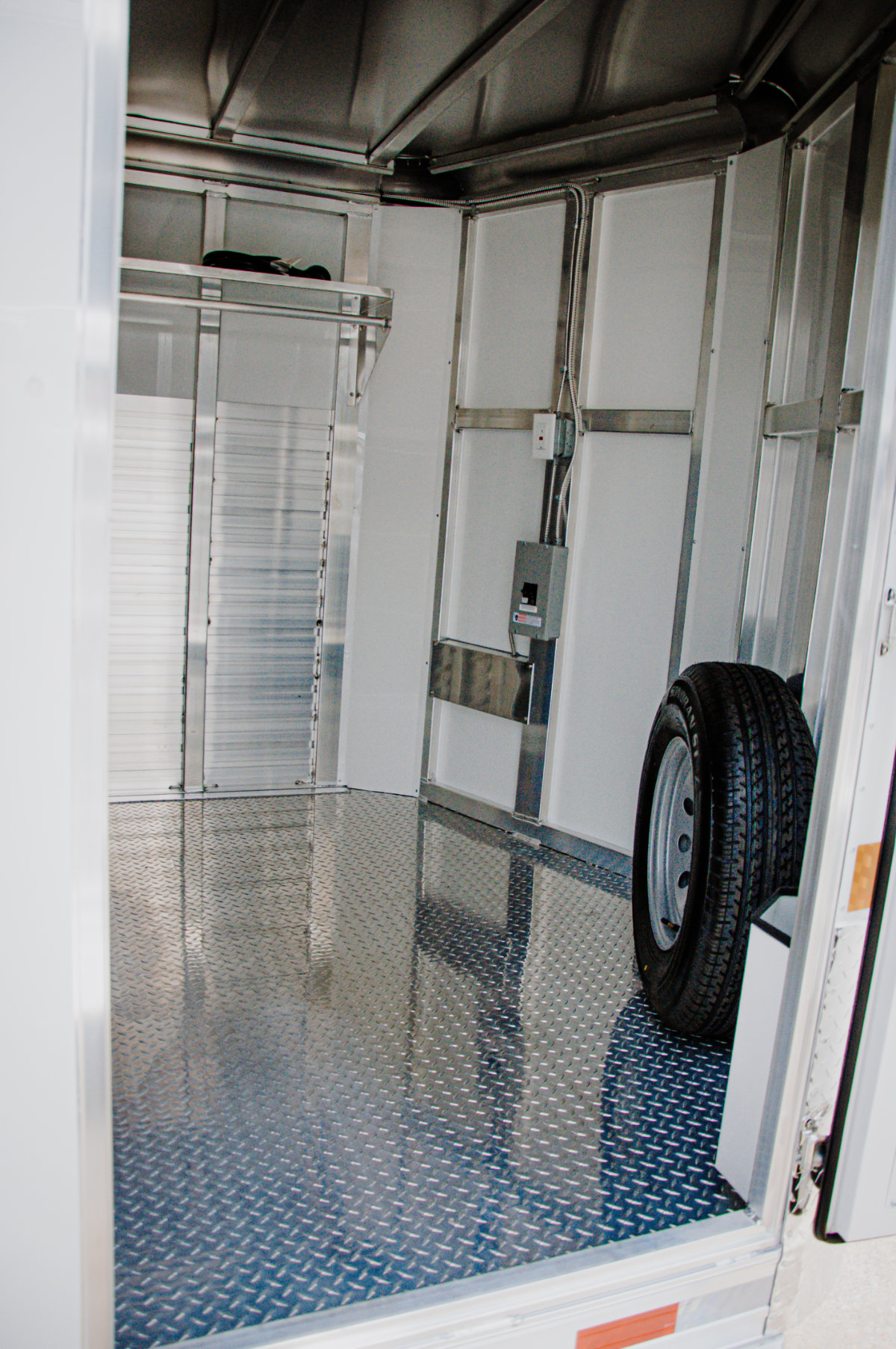

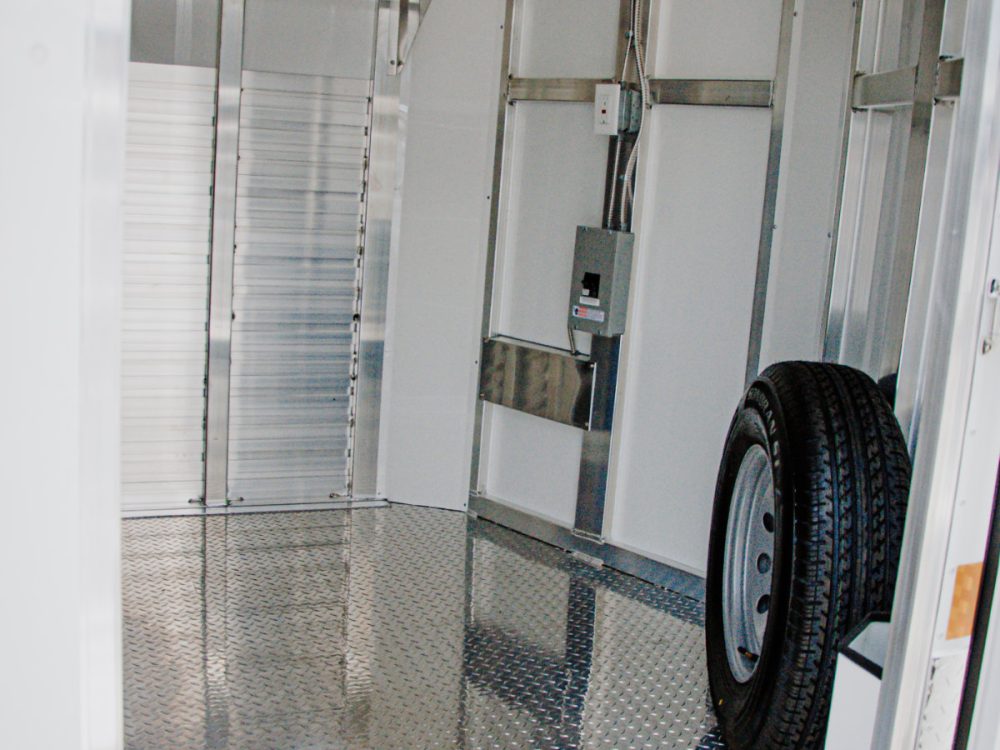

Tack room standards |
|---|
| 110 volt GFI double plug |
| 30-amp breaker box |
| Break away battery and charger |
| Custom built 32” tack door with sliding window |
| Divider wall has rods for hanging feeds |
| Spare tire mounted to front wall |
Exterior standards |
|---|
| (2) Outside load lights over rear doors |
| All lights are LED |
| All outside doors will have keyed hasp on cam locks and pressure latch handles |
| Fold down lower-air space one for each pen (no vent front curb side pen) |
| Load lights to have recessed outside switches located in rear frame |
| Outside load light located on curb side top rail over ramp or door in front pen |

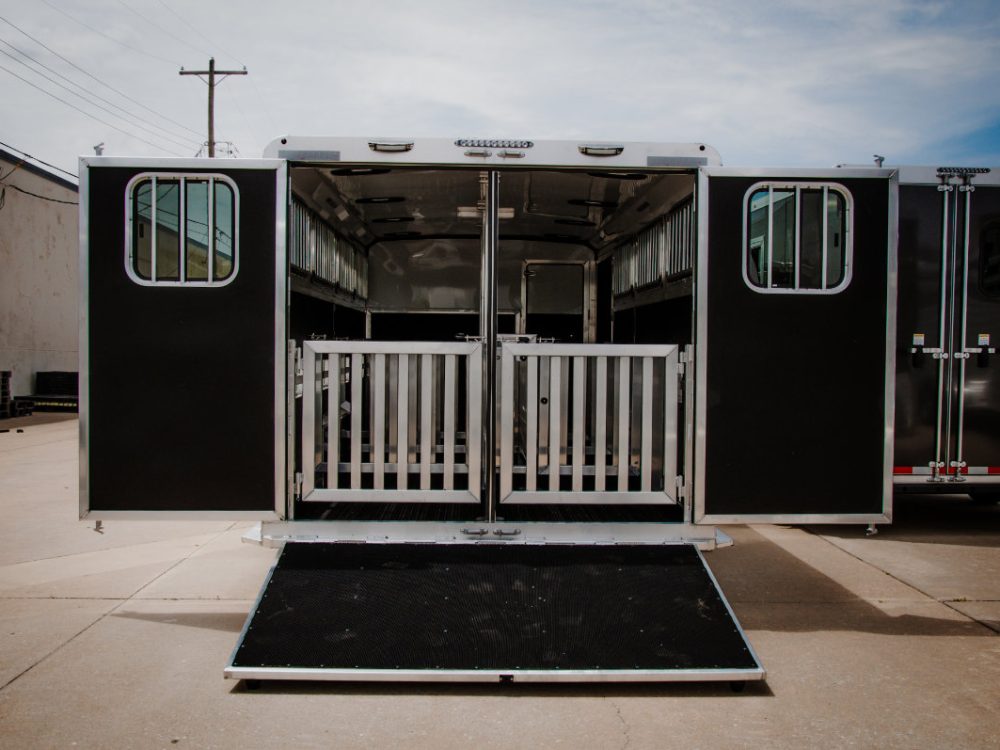

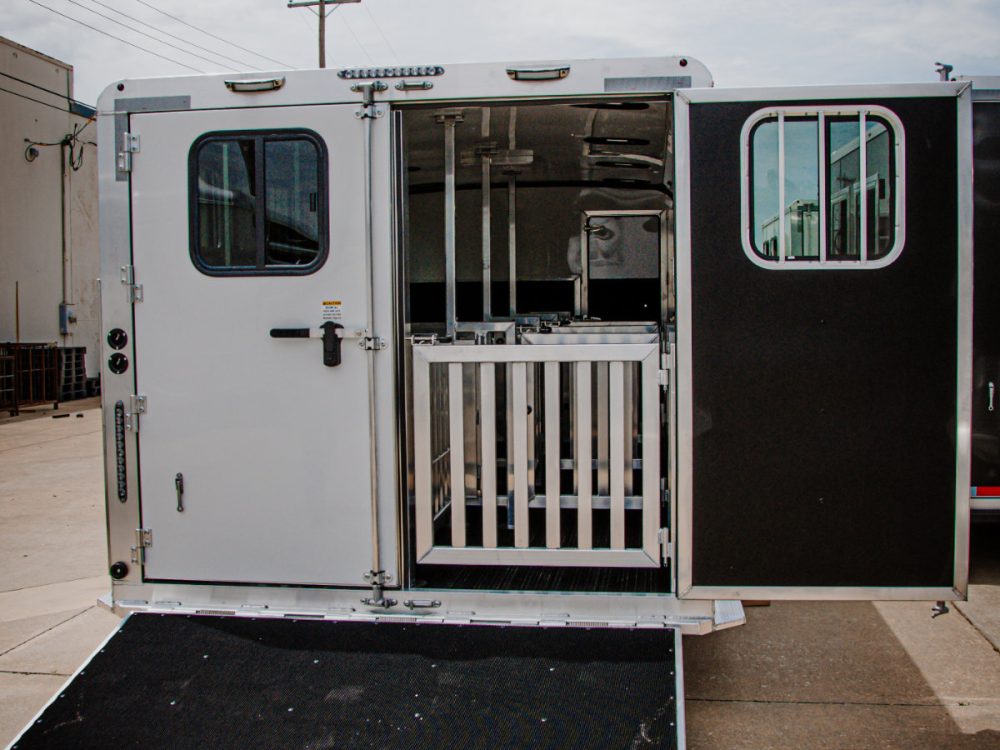

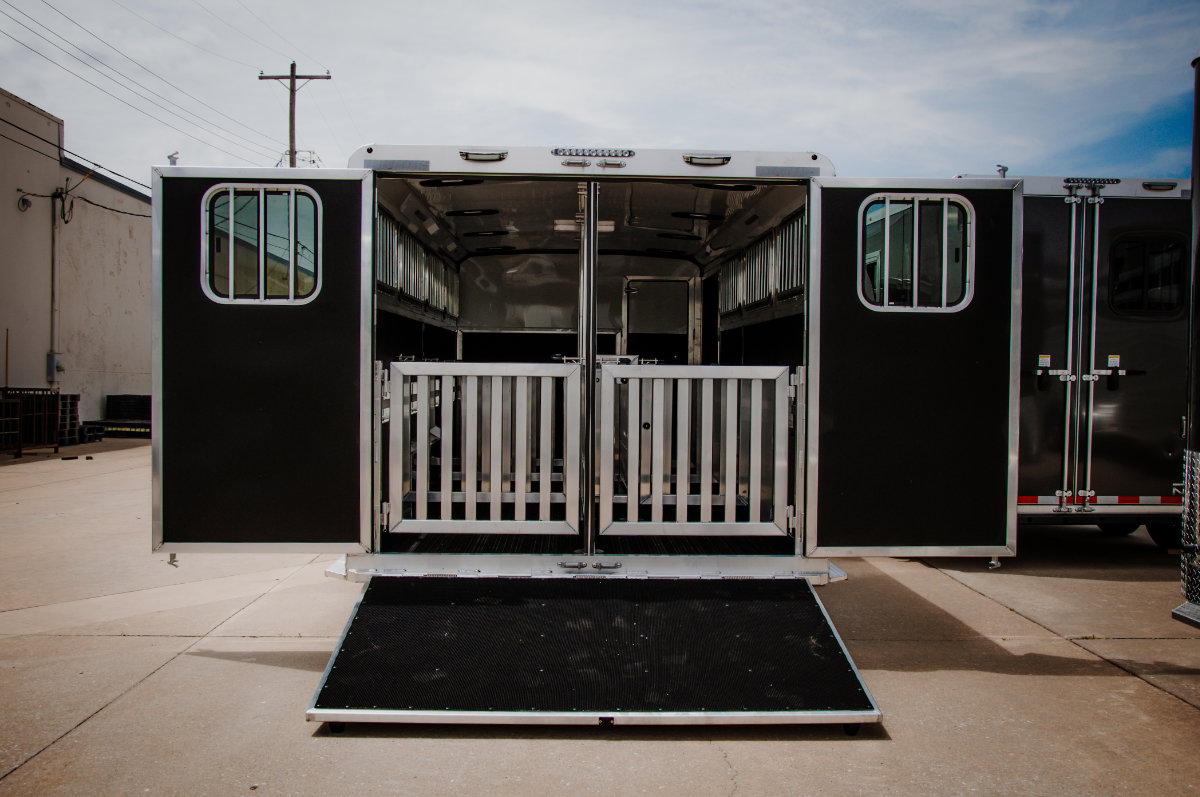

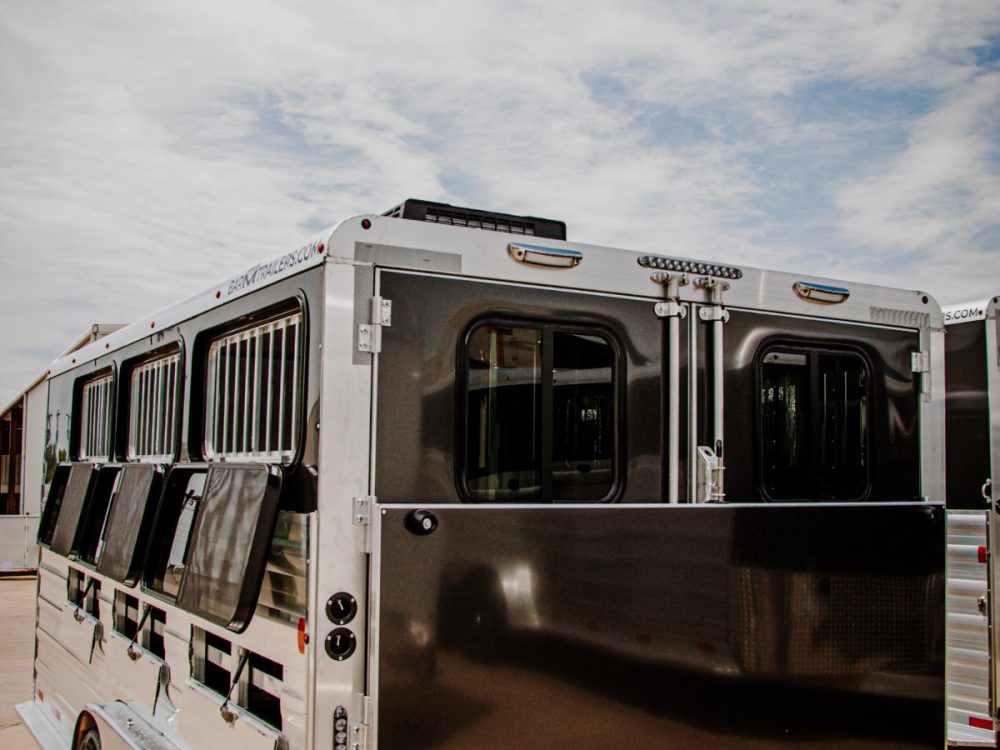

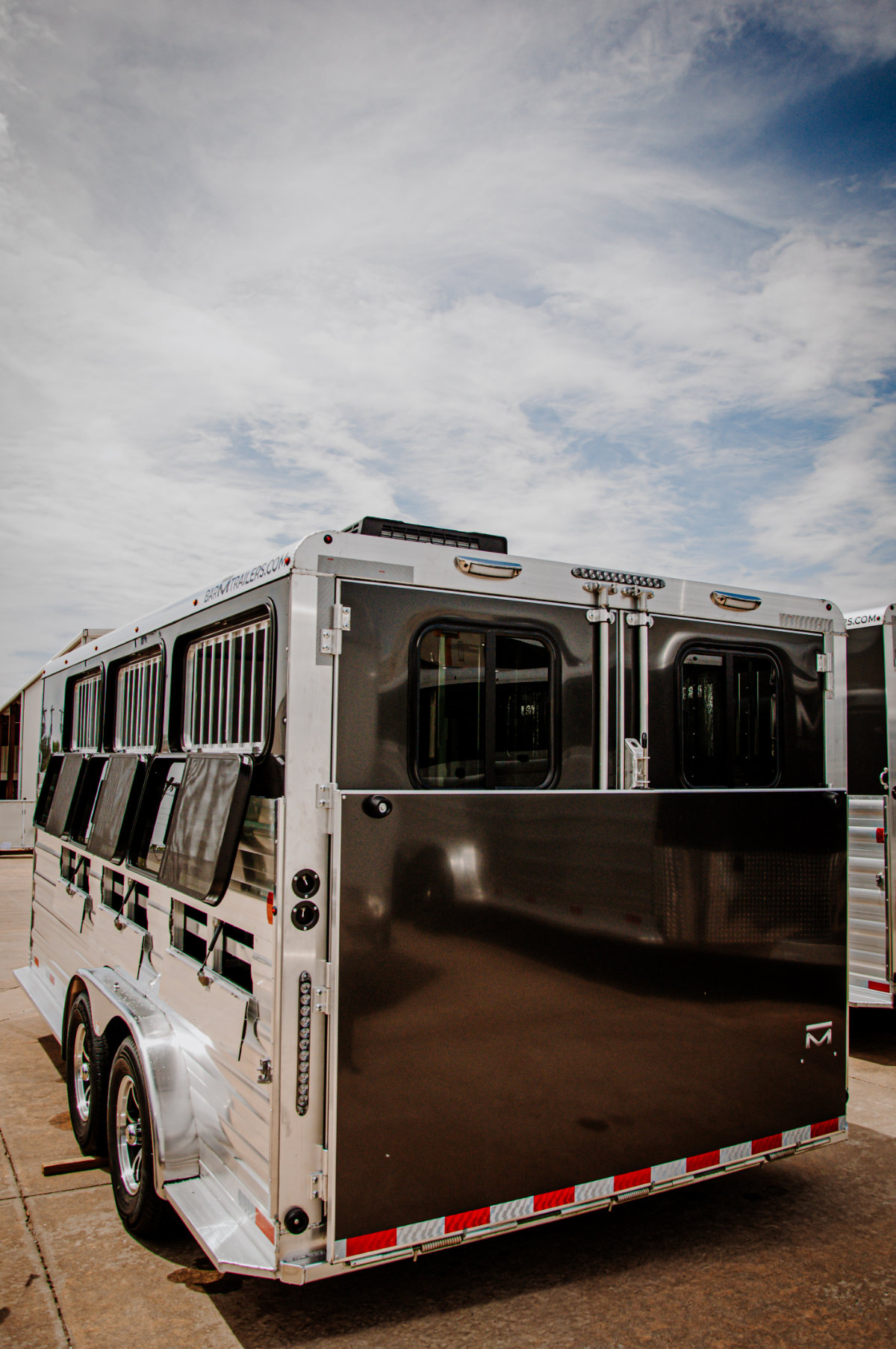

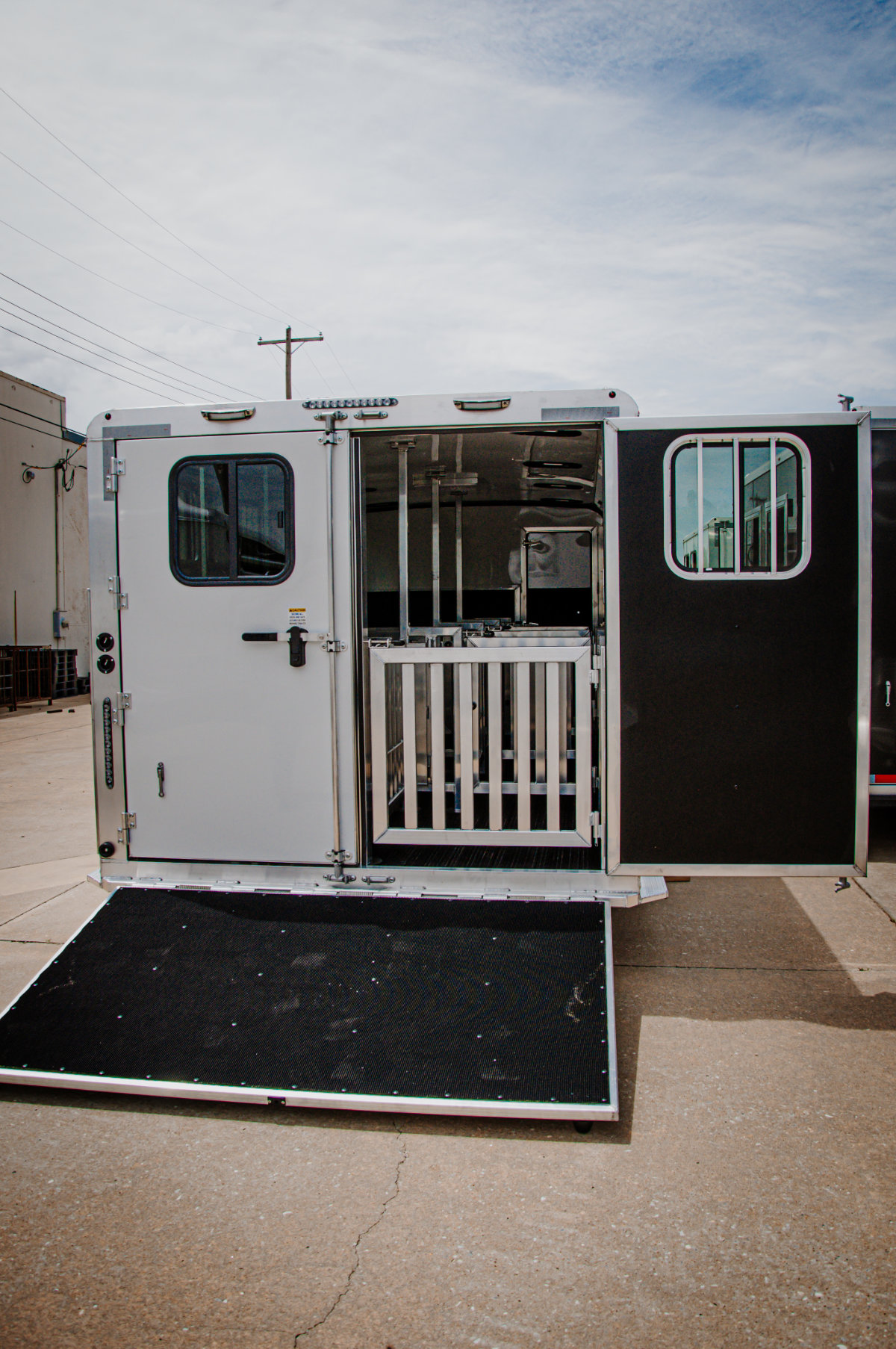

| Rear doors to be 50/50 with sliding window, cam locks and ramp behind |
Pen area standards |
|---|
| (2) 110 volt double plugs located in cove on street side |

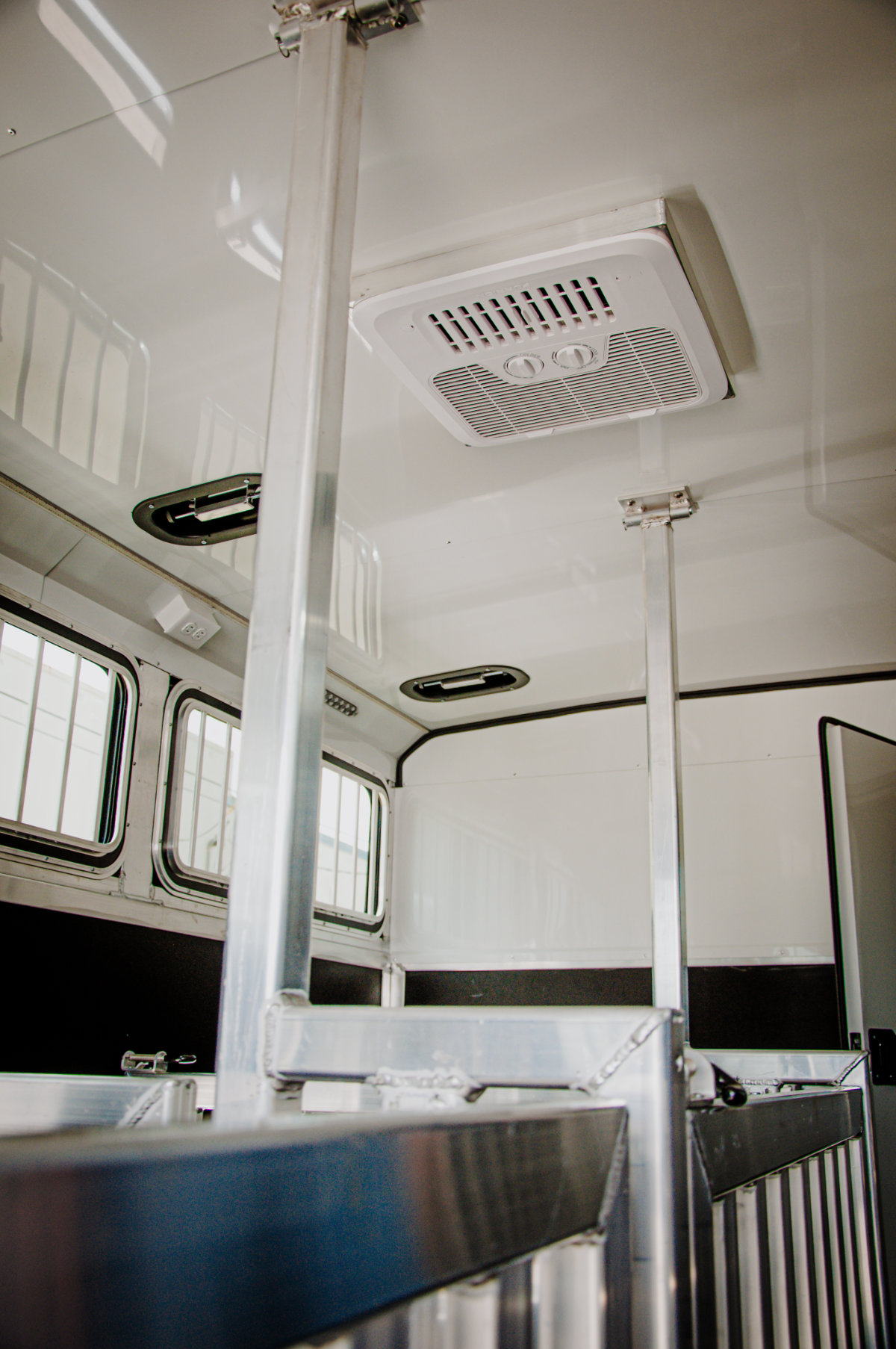

| 15,000 BTU air condition unit |
| 6 or 8 pen units available |
| 6 pen equipped with 32” suicide style escape door with drop feed window with bars, camper |
| 8 pen equipped with a full height side ramp on front pen curb side |
| All double walled areas to be insulated |
| Both rear doors have full height poly liner on inside |
| Center panels equipped with feeder rail |

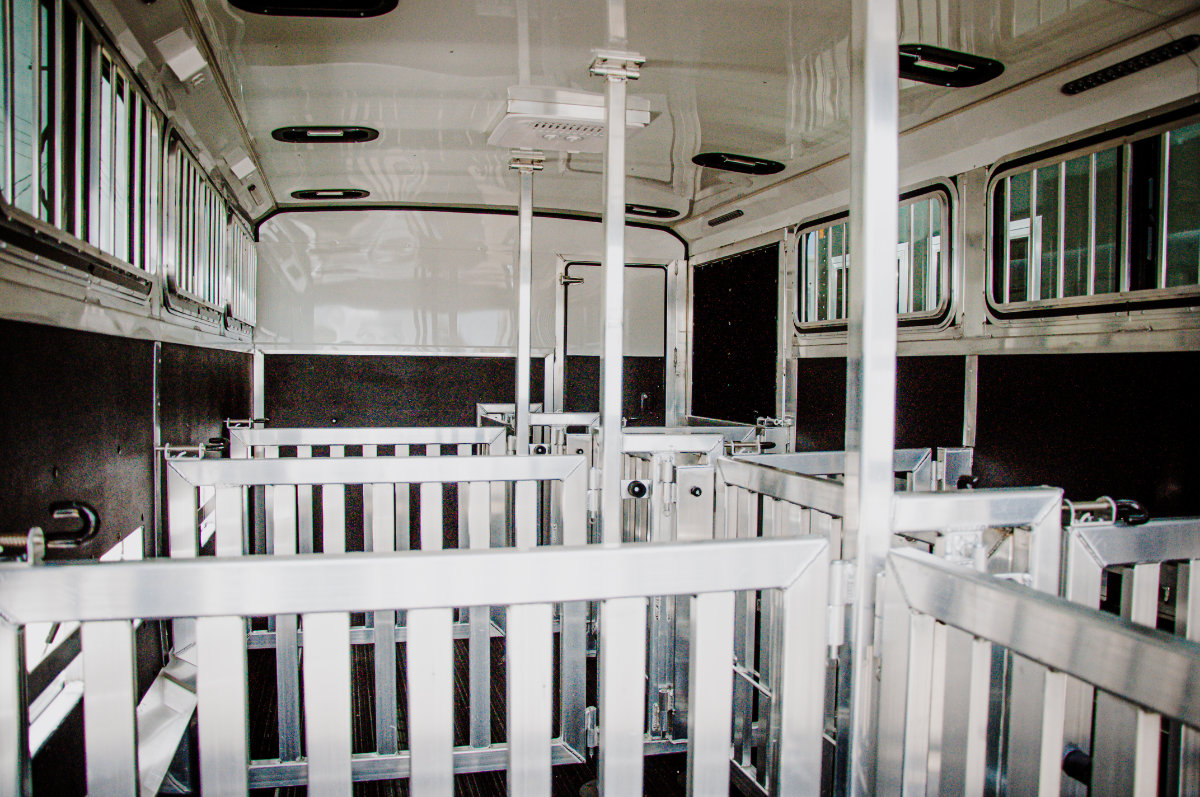

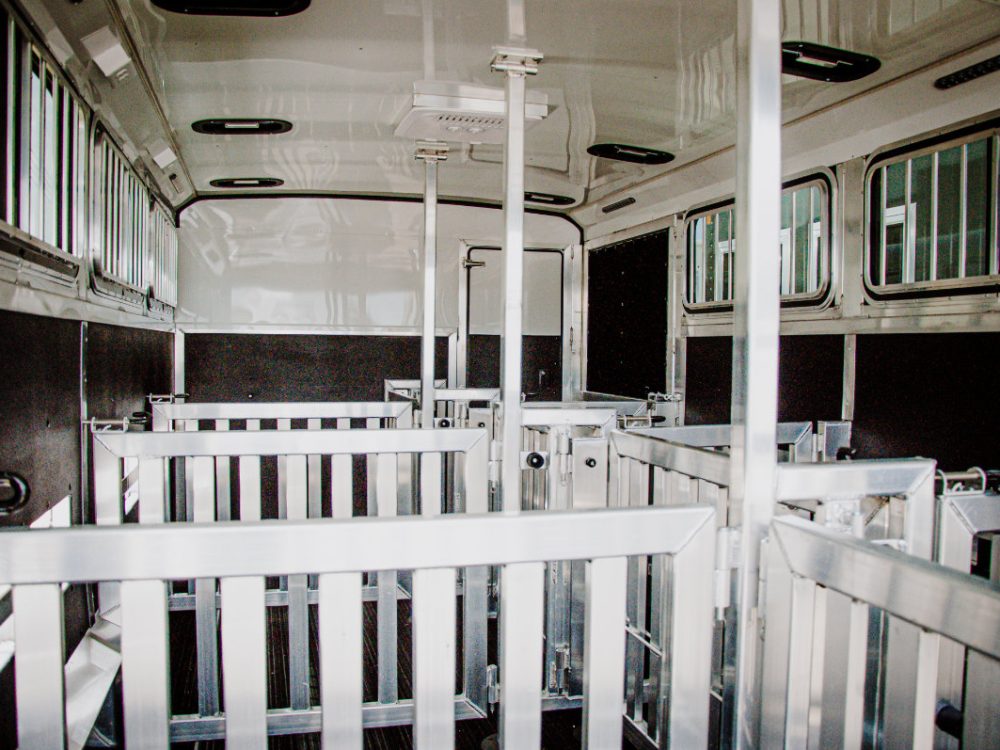

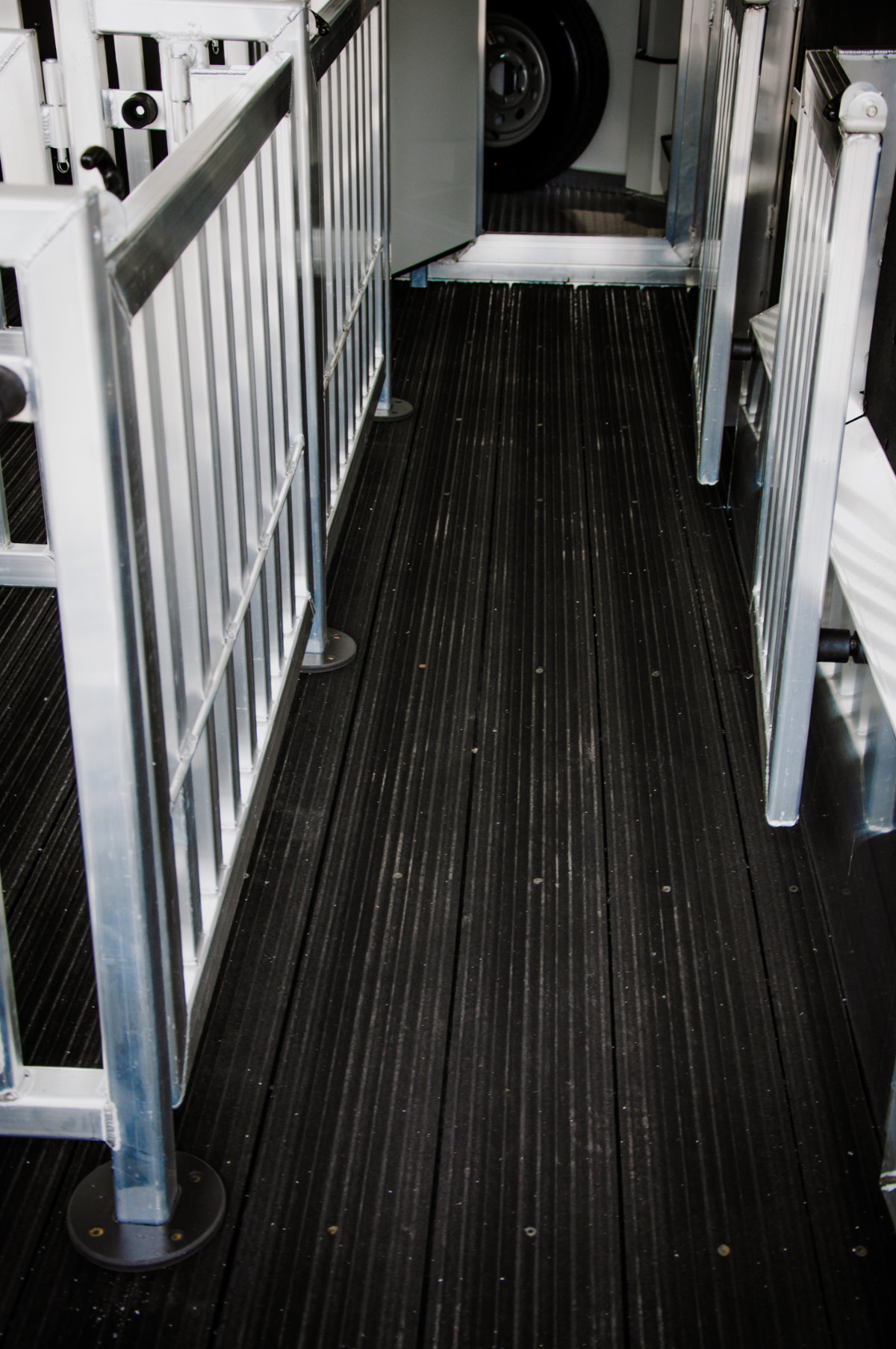

| Convertible pen system 50/50 or 60/40 with 1 ½ x 2 ½ heavy duty aluminum frame |
| Cove covers to enclose top rail both sides full length |

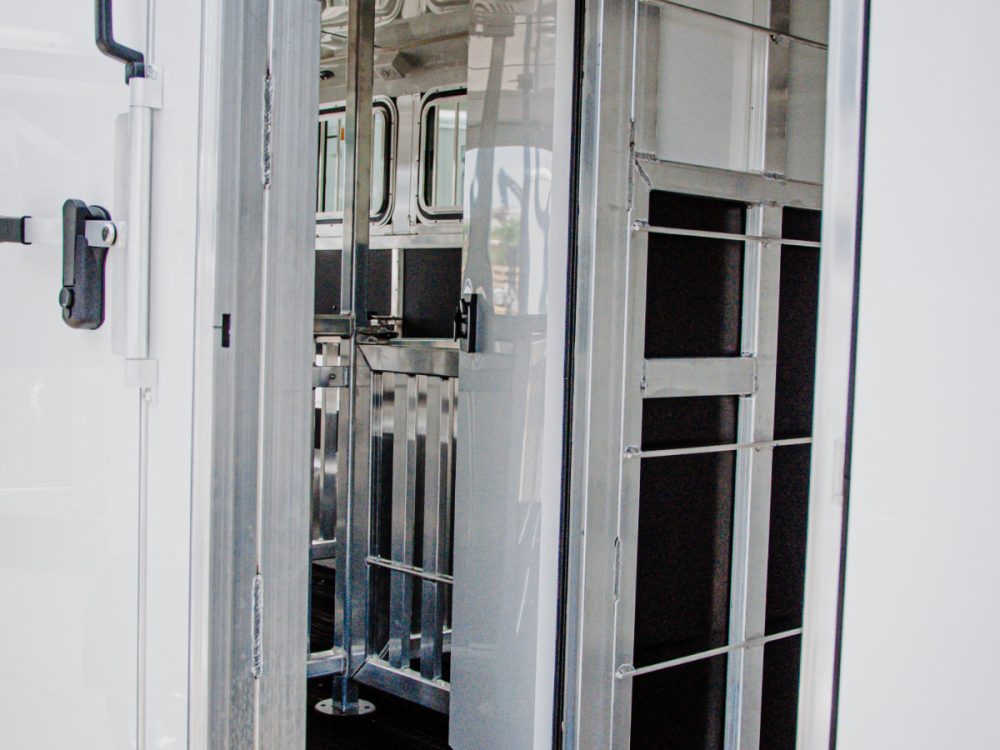

| Custom built walk through door between stock area and tack room |

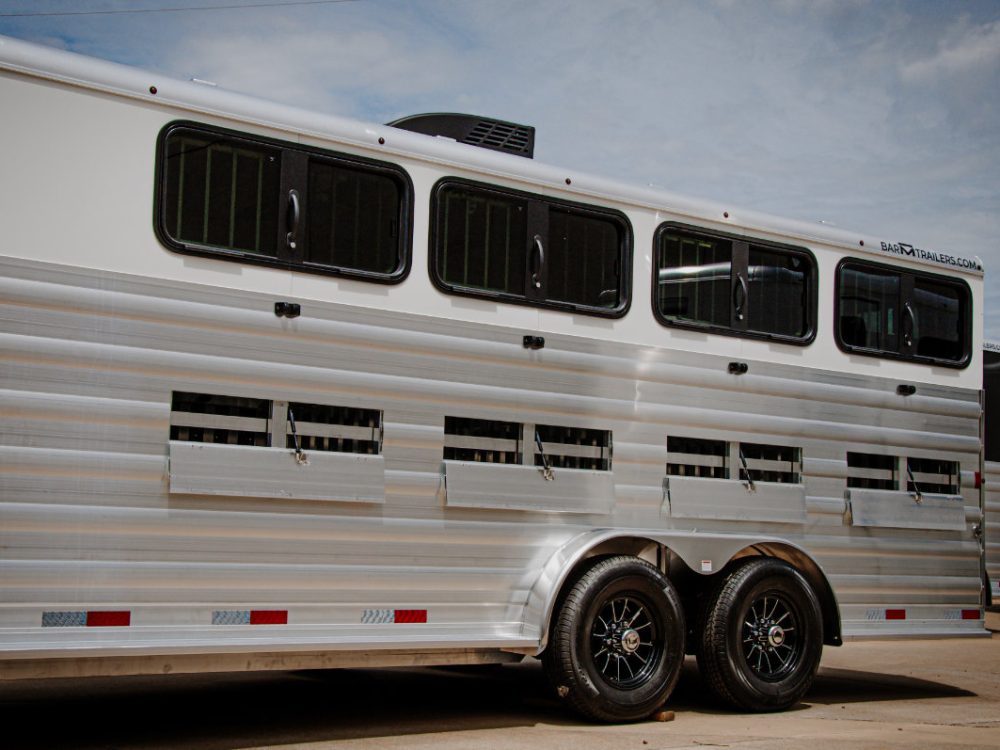

| Drop Down Feed window with bars located at each pen |
| High density poly liner 48” high on side wall |
| Interior light to have recessed outside switches |
| Interior lights full length LED strip light both sides. (std Blue Color) |
| Roof to be lined with white aluminum and insulated |
| Slim-line LED clear interior light on curb side cove |
| Suicide escape door (6 Pen models only) |

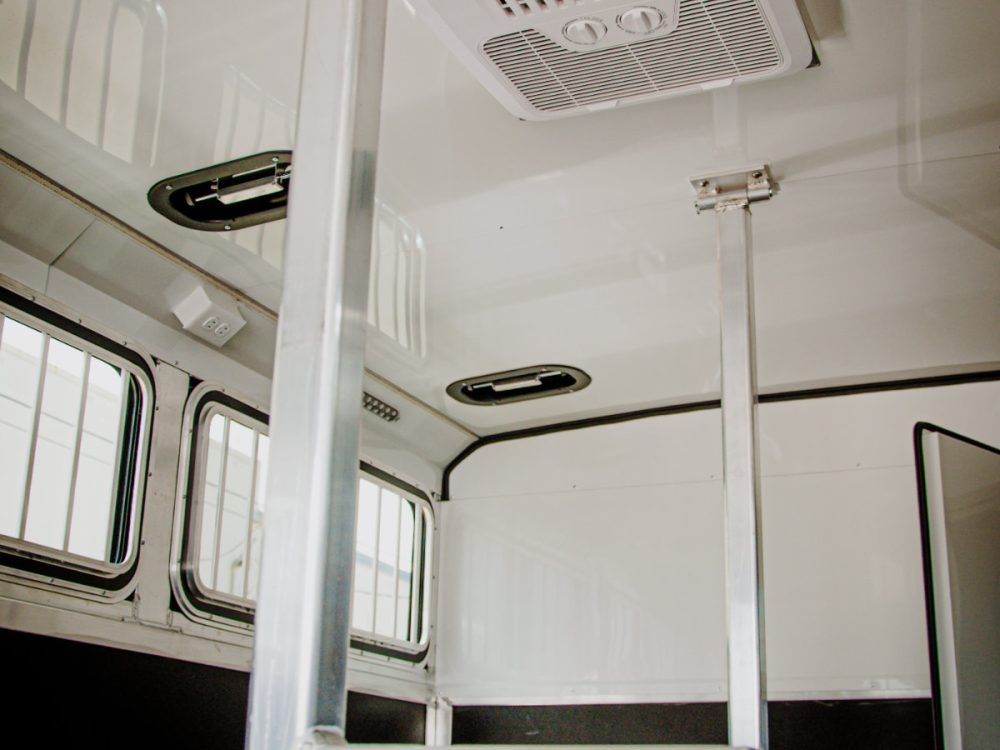

| Two-way roof vents, one per pen |
| Wall from stock area to tack area to have white aluminum sheet above poly liner |
Popular Options
Popular options |
|---|
| Add a 12 Volt deep cycle battery with charging diode and battery box that is mounted in the dressing room. |
| Add a 12 Volt electric fan (price per fan, max total of 6) |
| Add a heat strip to the air conditioner |
| Add an electric jack with 12 Volt battery and Battery box |
| Black skin upgrade from white skin |
| Change the escape door to a side ramp (6-Pen model) |
| Change the side ramp to an escape door (8-Pen model) |
| Charcoal skin upgrade from white skin |
| Delete the A/C (Leave in the framing and wiring for A/C prep) |
| Make all exit gates taller |
Warranty
BAR‑M Limited Warranty
At BAR‑M, we take pride in building trailers that are made to last. That’s why we back every trailer with a 7-Year Structural Warranty and additional coverage on BAR‑M manufactured components. Our warranty reflects our commitment to quality, craftsmanship, and customer satisfaction.
Warranty Highlights
- 7-Year Structural Warranty
- 1-Year Coverage on BAR‑M Manufactured Components
- 1-Year Coverage on Maintenance Items
- Warranty Registration Required Within 60 Days of Purchase
For complete coverage details, exclusions, limitations, and warranty procedures, please download and review the full BAR‑M Limited Warranty document.
