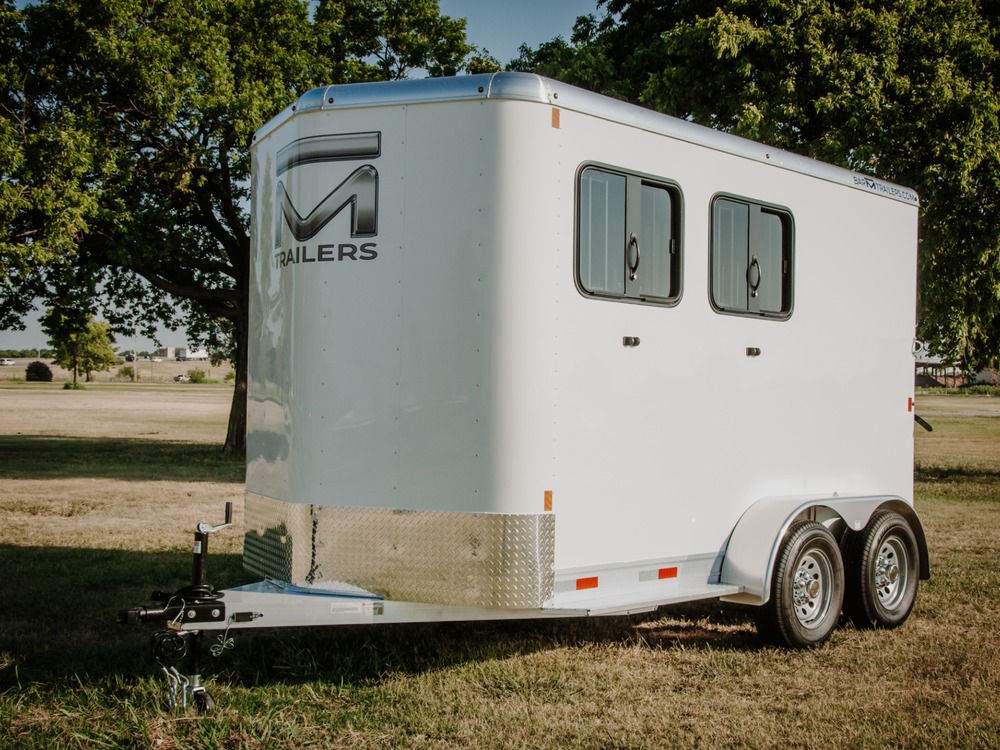

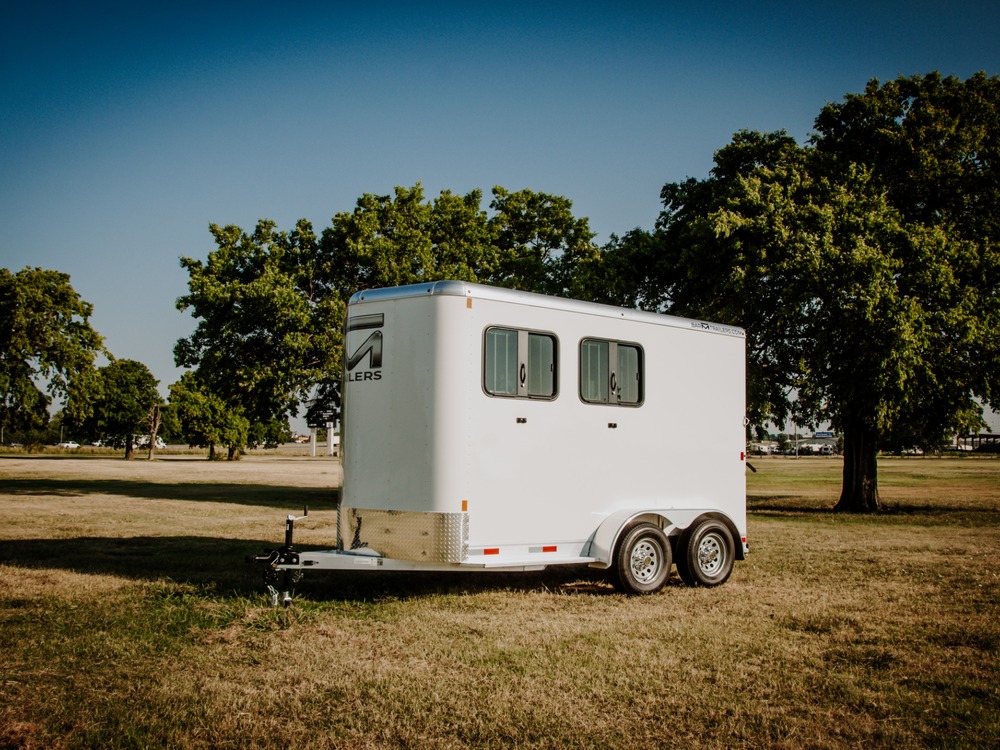

SS-20-W – Two Horse Window Trailer

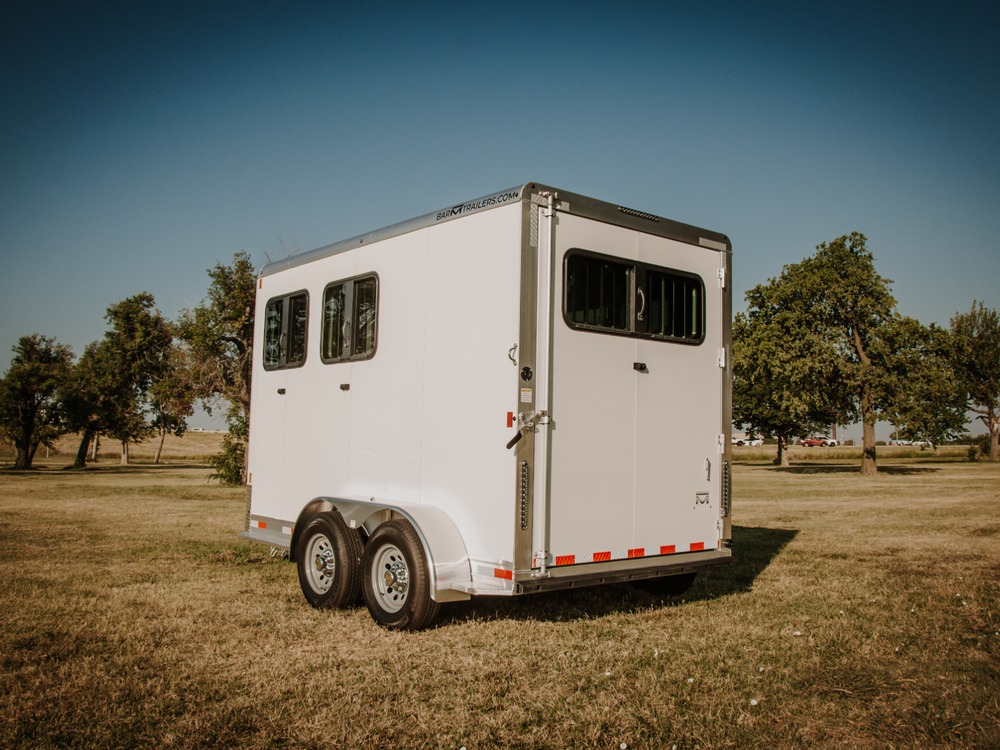

The Bar-M SS-20-W is a premium two-horse slant load trailer designed for horse owners who want exceptional ventilation, visibility, and comfort while on the road. Featuring drop-down feed doors on the head side and large sliding windows on the butt side, the SS-20-W creates a bright, open environment that promotes airflow and helps keep horses comfortable throughout every trip.
Built with an all-aluminum frame and structure, the SS-20-W offers lightweight towing, corrosion resistance, and years of dependable performance. The spacious two-horse layout includes a sturdy horse divider, HDPE impact wall liners, rubber flooring, interior horse ties, and LED stall lighting to provide a safe and comfortable ride for both horse and rider.
A lockable dressing room offers convenient storage for tack and equipment, while the combination of feed doors and large windows provides easy access to horses and outstanding natural ventilation. Whether you’re headed to a horse show, trail ride, jackpot, or weekend event, the SS-20-W delivers the durability, functionality, and horse comfort that Bar-M owners expect.
Key Features
- Two-horse slant load design

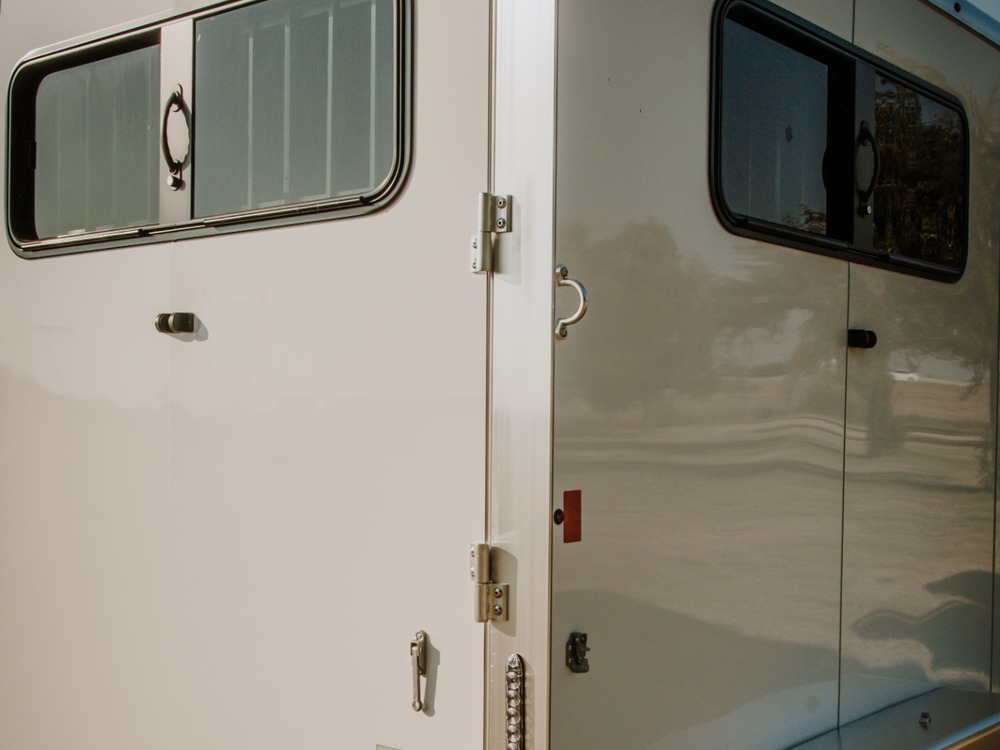

- Drop-down feed doors on the head side

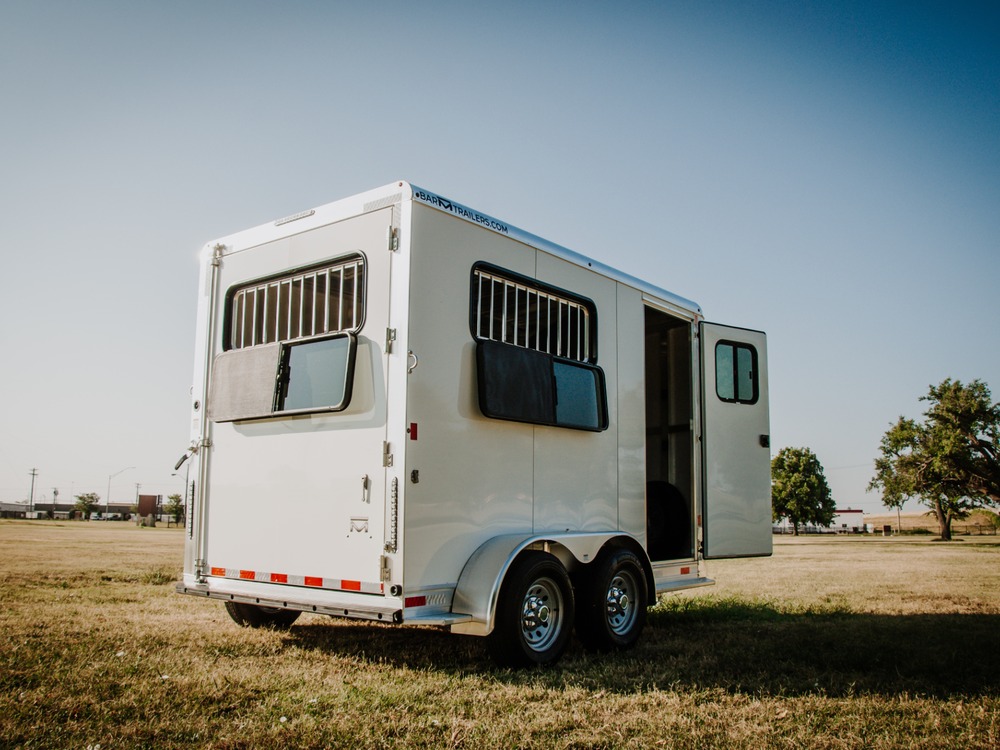

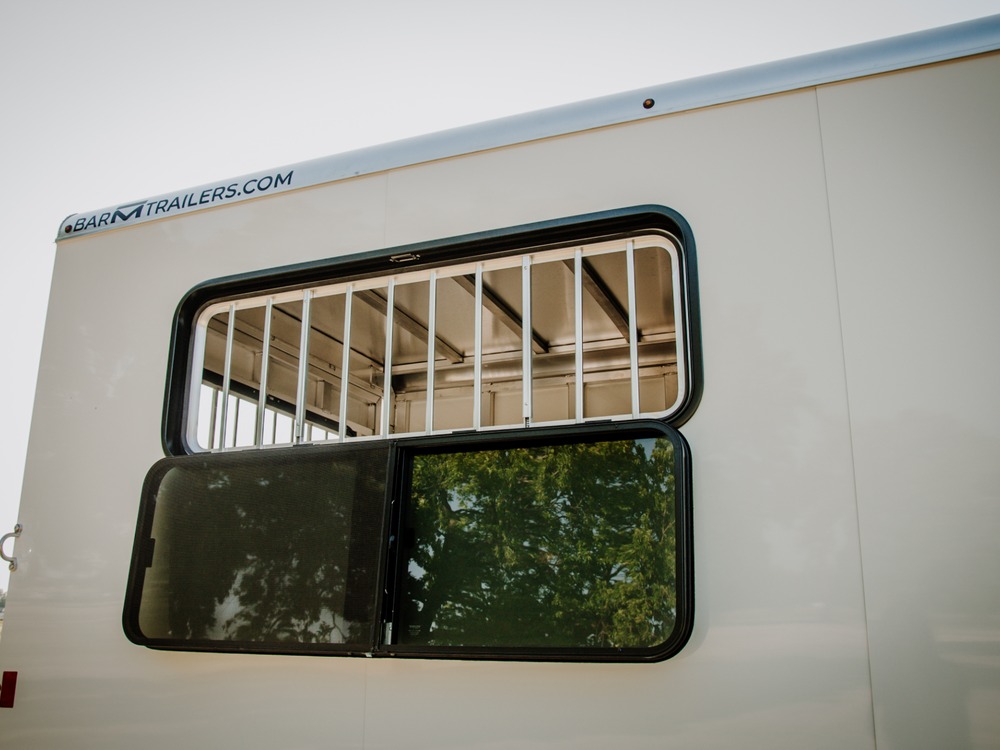

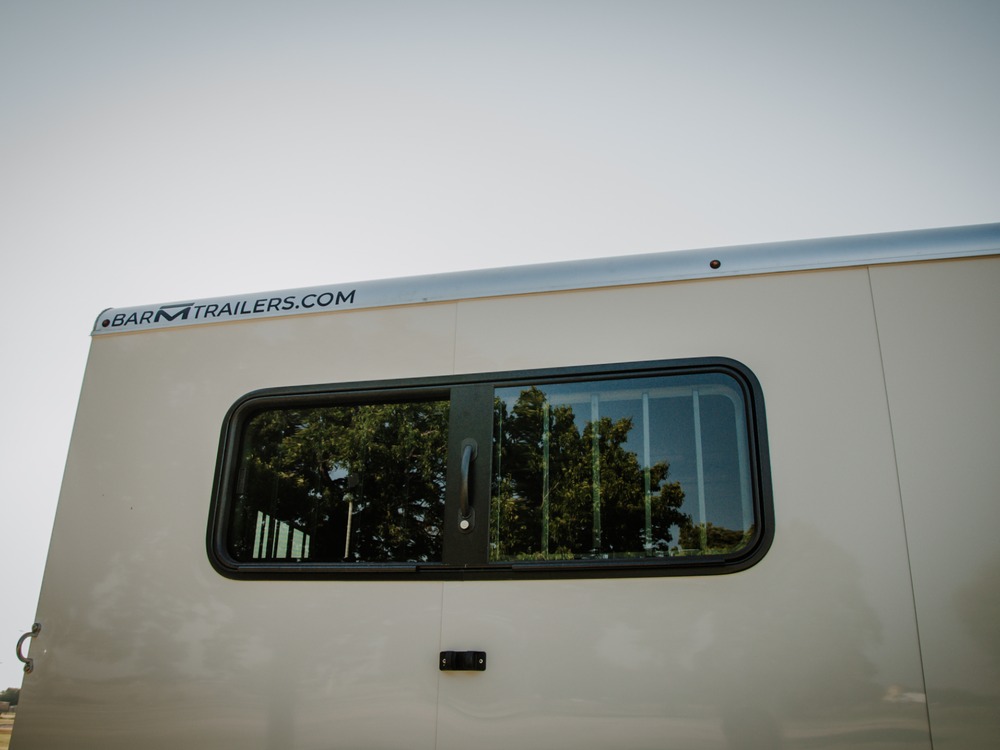

- Large sliding windows on the butt side
- Lightweight all-aluminum frame and structure
- Dexter axles with electric brakes
- 7’6″ interior height
- HDPE impact wall liners
- Rubber flooring
- Individual horse divider
- Interior and exterior horse ties
- LED stall lighting

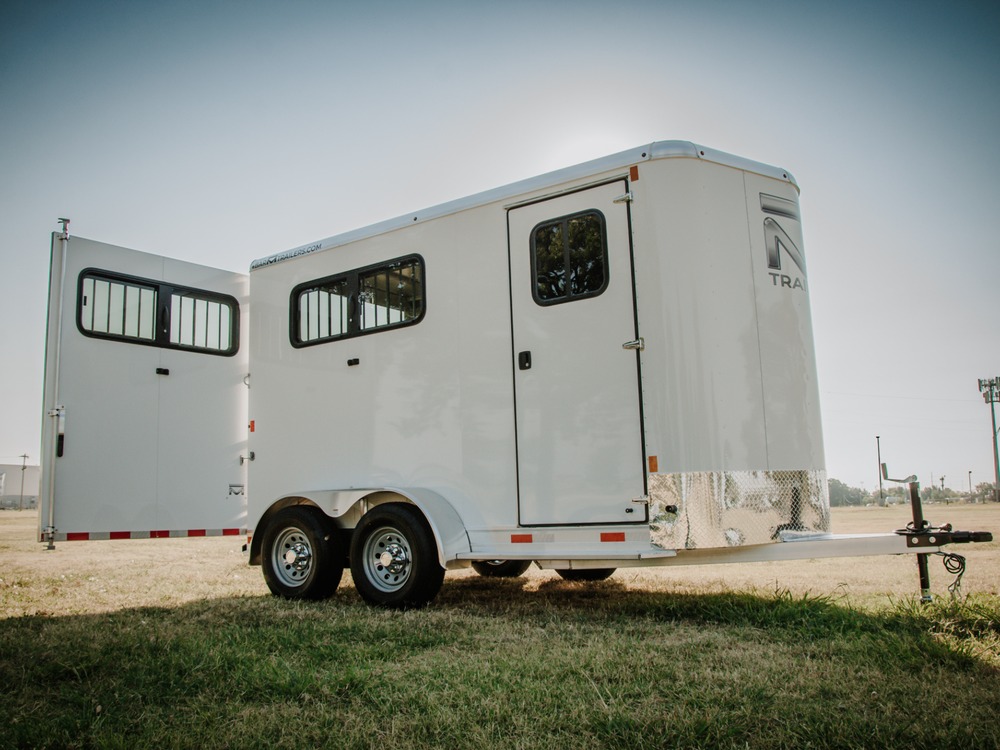

- Lockable dressing room with camper-style entry door
- One-piece seamless aluminum roof

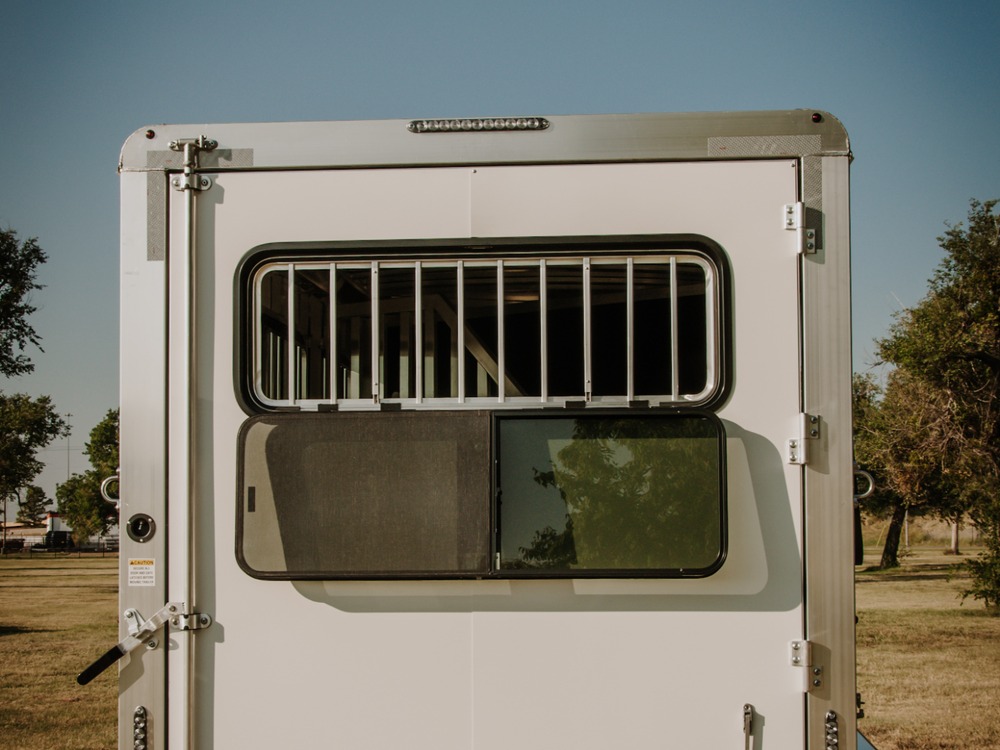

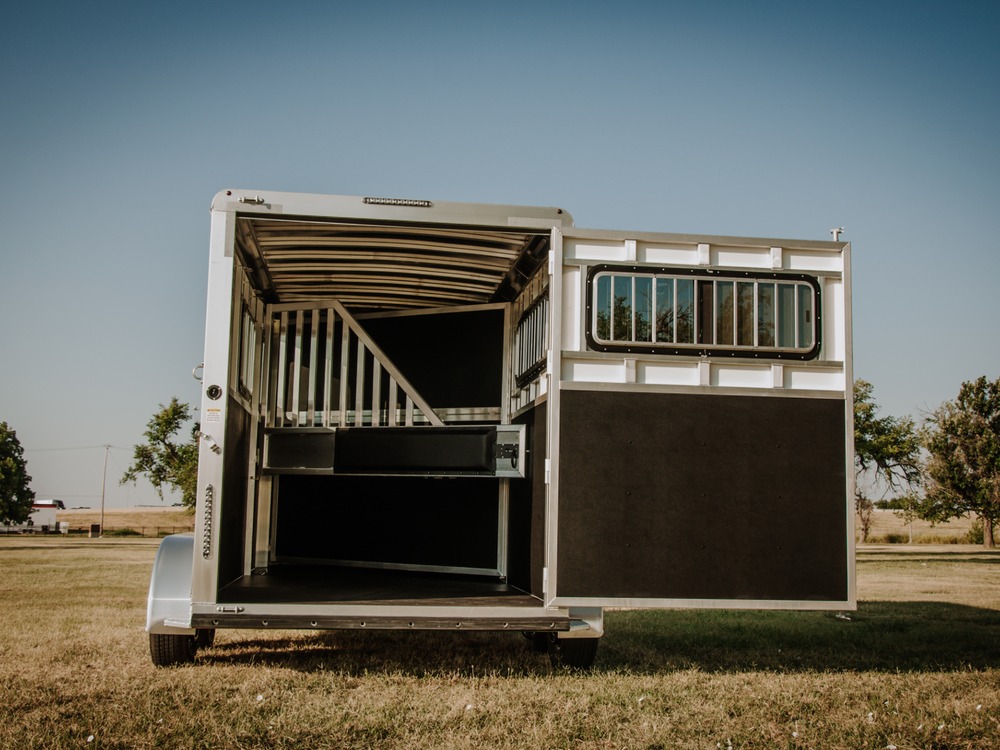

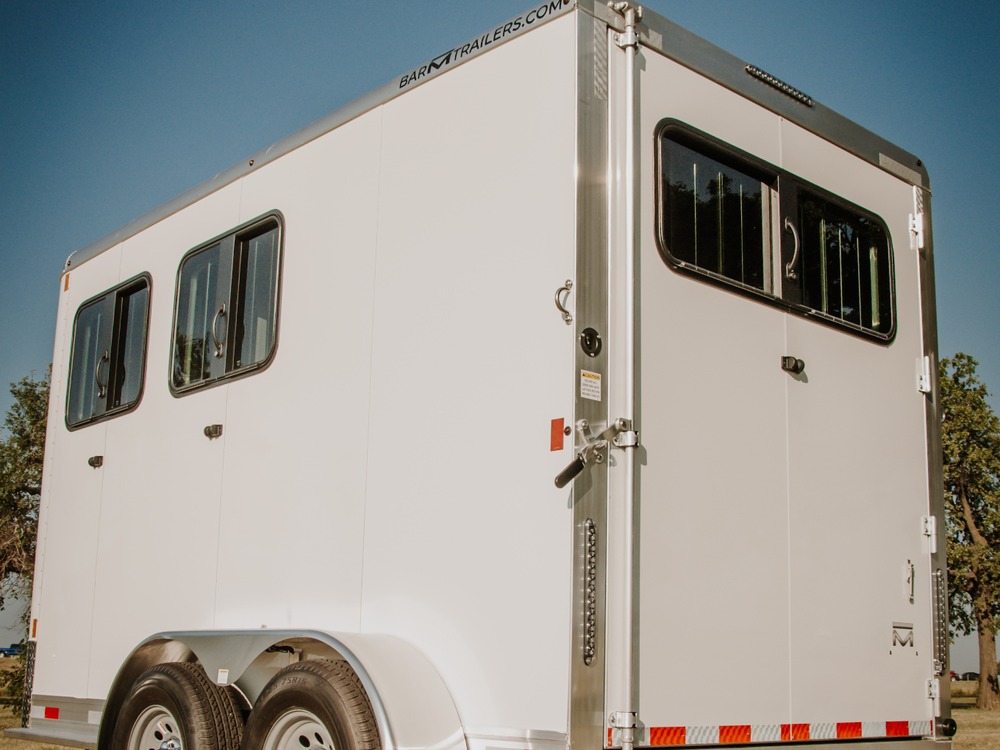

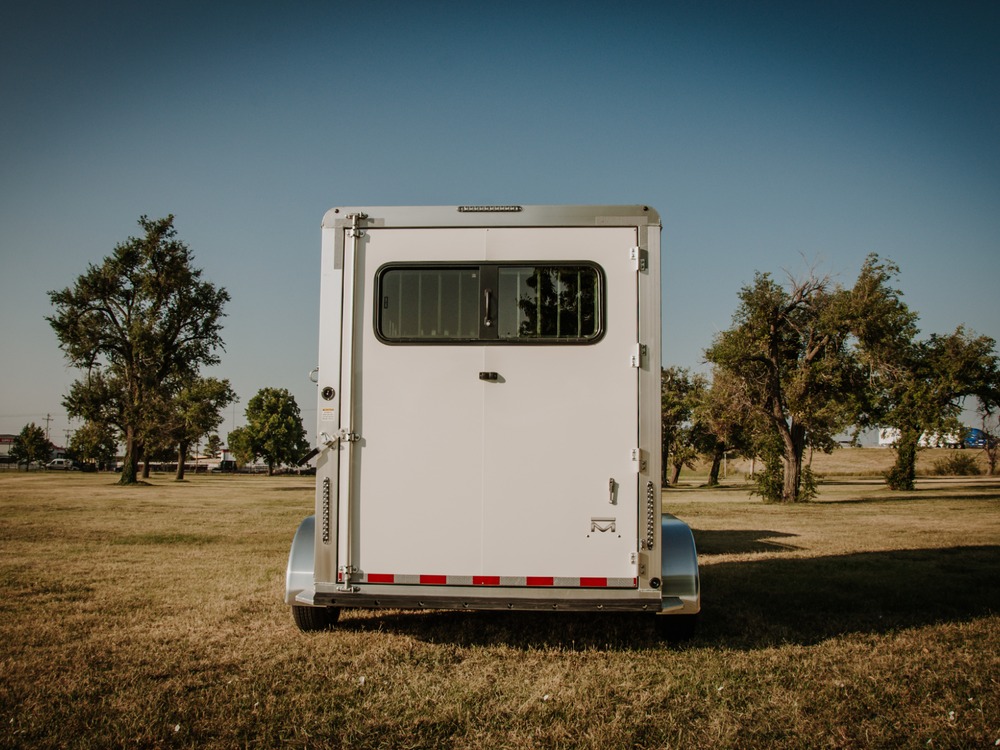

- Rear swing door with large window
- Excellent airflow, visibility, and horse comfort
The SS-20-W is an ideal choice for horse owners who want a bright, well-ventilated trailer with premium comfort features. By combining drop-down feed doors with large sliding windows, the SS-20-W provides exceptional airflow, natural light, and dependable Bar-M quality in a practical two-horse package.

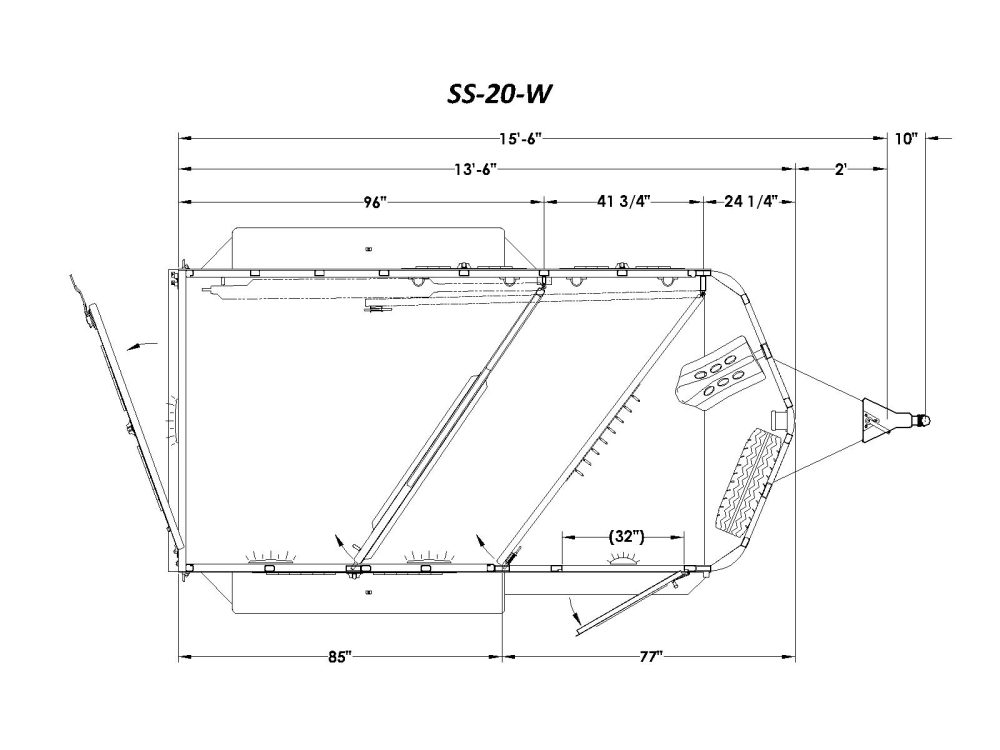

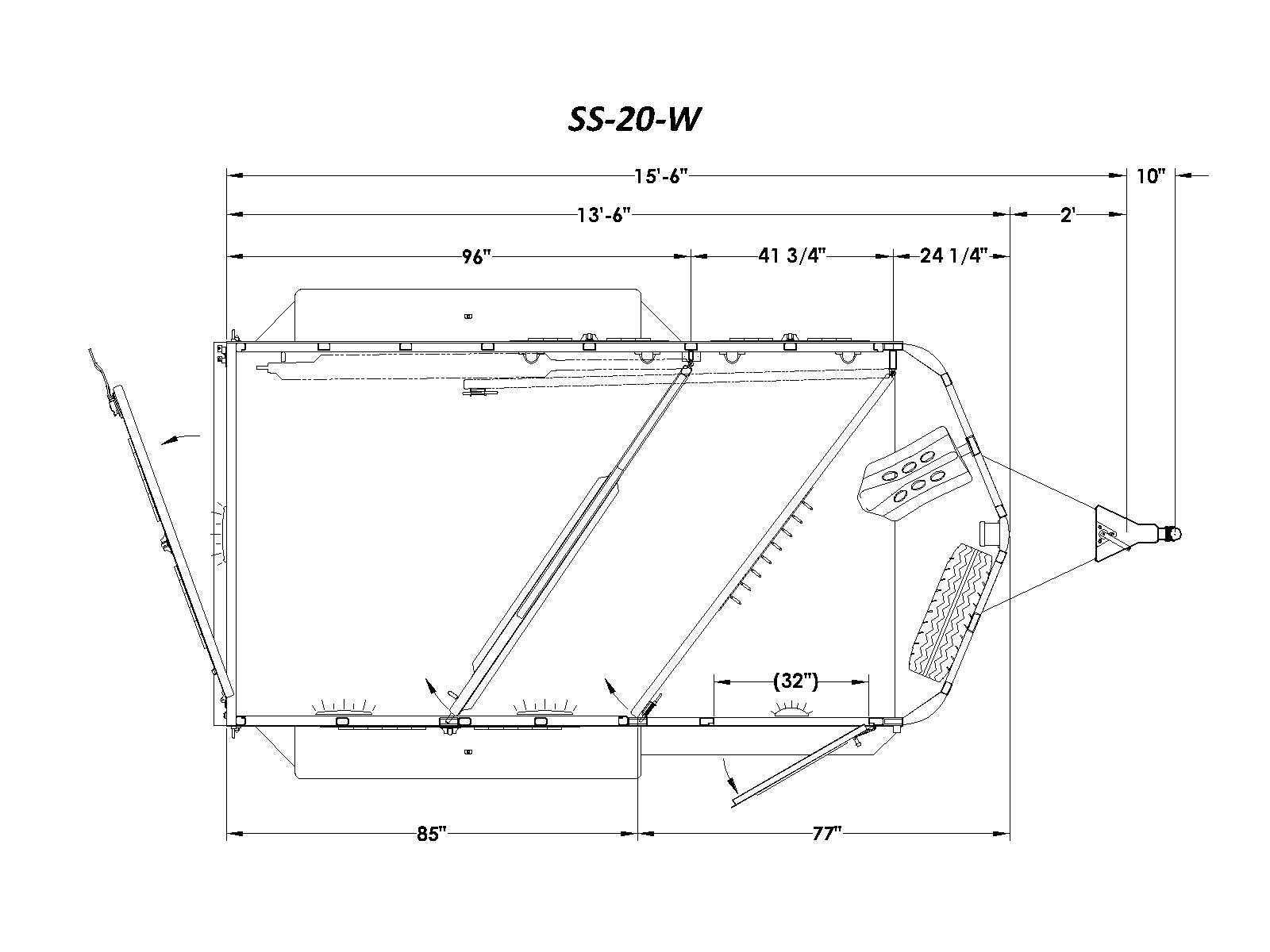

Floorplan

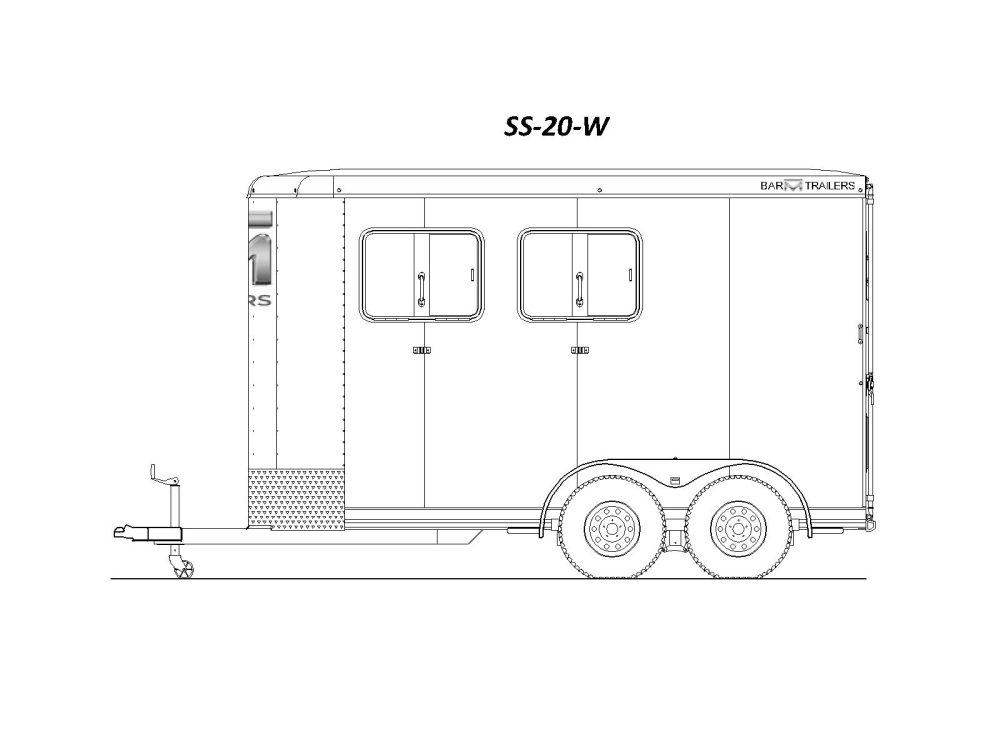

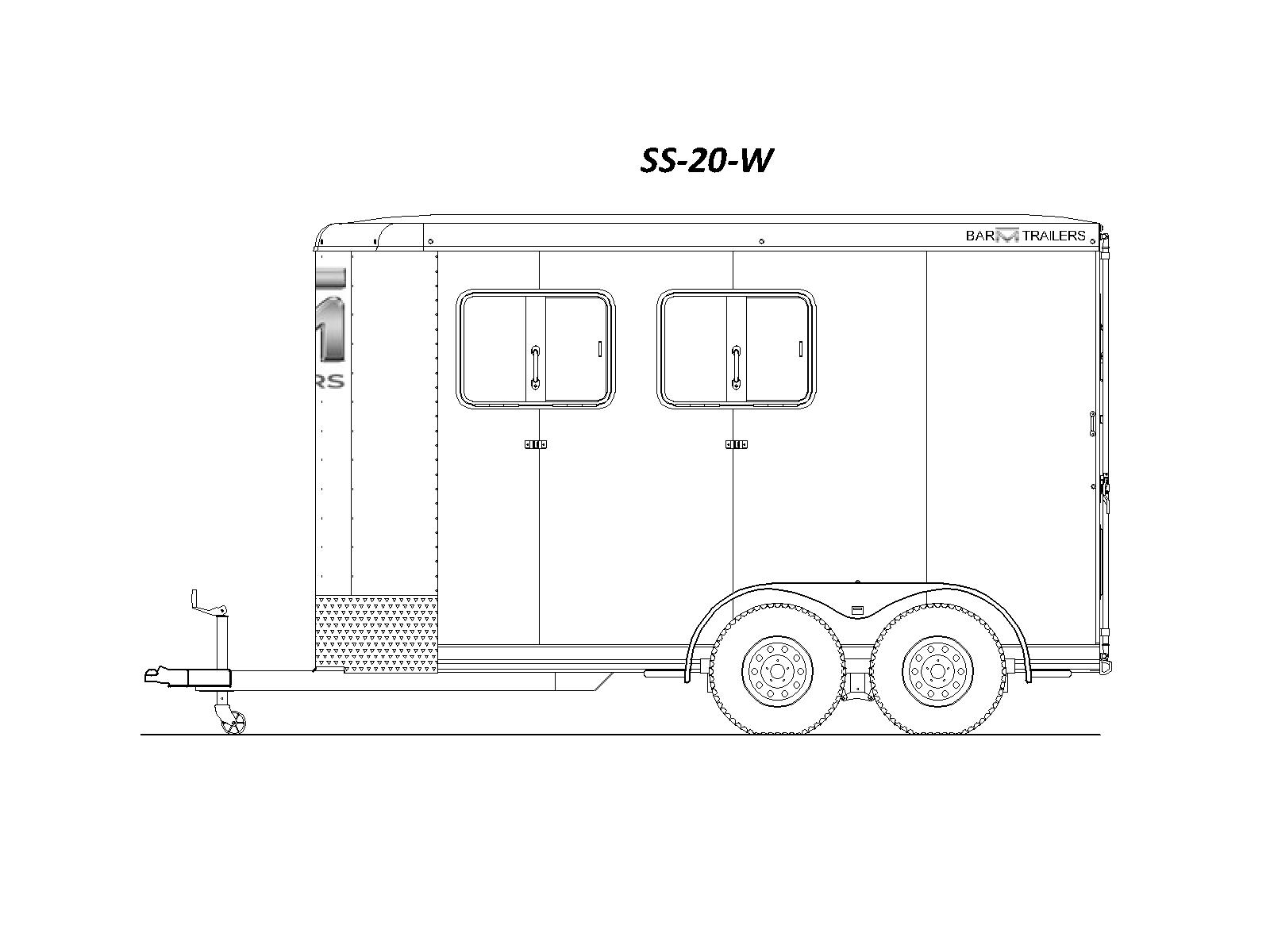

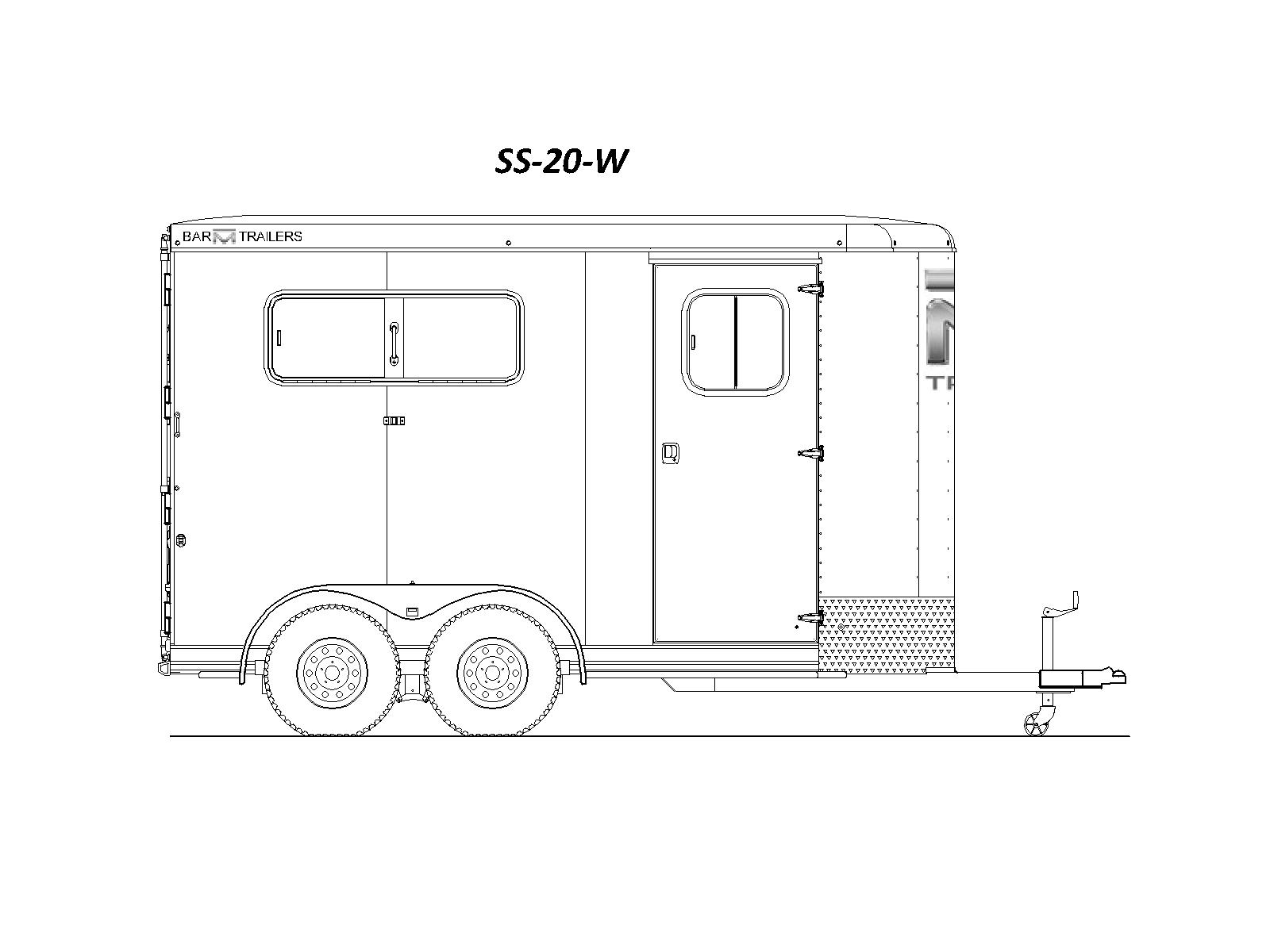

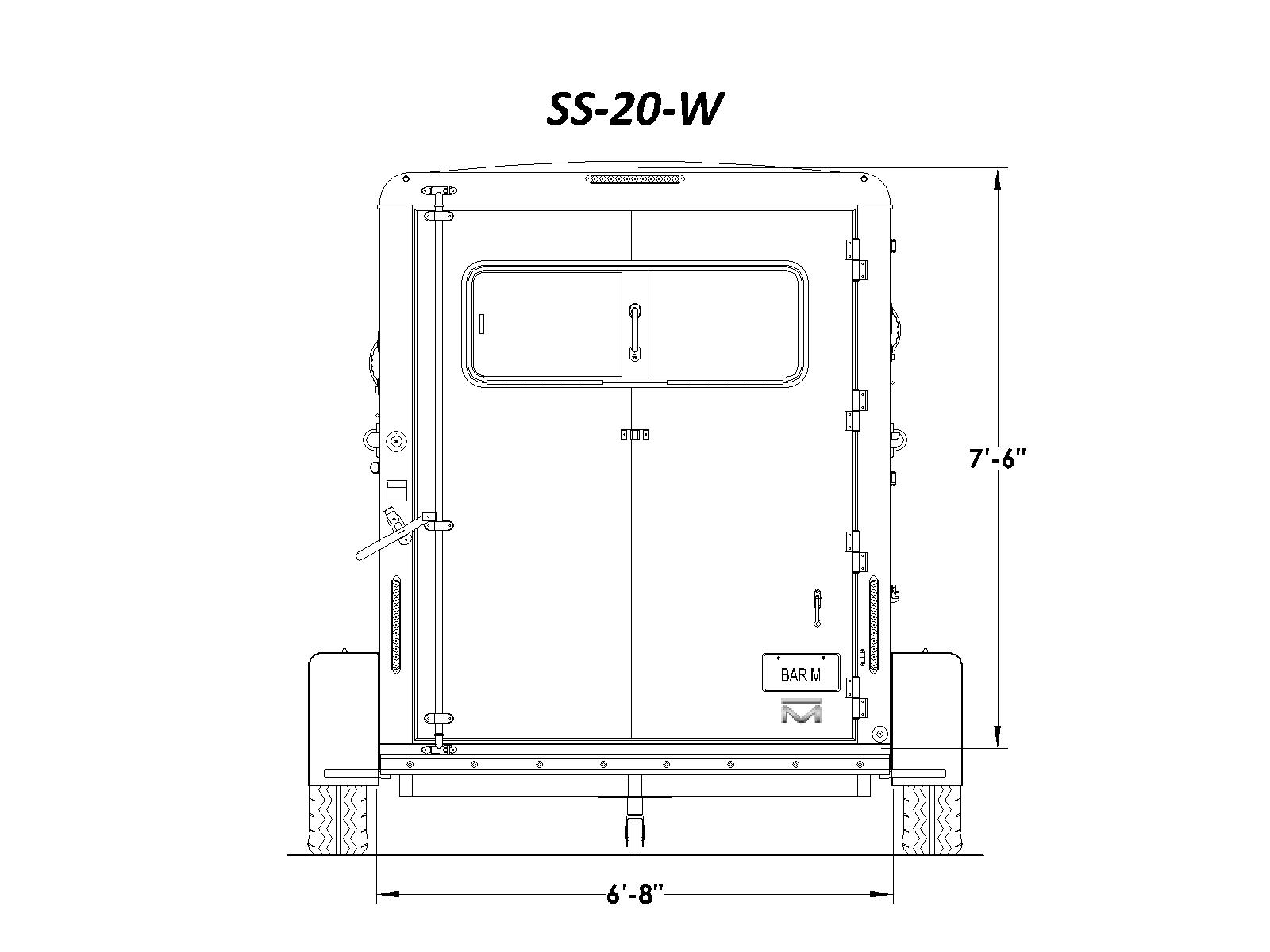

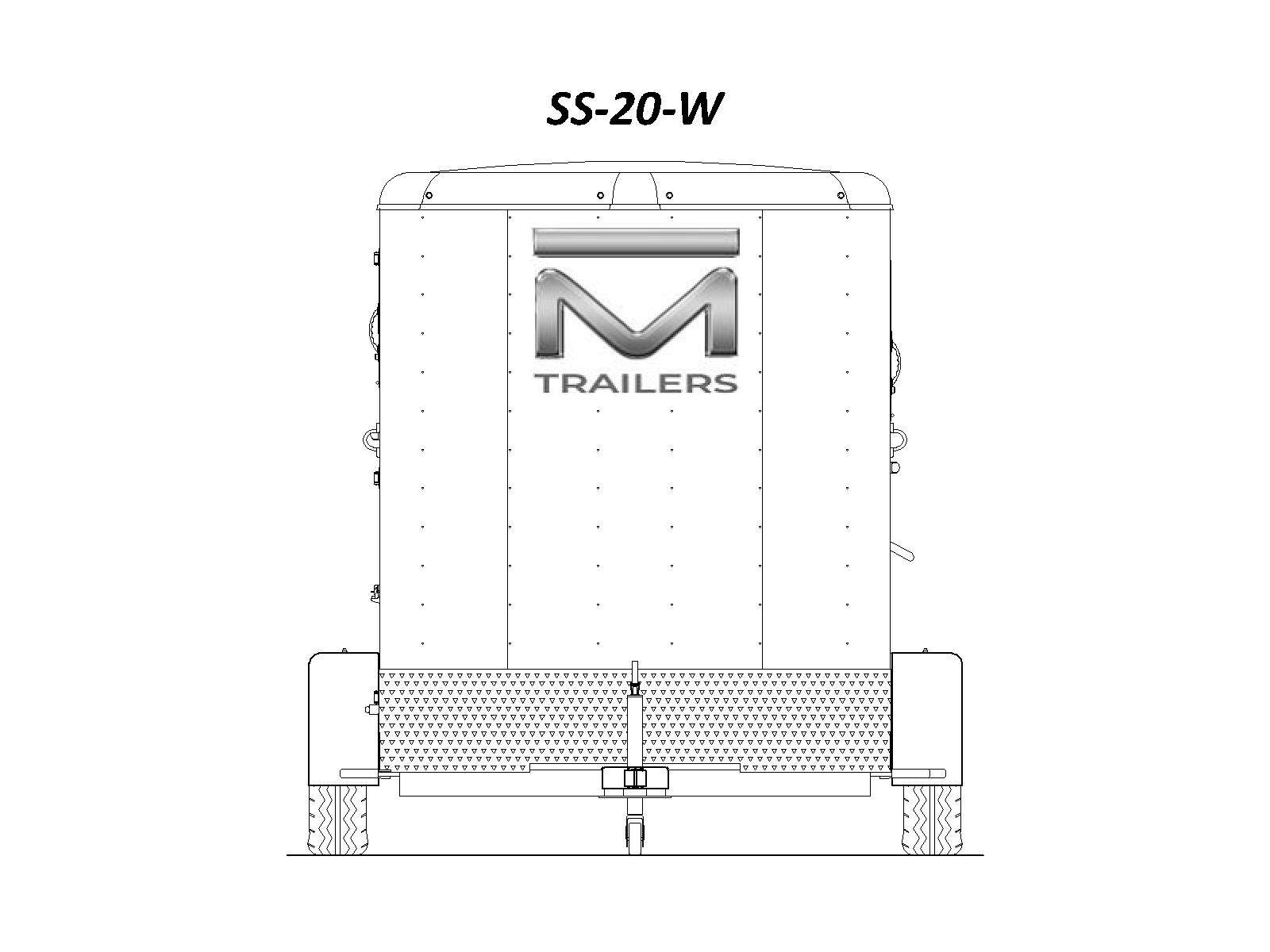

Spec Drawings
Standards
Frame and structure standards. |
|---|
| (4) Steel wheels & (1) steel wheel for spare (15" LR D). Spare tire installed in the dressing room (2 horse model) |
| (4) Steel wheels & (1) steel wheel for spare (15" LR E). Spare tire installed in the dressing room (3 horse model) |
| 2x6 Pressure treated wood floor with rubber mats |
| Aluminum frame |
| Aluminum side wall posts and aluminum roof bows. Side wall posts are 1.5" deep |
| Dexter spring axles (3,500lb is standard on 2 horse and 5,200lb on 3 horse) |
| Electric brakes on all axles |
| Exterior aluminum skin (.040, white is standard). Nose sheets are riveted |
| Flooring cross members (commonly on 12" centers). |
| Heavy Duty 2 5/16" coupler with safety chains |
| One-piece, seamless aluminum roof |
| Triple tube tongue structure |
| Unit to be 7' 6" tall |
Horse area interior standards |
|---|
| (1) Horse divider between each stall |
| (1) Slim-line LED stall light per stall installed in cove with exertional switch |
| (2) Horse ties per stall inside of horse area |

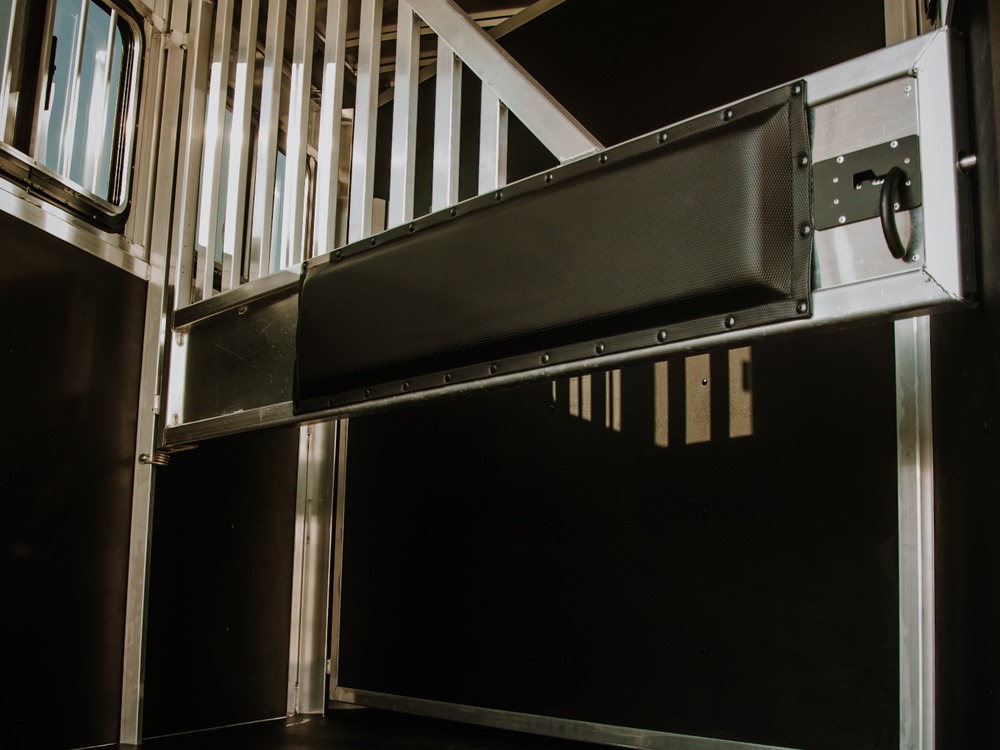

| Air flow dividers with stall pads on each side or every divider |
| HDPE smooth black high impact wall liner on rear side of swing wall to the dressing room |
| HDPE smooth black high impact wall liner on road side and curb side of horse area |
| Stall spacing set at 42" between stalls |
| Swinging partition between front horse stall and dressing room |
Exterior standards |
|---|
| (1) Door tie back on the rear swing door and (1) on the side dressing room door |
| (1) Exterior horse tie per stall |
| (15) Upper clearance lights. (5) on rear, (3) on road & curb side top rail and (4) on front nose top rail |
| (2) Amber reflectors. One installed on road side front and one on curb side front, mid way up |
| (2) Amber reflectors. One installed on road side nose and one on curb side nose, just below top rail |
| (2) Lower clearance lights (1) on curb side & (1) on road side just forward of rear hoop |
| (2) Lower clearance lights. Down low in stone guard (1) on curb side and (1) on road side |
| (2) Red reflectors. One installed on road side rear and one on curb side rear, mid way up. |
| Bar-M logo installed on curb side dressing room door, down lower forward side of door |
| Bar-M logo on road side rear swinging door. Installed between the air gaps on the sheet |
| Bar-M logo on top-rail. Both road and curb sides near the rear of the trailer on the top rail (ES-SL ONLY) |
| Diamond plate nose guard on lower section of nose sheets |
| Drip cap above dressing room door made from aluminum angle |
| License plate light and mounting bolts |
| Red/White conspicuity tape along the entire bottom side of rear |
| Red/White conspicuity tape along the lower side of road and curb side walls (in sections) |
| Single set of LED turn/stop/tail-lights. Installed about 18" above horse area floor |
| Single swinging rear door with (4) hinges on curb side & single aluminum cam bar road side |
| Single swinging rear door with sheeted high and low air gaps (SS-SC and SS-STK) |
| Tear drop style aluminum fender with top side mounted fender light |
| Three piece skin colored nose sheet. Nose sheets are riveted at the seams and center posts |
| Top-wind jack installed at the trailer coupler. |
| White conspicuity tape in an "L" shape at the top of each corner of the rear swing door |

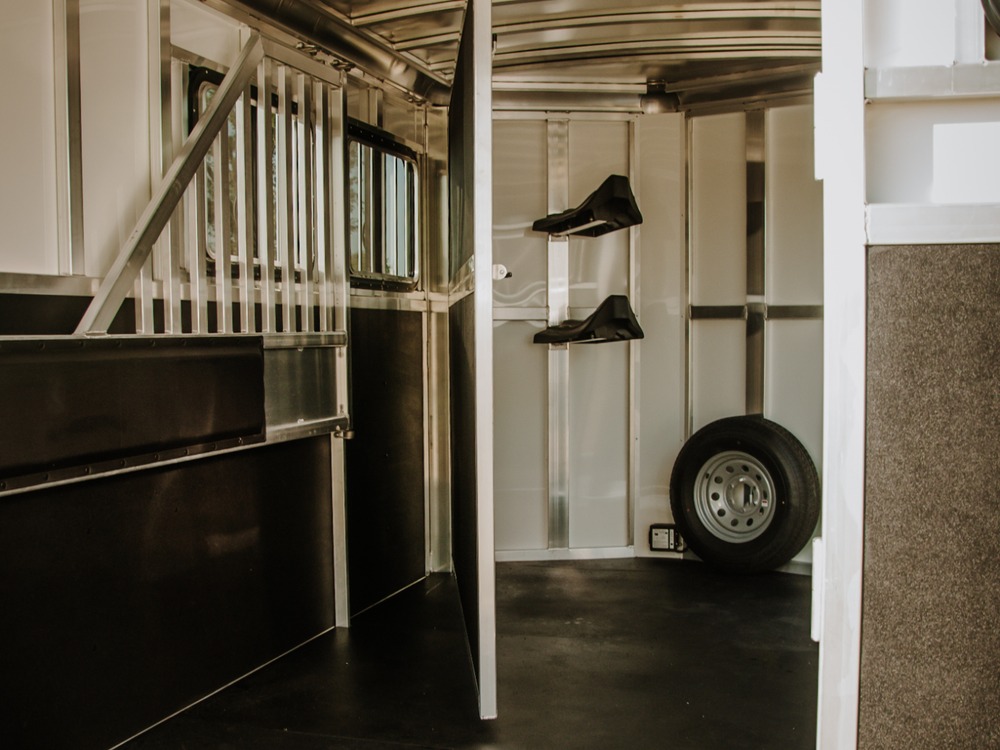

Dressing room |
|---|
| (1) Removable saddle rack with (1) saddle seat for every horse stall |
| (1) Set of eight bridle hooks. Installed up high, on the partition wall in tack room |
| Dome light in dressing room is on an individual switch and powered by the recharge line |
| Emergency break-away battery box with charger |
| Rubber on the dressing room floor |
| Spare tire is installed in the dressing room |
| Swinging Partition wall form horse area to dressing area |

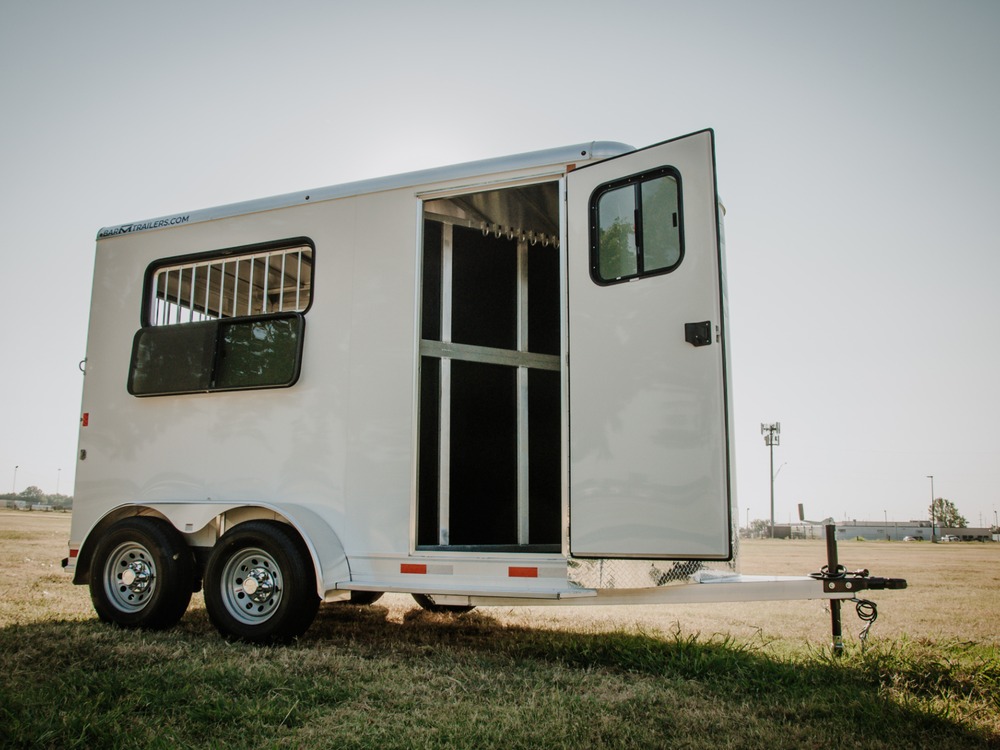

| 32" Lockable Camper door with 20x20 window to the dressing room |
| Fixed mounted camper step at the dressing room door |
Popular Options
Popular options |
|---|
| Add a lower divider on divider |
| Add a plexiglass to the air gaps (not available in the SS-W) |
| Add a ramp over rear doors |
| Add a rear load light with switch in the rear hoop |
| Add a two-way roof vent. Price is per vent. (Not available in SS-W) |
| Add an escape door in the first stall, head side (not available in SS-STK) |
| Black skin upgrade from white skin |
| Charcoal skin upgrade from white skin |
| Running boards |
| Upgrade the floor to Shelby flooring in lieu of pressure treated floor |
| Upgrade the standard 3,500lb sprung axles to 3,500lb torsion axles (2 Horse model only) |
| Upgrade the standard 5,200lb sprung axles to 5,200lb torsion axles (3 Horse models only) |
| Upgrade to aluminum wheels (does not include the spare) |
| Upgrade to an aluminum floor from a wood floor |
Warranty
BAR‑M Limited Warranty
At BAR‑M, we take pride in building trailers that are made to last. That’s why we back every trailer with a 7-Year Structural Warranty and additional coverage on BAR‑M manufactured components. Our warranty reflects our commitment to quality, craftsmanship, and customer satisfaction.
Warranty Highlights
- 7-Year Structural Warranty
- 1-Year Coverage on BAR‑M Manufactured Components
- 1-Year Coverage on Maintenance Items
- Warranty Registration Required Within 60 Days of Purchase
For complete coverage details, exclusions, limitations, and warranty procedures, please download and review the full BAR‑M Limited Warranty document.
